Chart C7C - EGR Valve Check (Non ECM Controlled)

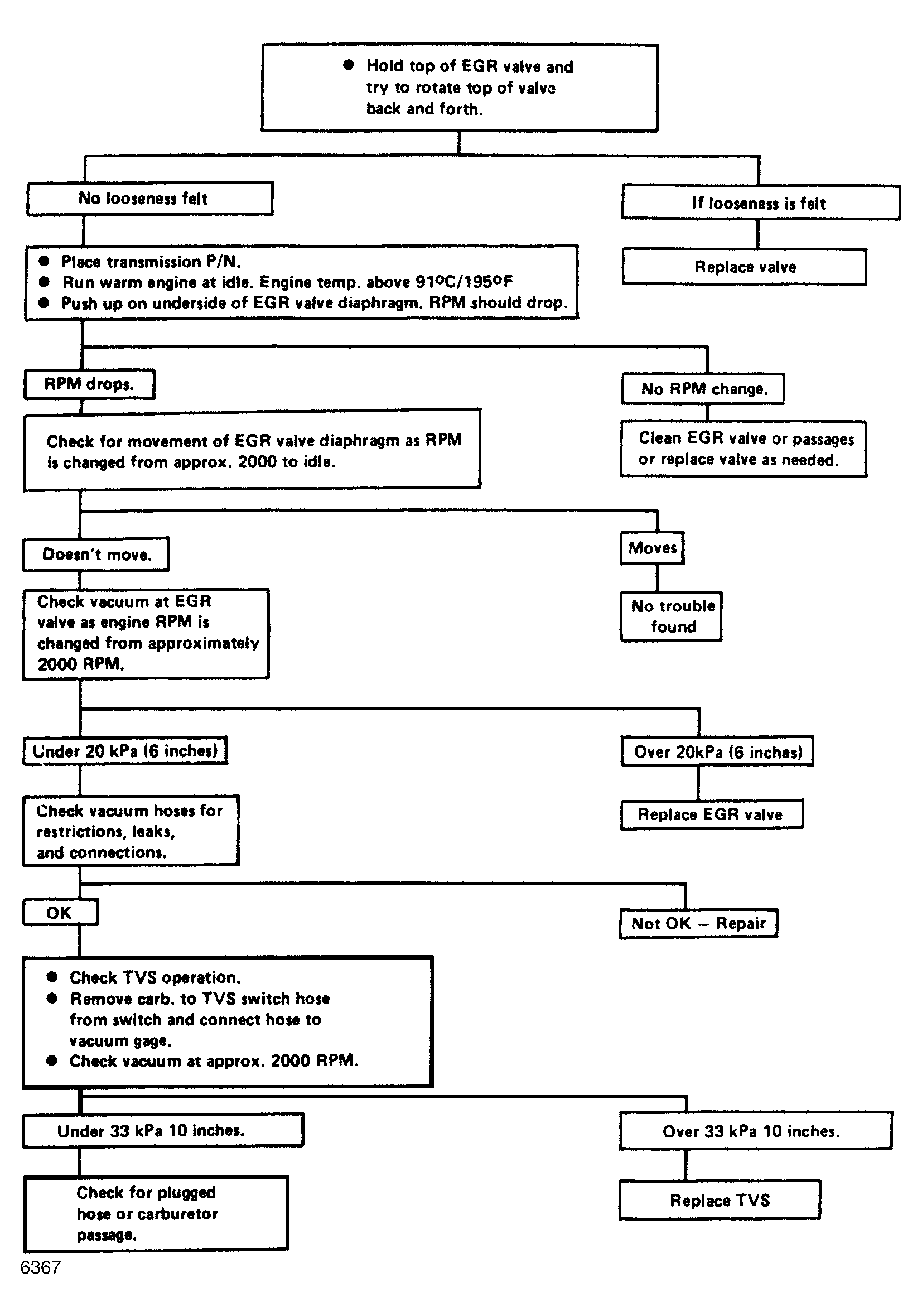

Fig 1: Flow Chart C7C, EGR Valve Check (Non ECM Controlled)

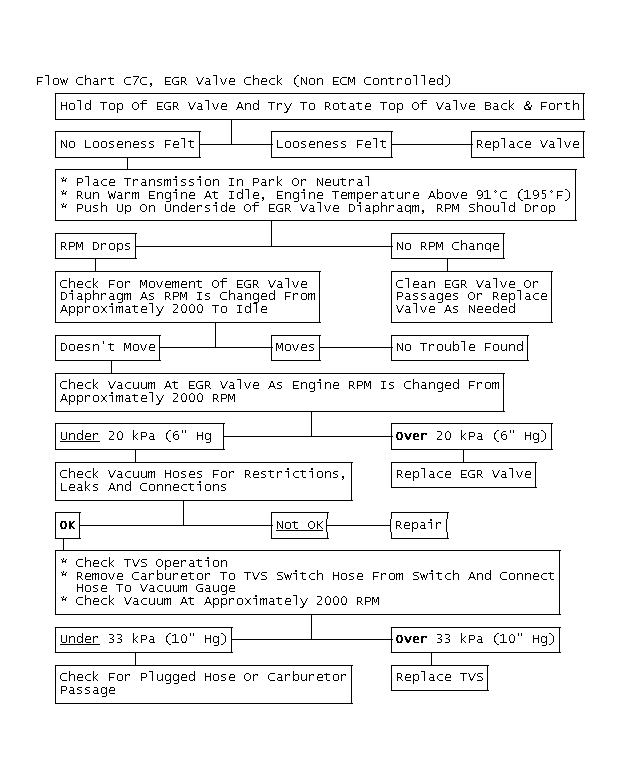

Fig 2: Flow Chart C7C, EGR Valve Check (Non ECM Controlled)
