ECM Terminal Identification

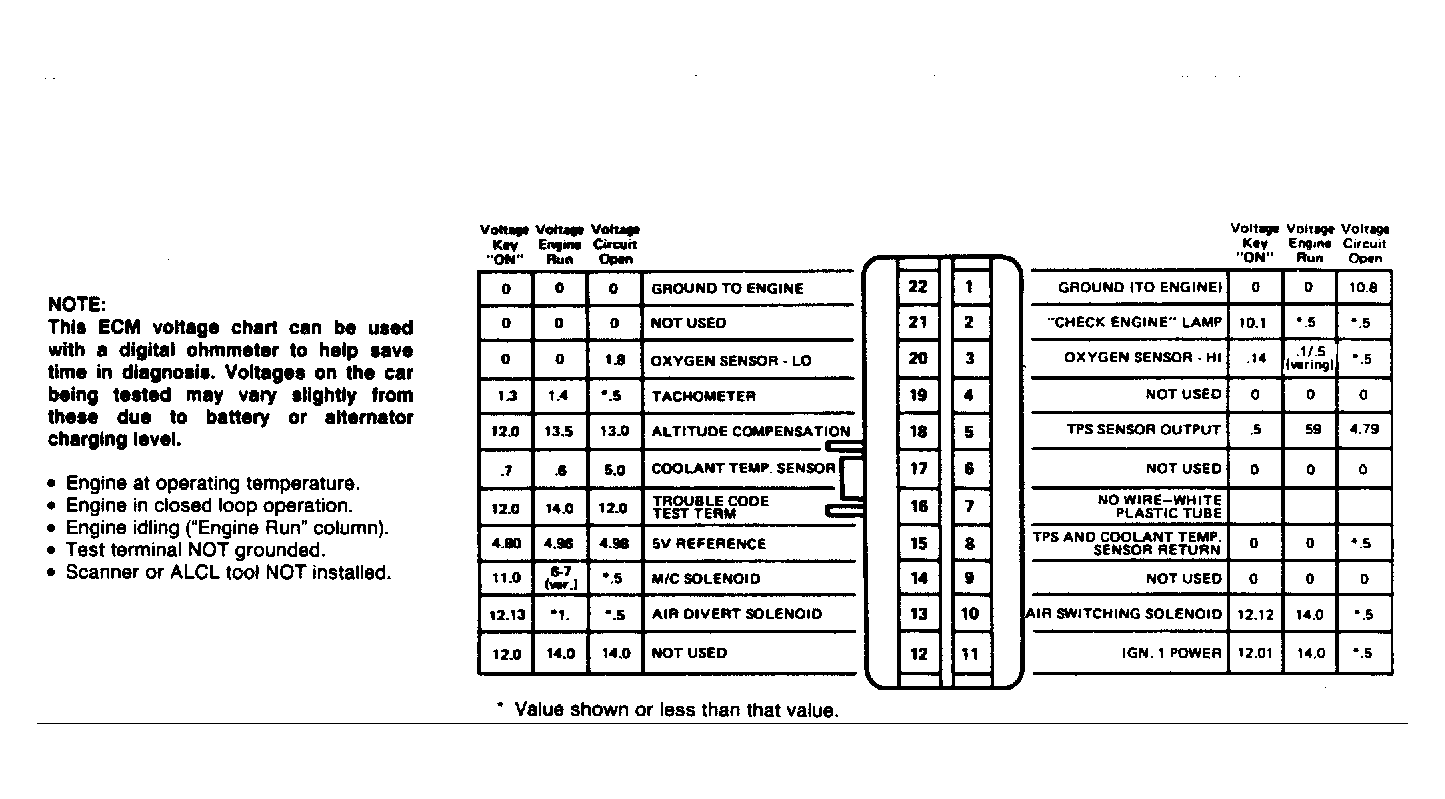

Fig 1: ECM Terminal Identification
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
