Control Units

CONTROL UNITS LOCATION

Component Location
Audio Alarm Module On fuse block.

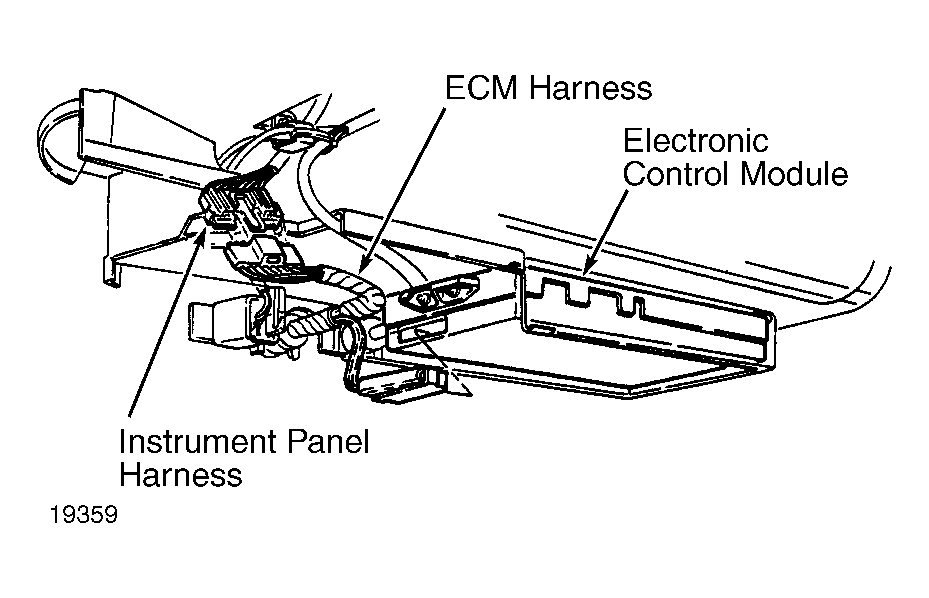

Electronic Control Module (ECM) Below right side of dash. See Figure.
