Wiring Diagrams

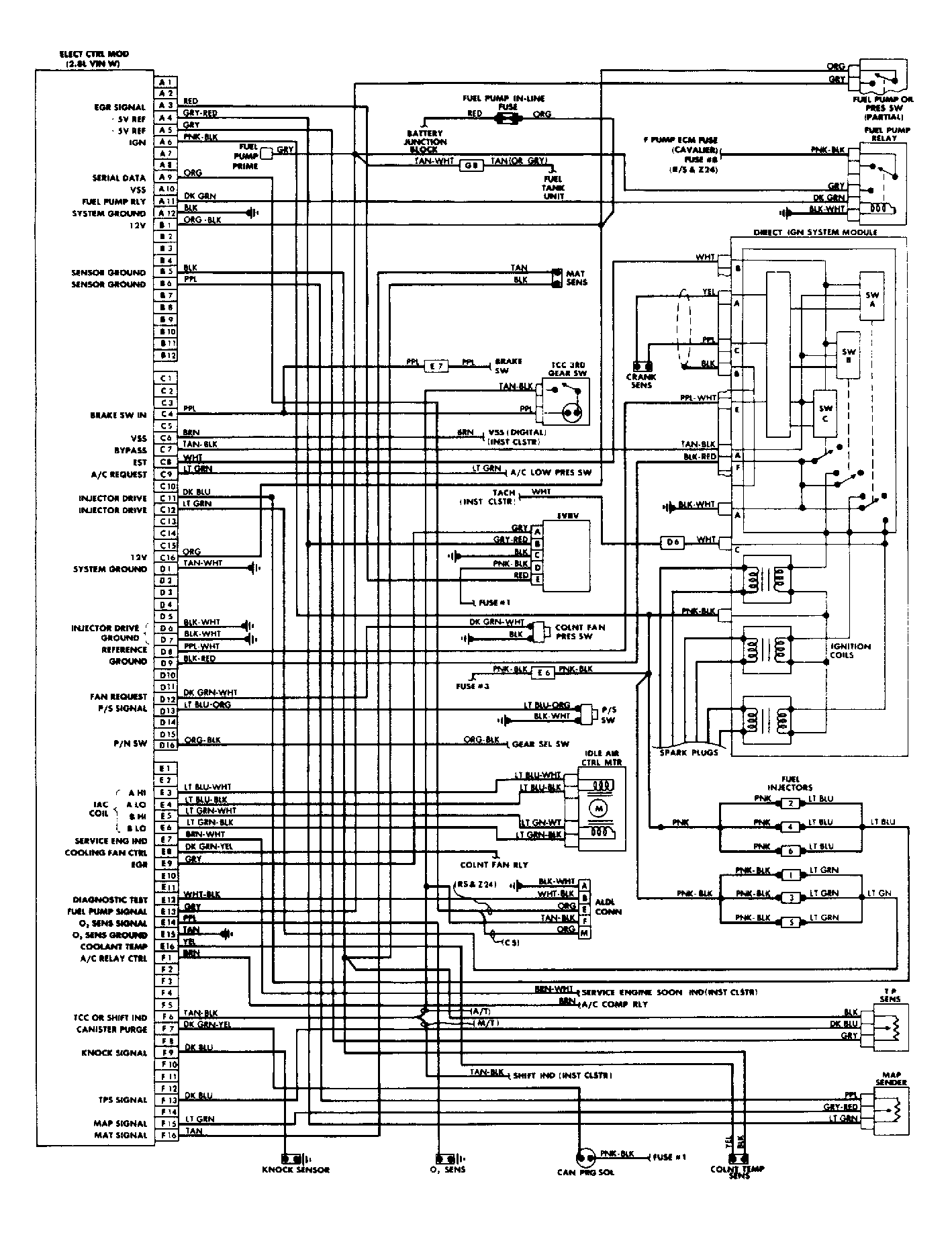

Fig 1: Wiring Diagram, Cavalier & Firenza

G56779

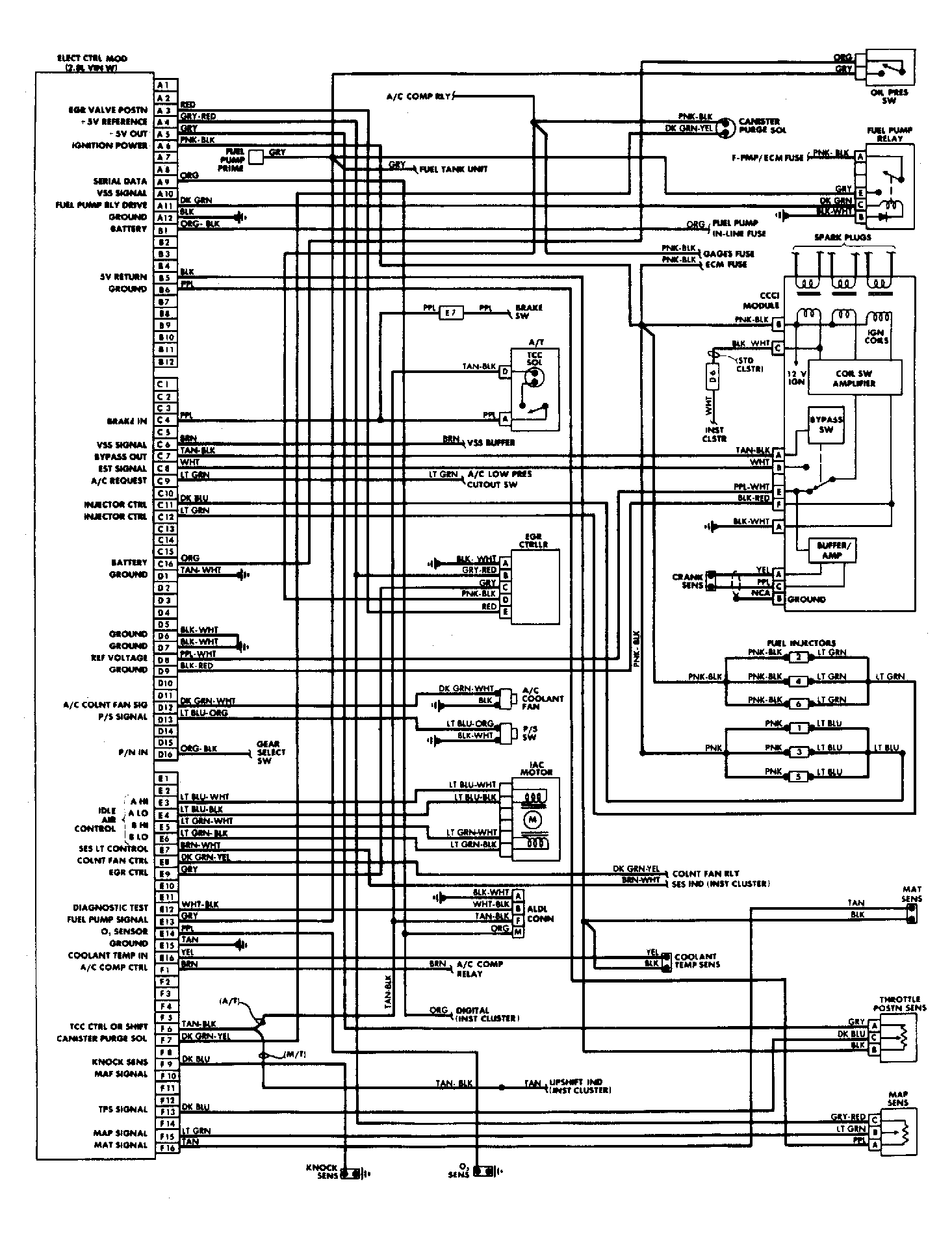

Fig 2: Wiring Diagram, Cimarron

G56780
