Detent/T.V. Cable Adjust

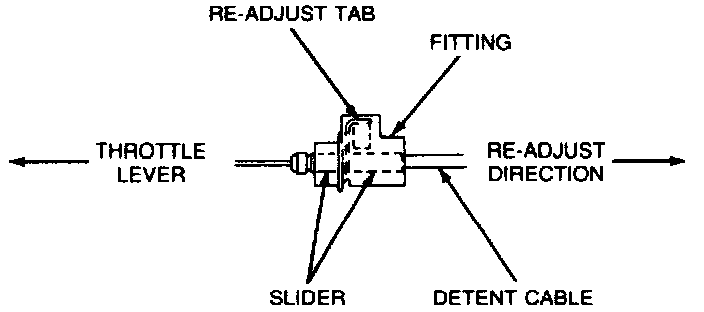

1. Depress and hold readjust tab on cable, see image.

2. Move slider back through fitting, in direction away from throttle lever, until slider contacts fitting.

3. Release readjust tab, then move throttle to wide open position. Slider will ratchet automatically to correct position.
