Service Indicator & Warning Lights: Notes

Fig 1: Dash Gauges & Warning Lights
G90D12800Courtesy of GENERAL MOTORS CORP.

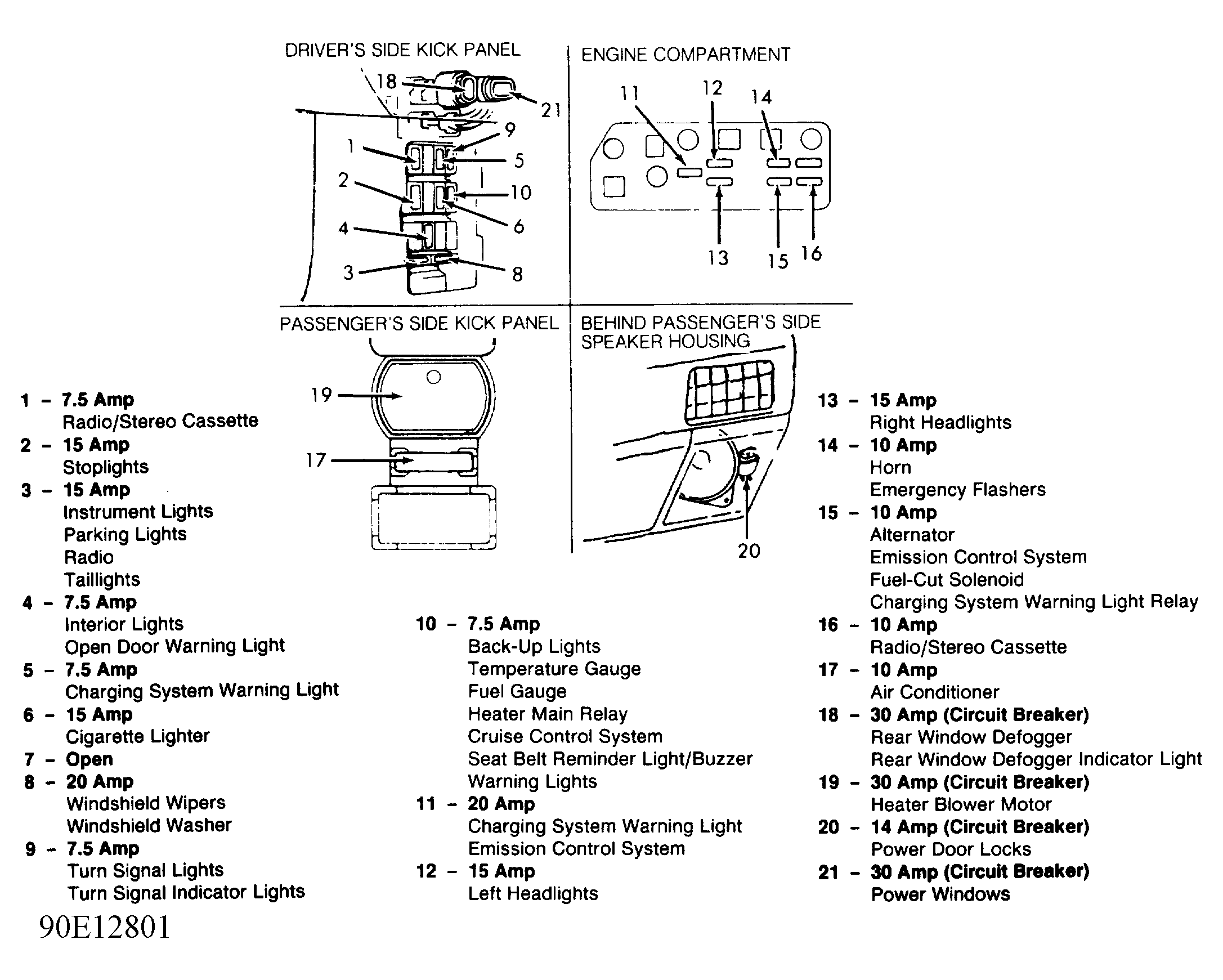

Fig 2: Fuse Panel Identification
G90E12801Courtesy of GENERAL MOTORS CORP.
