Electronic/Powertrain Control Module (ECM/PCM)

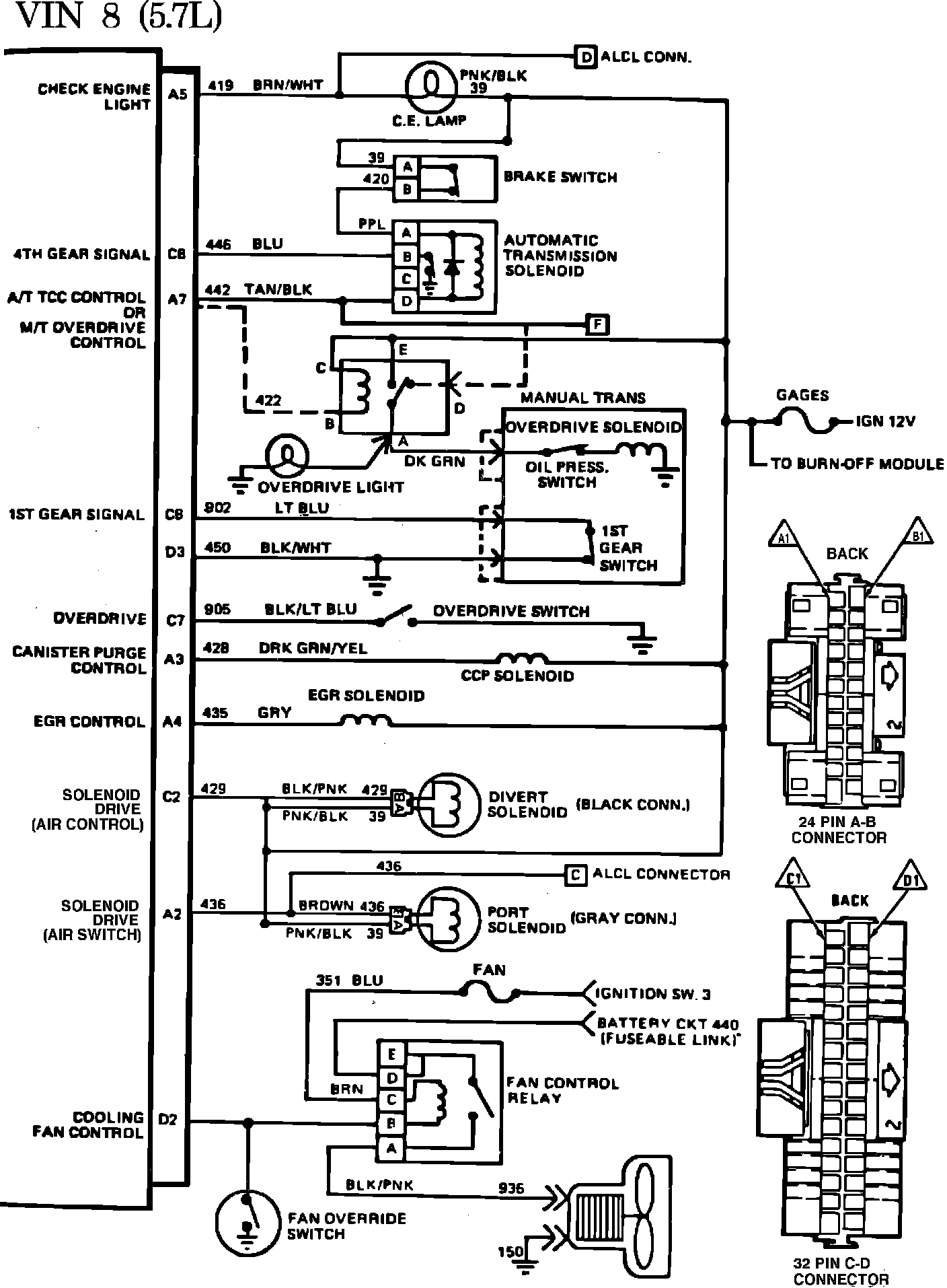

Fig. 016 ECM Wiring Diagrams (1 of 4):

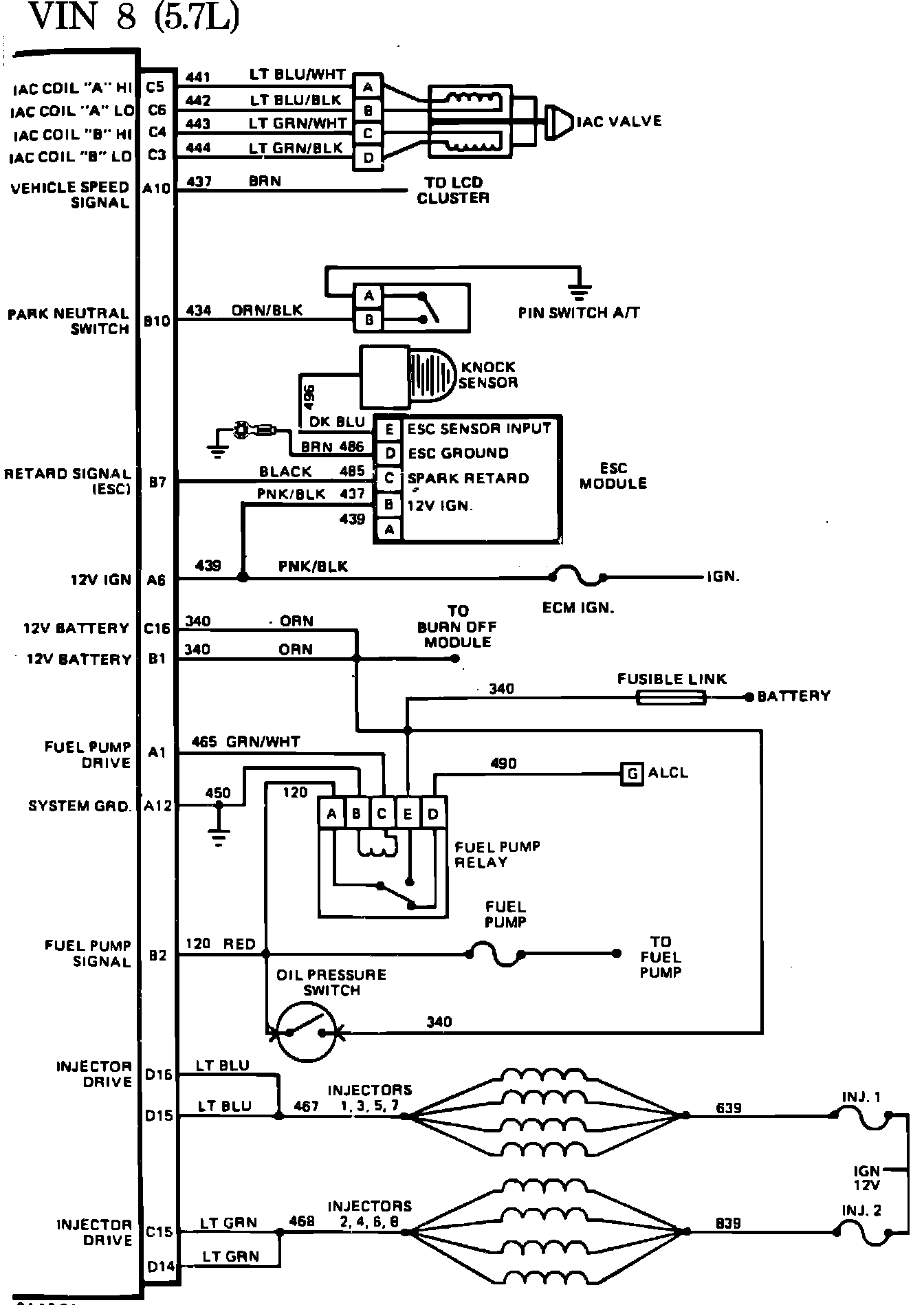

Fig. 017 ECM Wiring Diagrams (2 of 4):

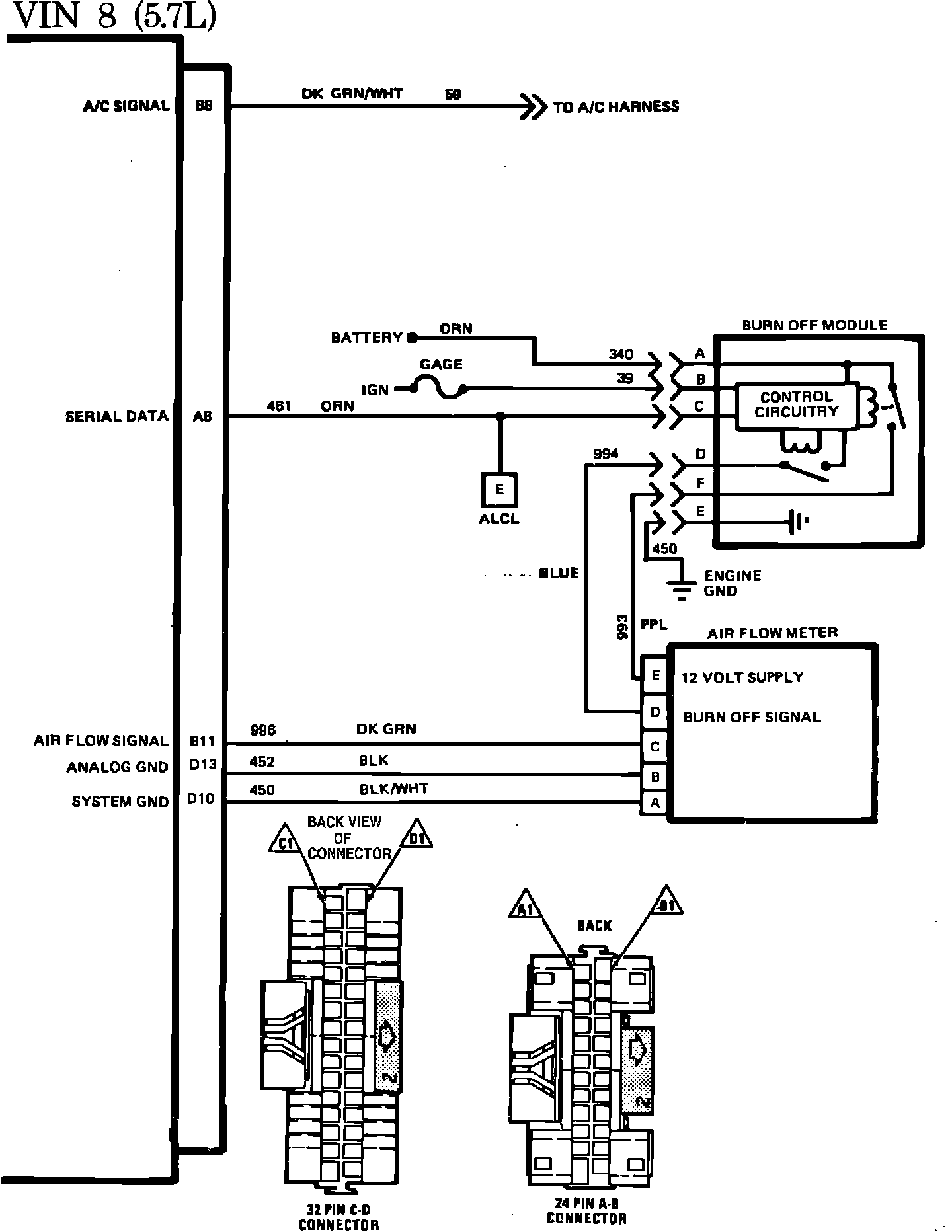

Fig. 018 ECM Wiring Diagrams (3 of 4):

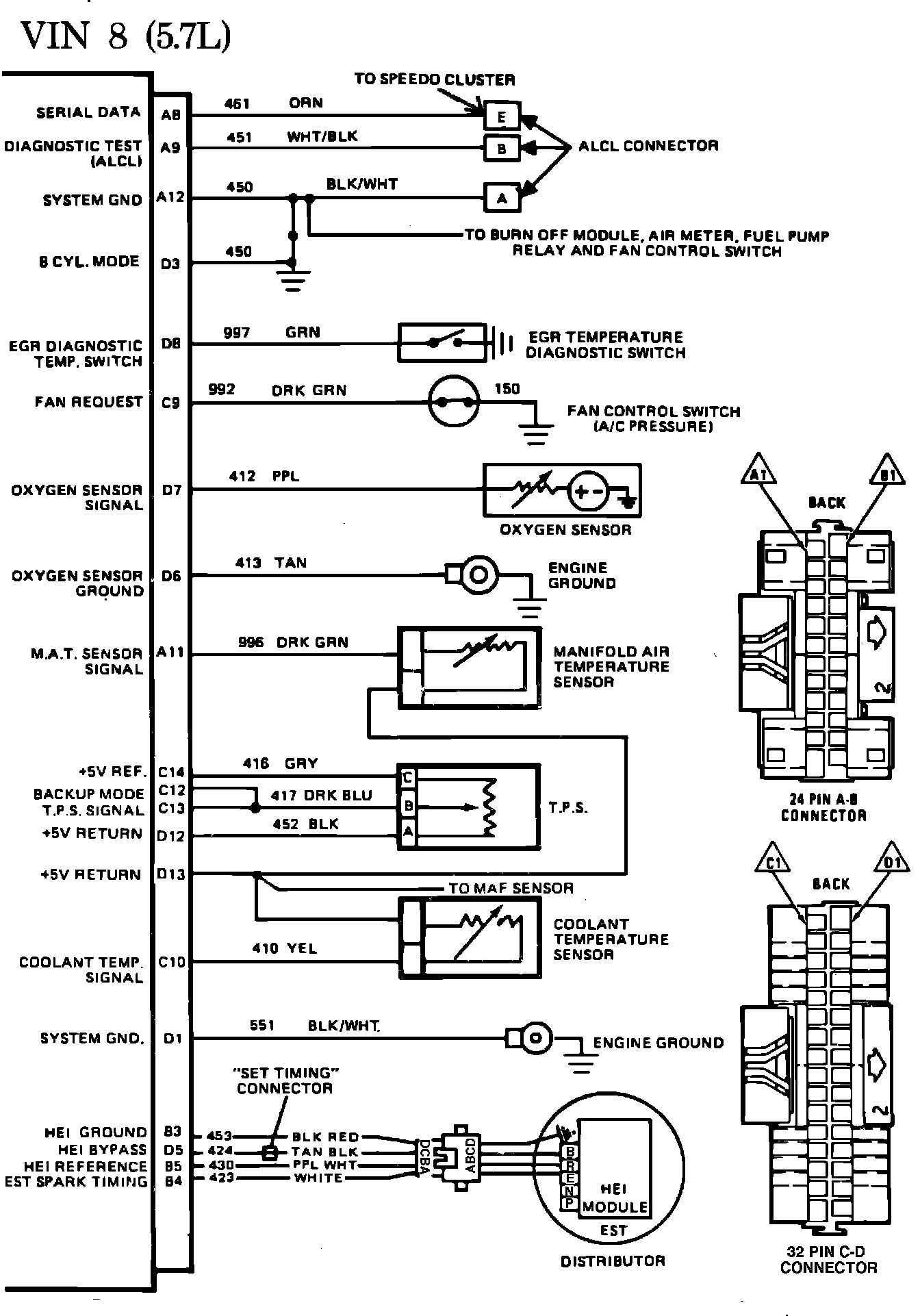

Fig. 019 ECM Wiring Diagrams (4 of 4):
