Throttle Position Sensor: Locations

RH Side Of Engine.:

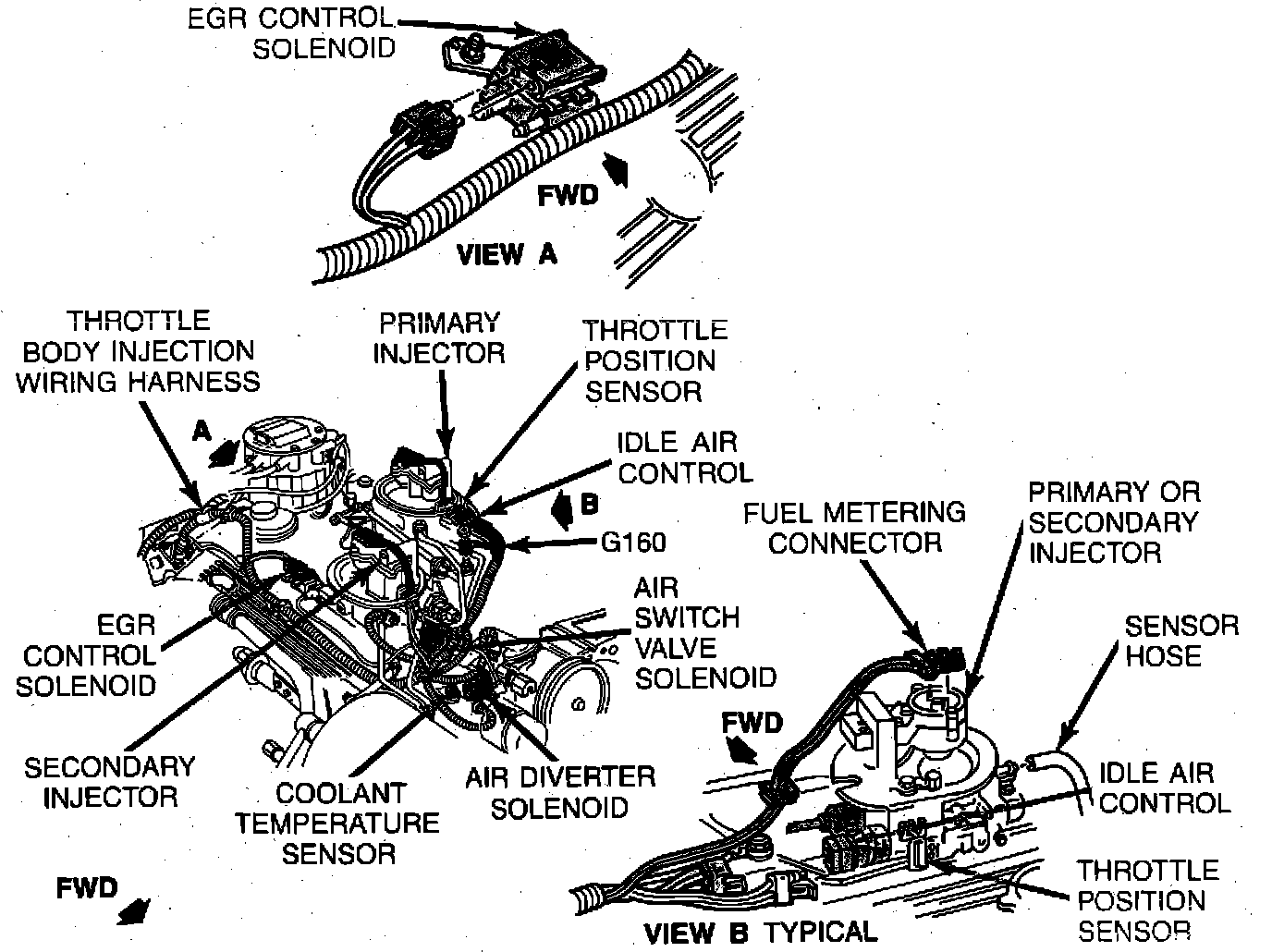

Top Of Engine.:

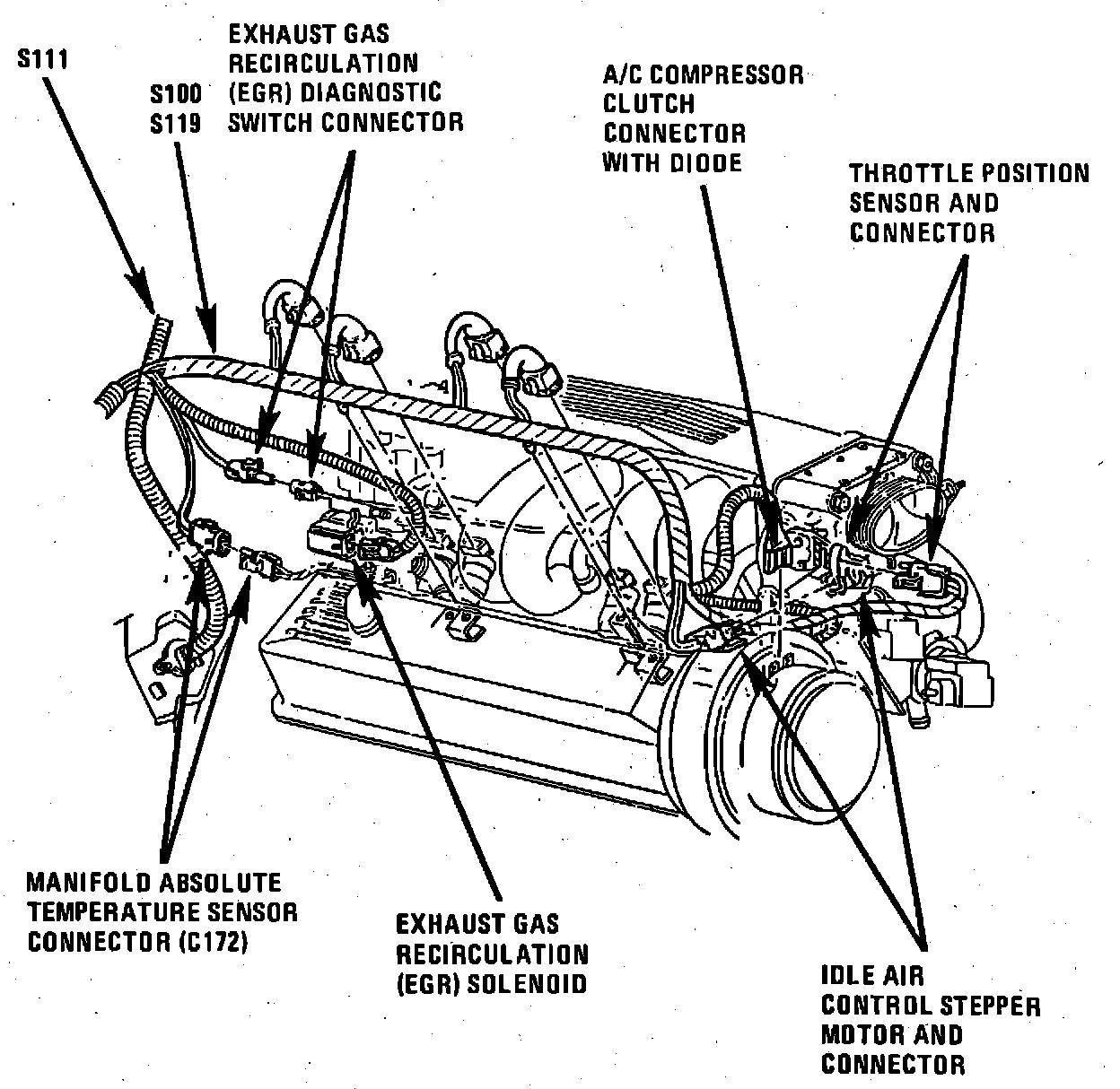

Front Of Engine, RH Side Of Throttle Body

Applicable to: 1984-85
