Chart C5 - Electronic Spark Control (ESC)

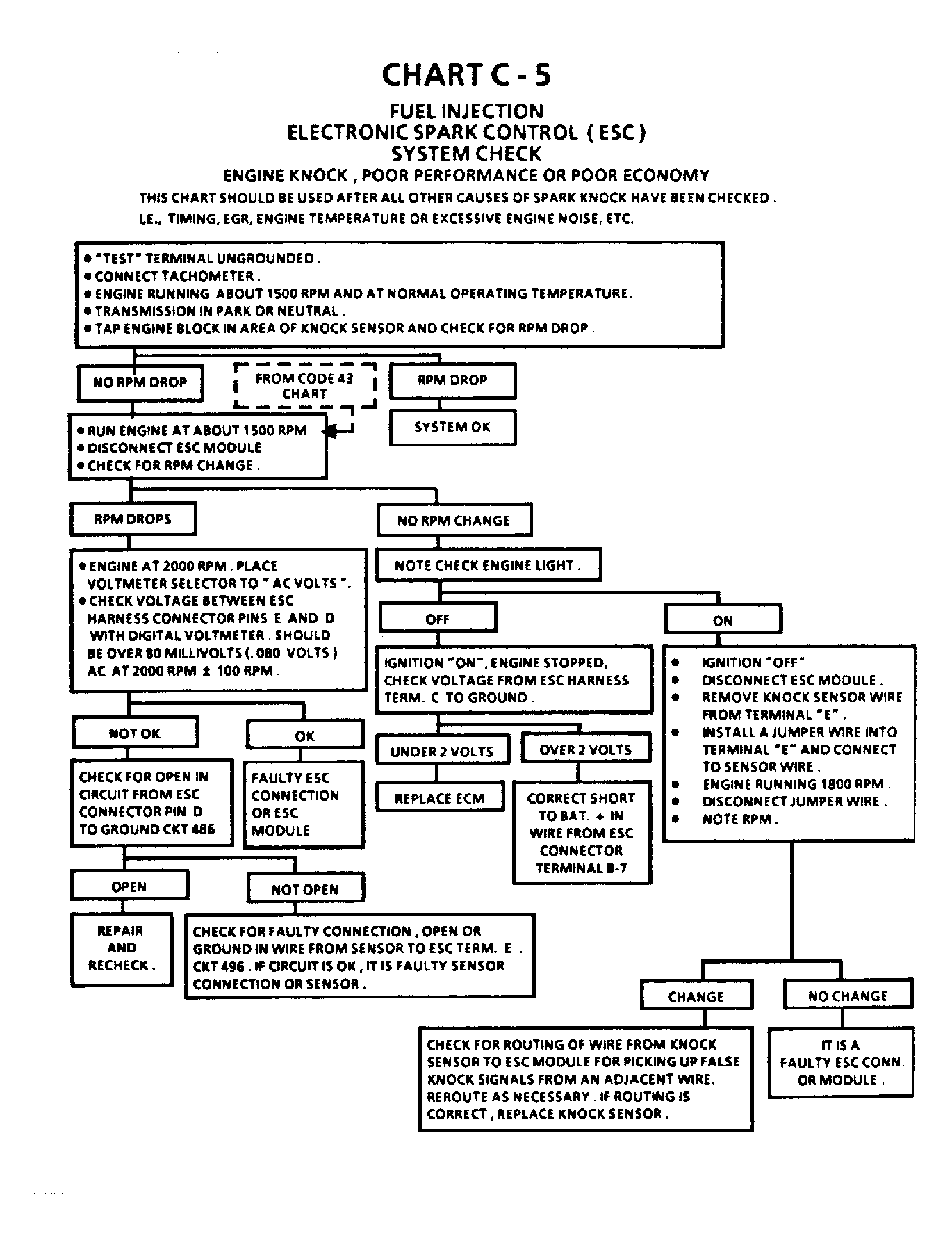

Fig 1: Chart C5, (5.0L & 5.7L) - Electronic Spark Control (ESC)
