ECM Terminal Id

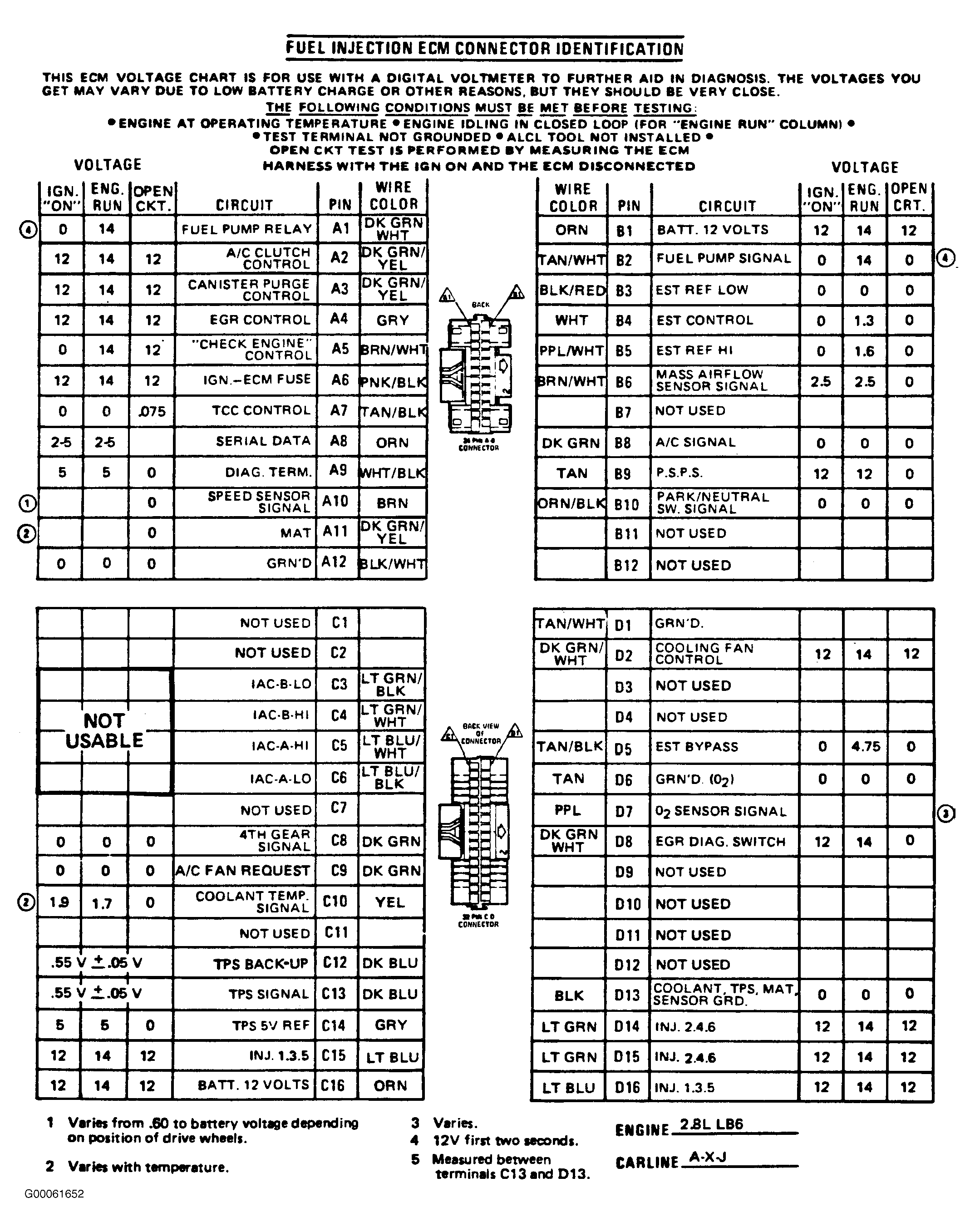

Fig 1: Port Fuel Injection ECM Terminal Identification 2.8L
G00061652

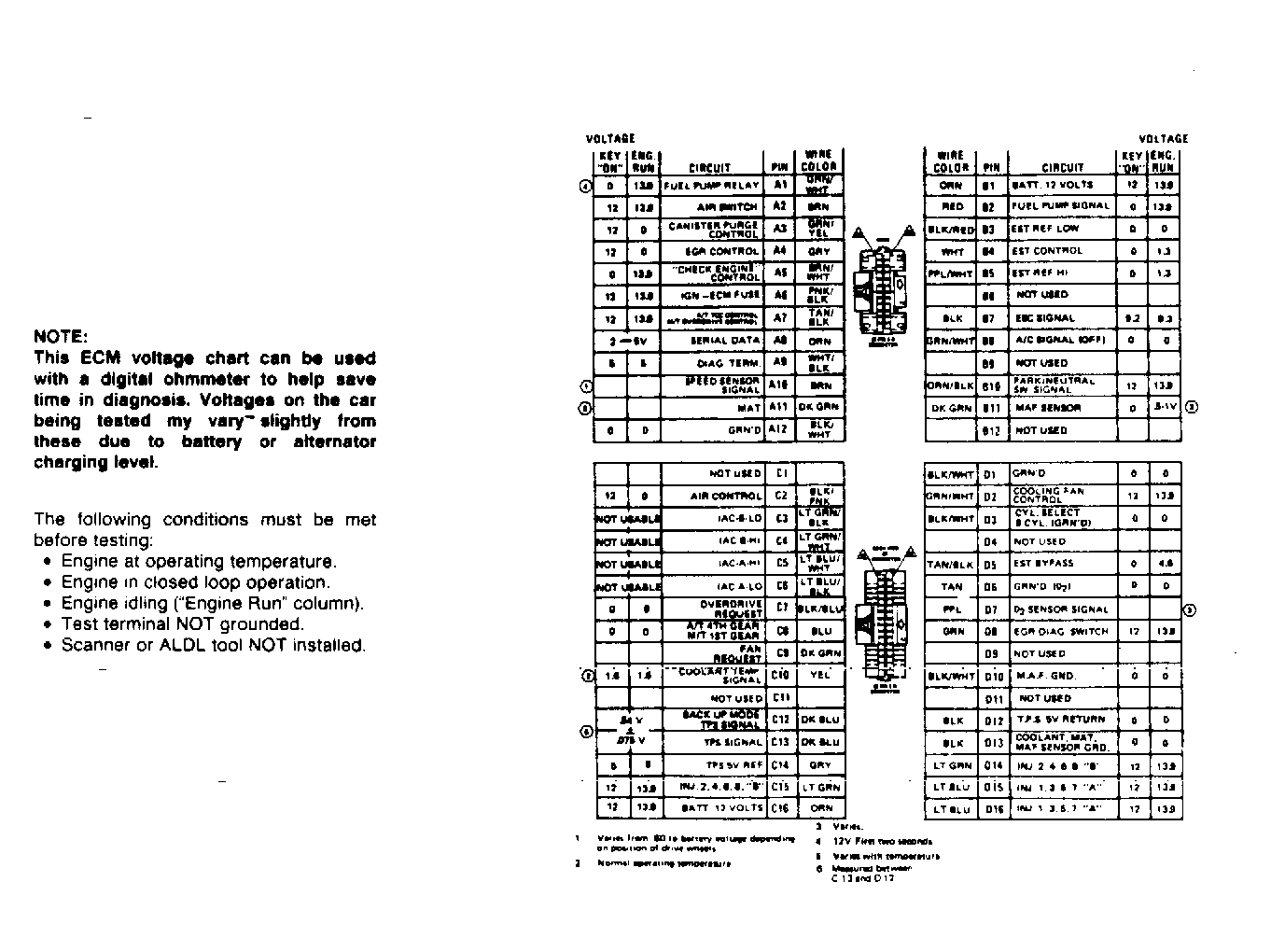

Fig 2: Port Fuel Injection ECM Terminal ID 5.0L & 5.7L
G3050
