Chart C-4D: Ignition System Check
Fig 1: Chart C-4D, Ignition System Check Flow Chart
Fig 2: Chart C-4D, Ignition System Check Flow Chart 1 Of 2

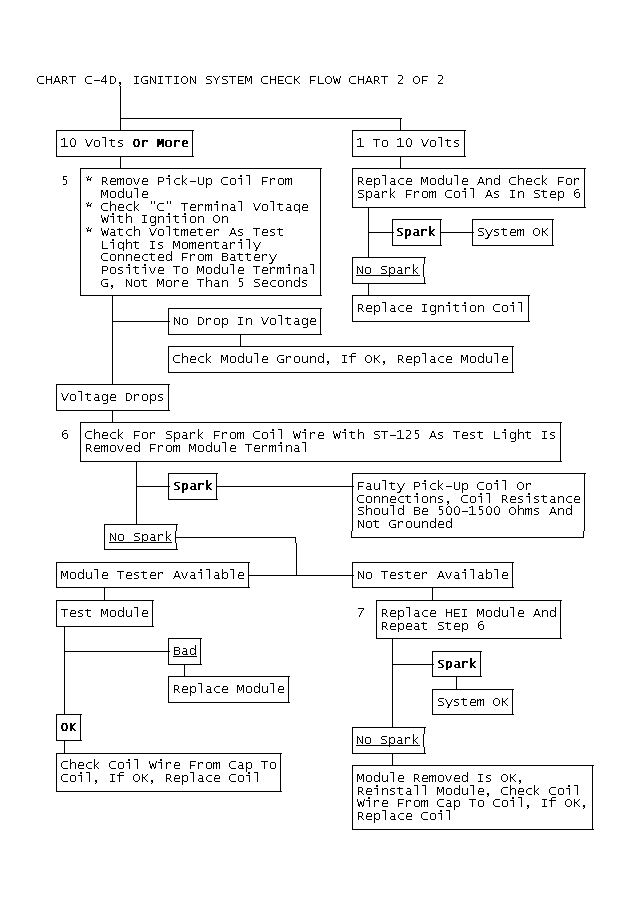

Fig 3: Chart C-4D, Ignition System Check Flow Chart 2 Of 2
