Chevette Base, 2D Hatchback, 1.8 D, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor Tests W/Codes
>>
Chart 5 - TPS Enrichment Check
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Chart 5 - TPS Enrichment Check

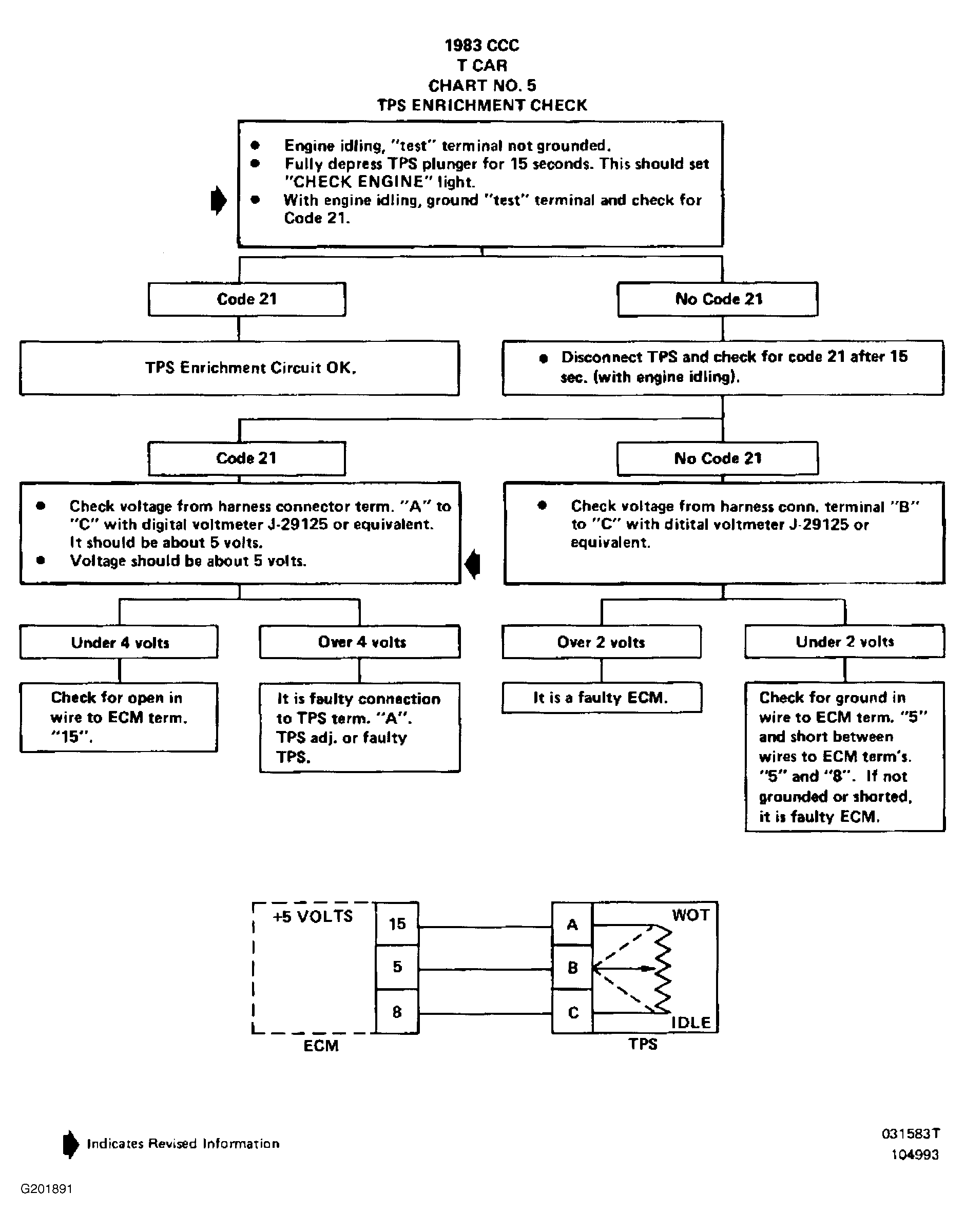

Fig 1: Chart 5 - TPS Enrichment Check
