Torque Specifications

5 SPEED 77MM MANUAL TRANSMISSION
TORQUE SPECIFICATIONS

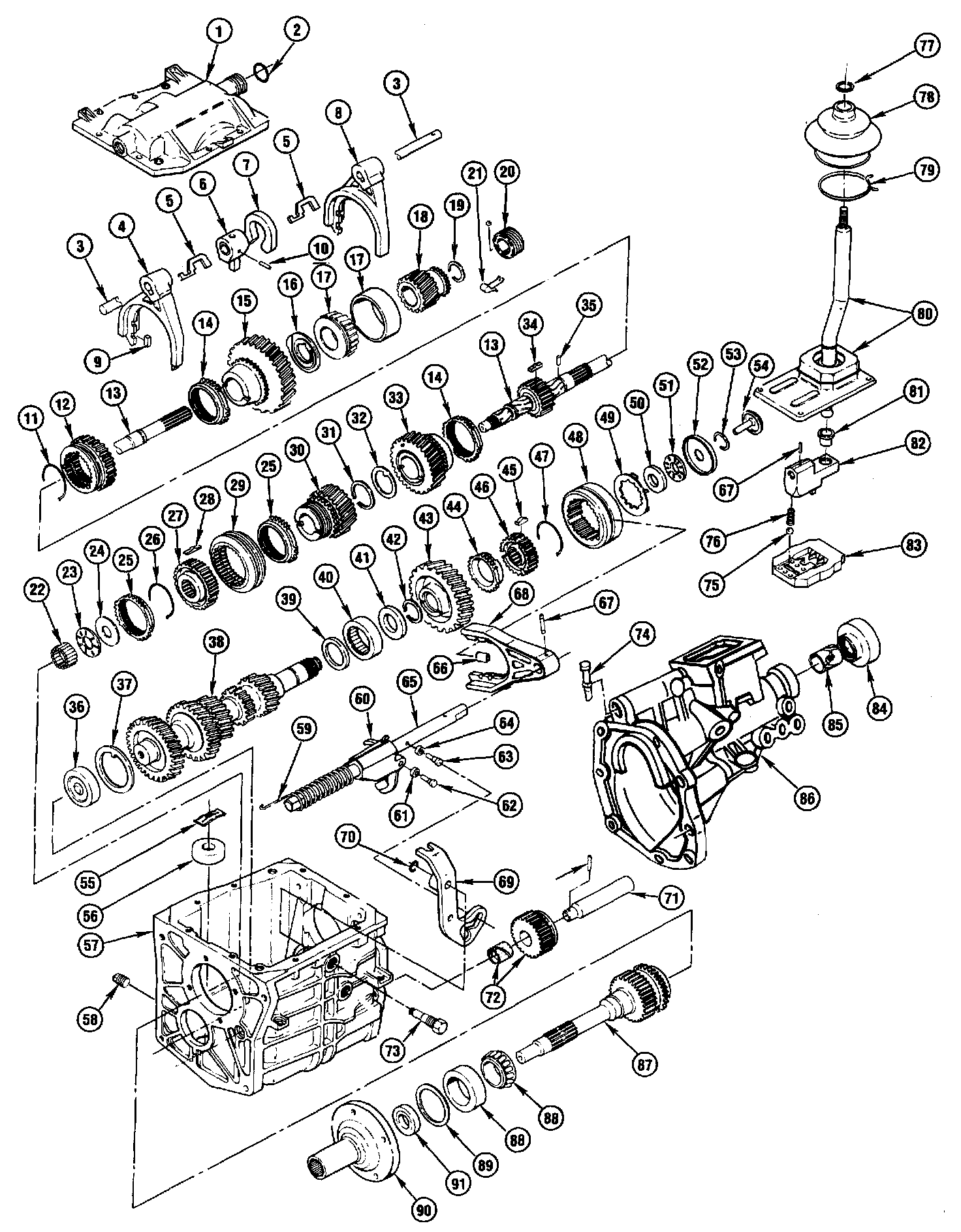

5 Speed 77mm Exploded View:

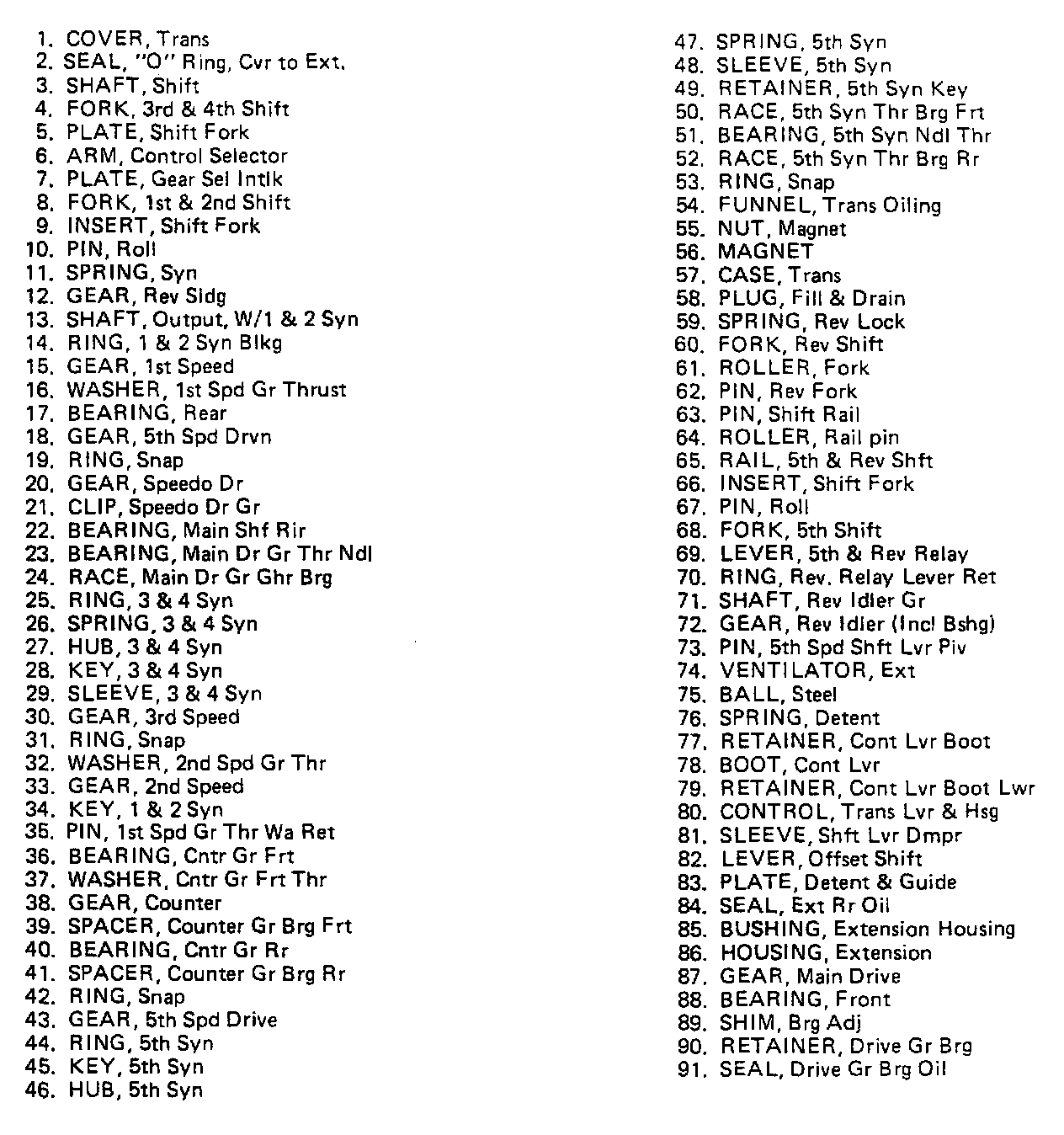

5 Speed 77mm Exploded view:





Torque Specifications Table:
