Torque Specifications


These transmissions are listed in this article
5 SPEED 77MM RPO MB4
5 SPEED 69.5 mm RPO M75
CHEVETTE 4 SPEED 70MM RPO MY1

5 Speed 77mm Manual

TORQUE SPECIFICATIONS:





CHEVETTE 4 SPEED 70MM RPO MY1

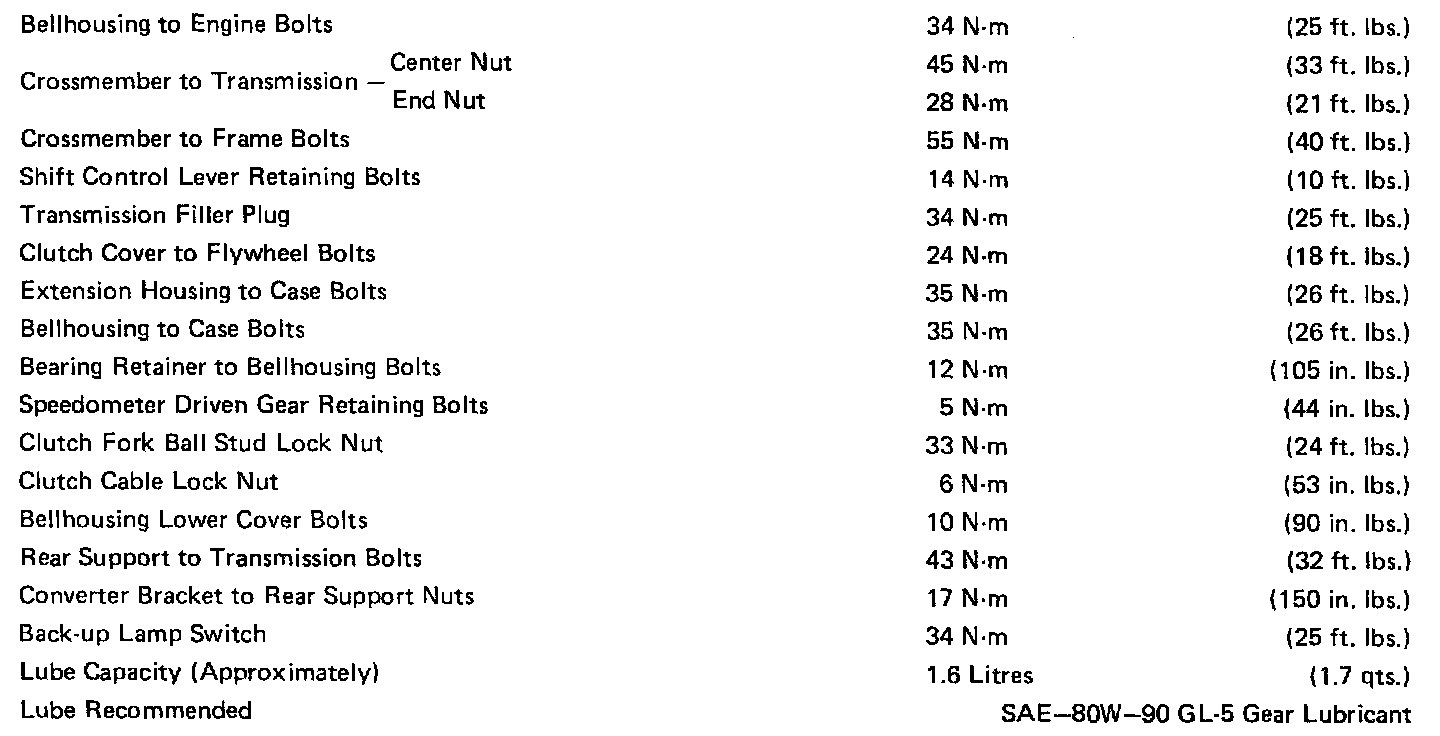

Torque Specifications And Fluid Capacity Chart:





5 SPEED 69.5 mm RPO M75

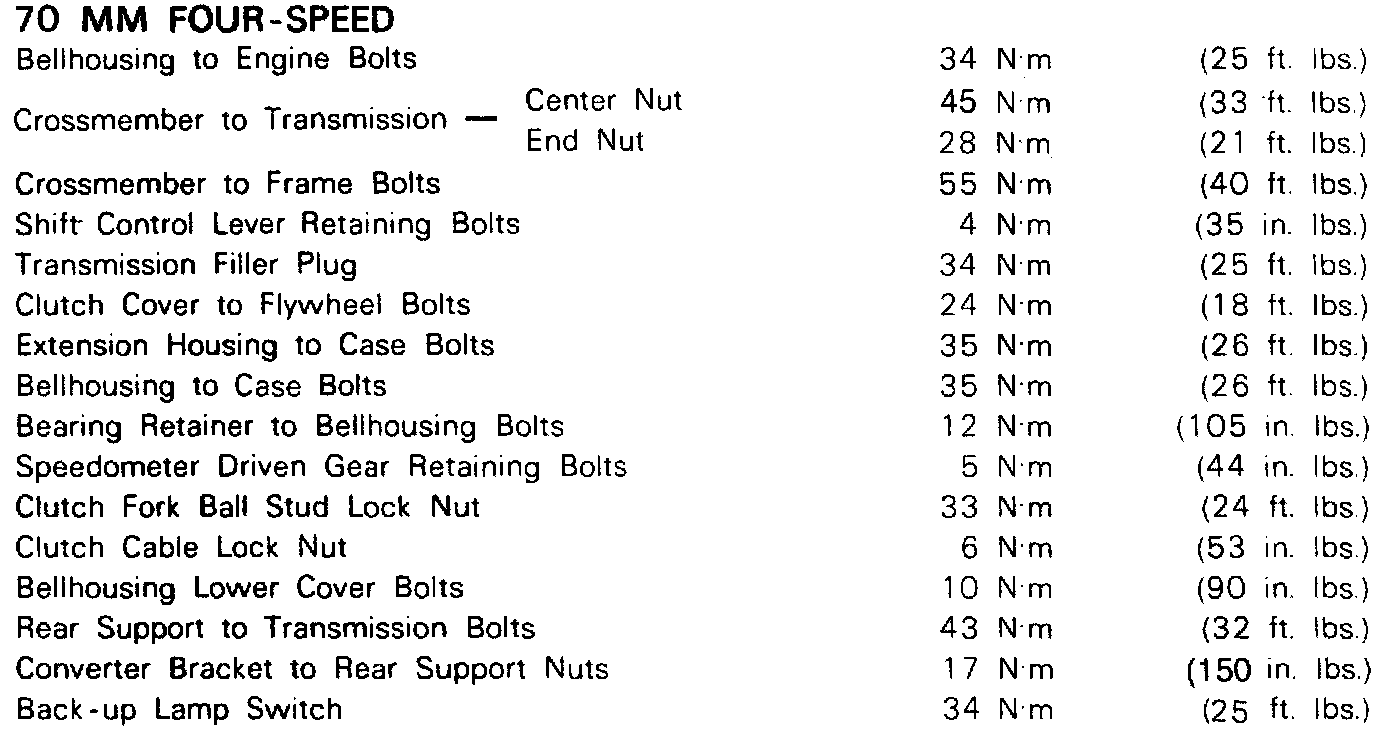

Torque Specifications:





4 speed 70mm

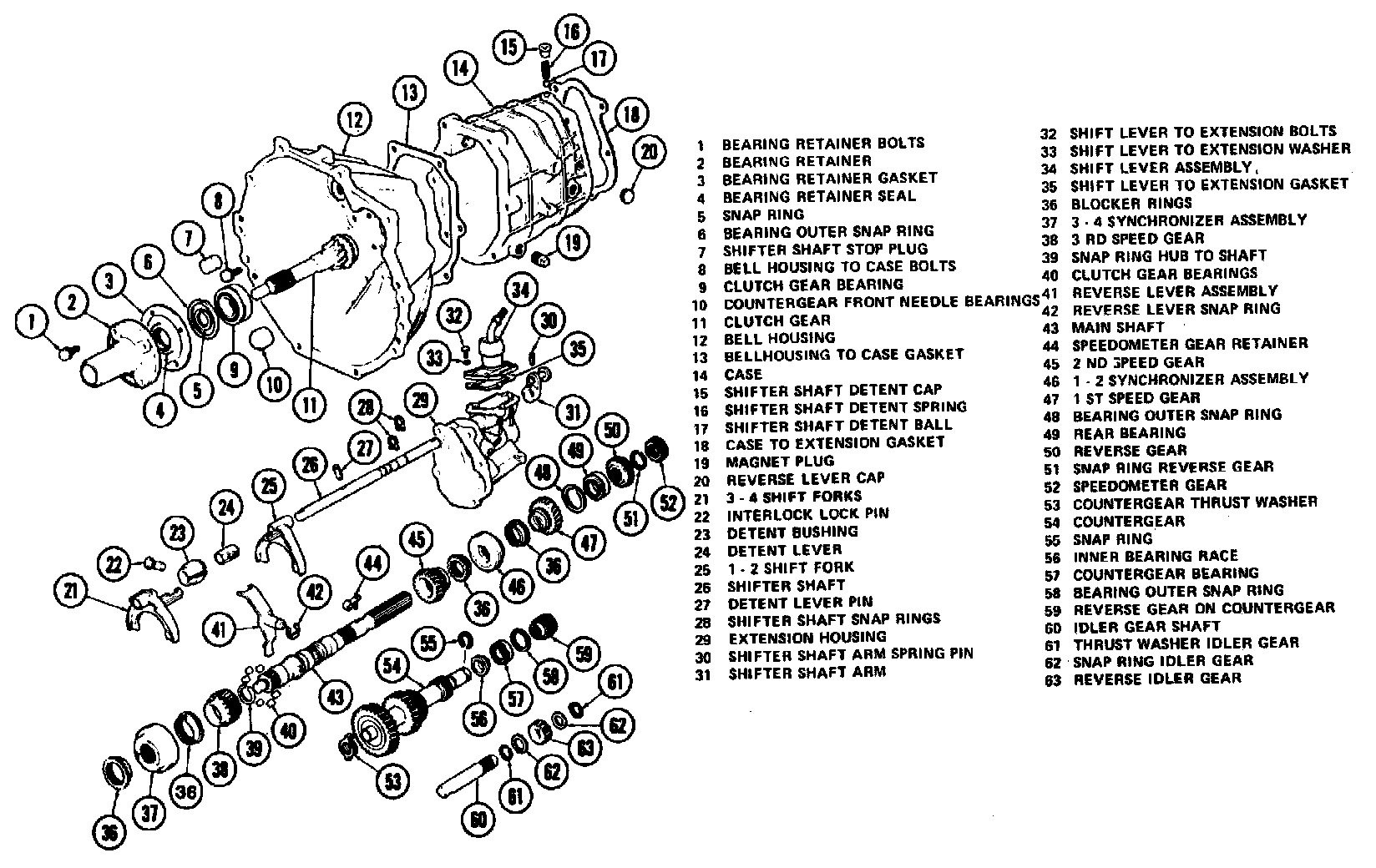

V�c;70mm 4 Speed Exploded View:





Torque Specifications:
