Images

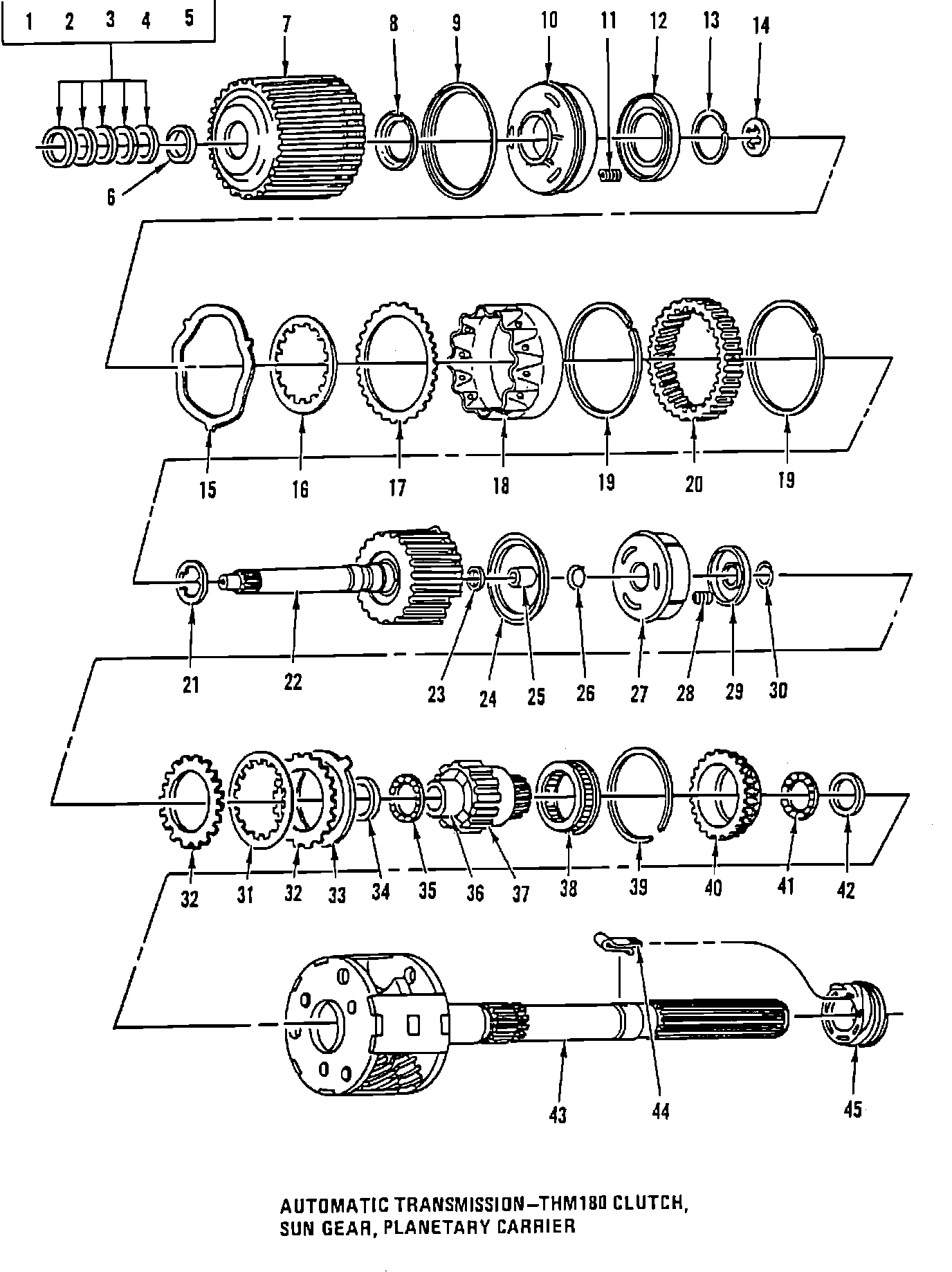

Clutch, Sun Gear, Planetary Carrier, THM 180:
Reaction Sun Gear & Governor, THM 180:

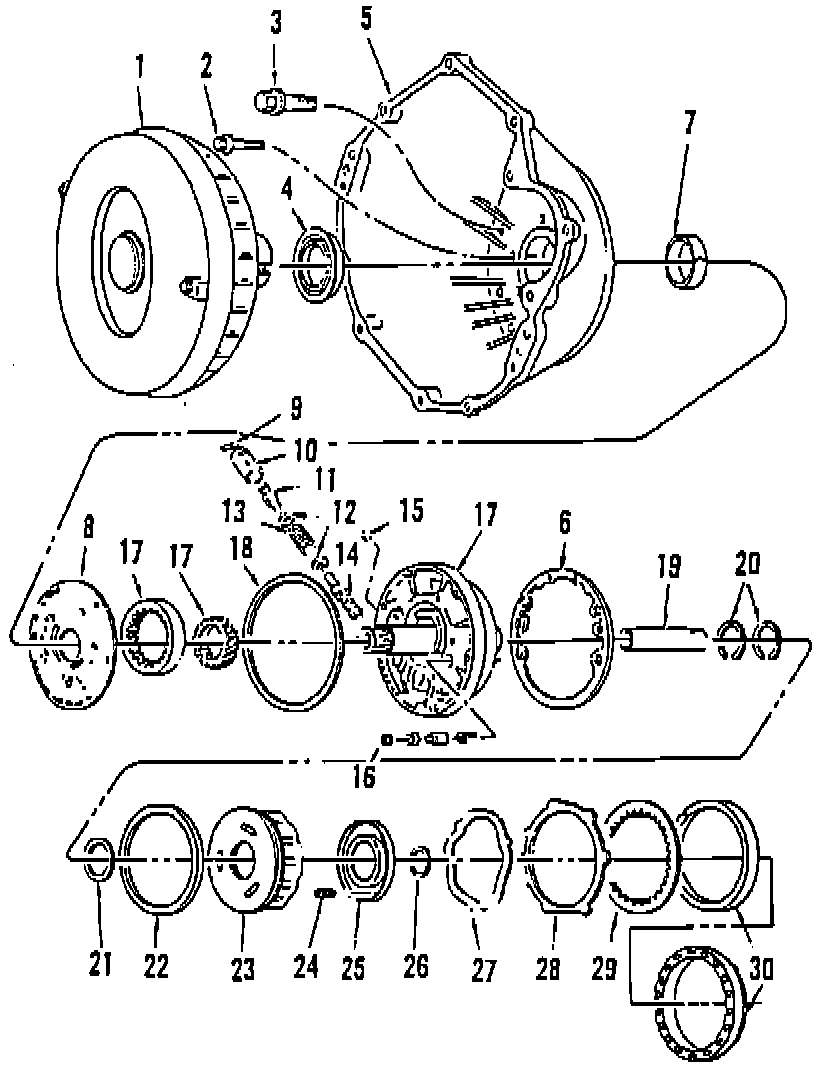

Converter, Pump & Reverse Clutch, THM 180:

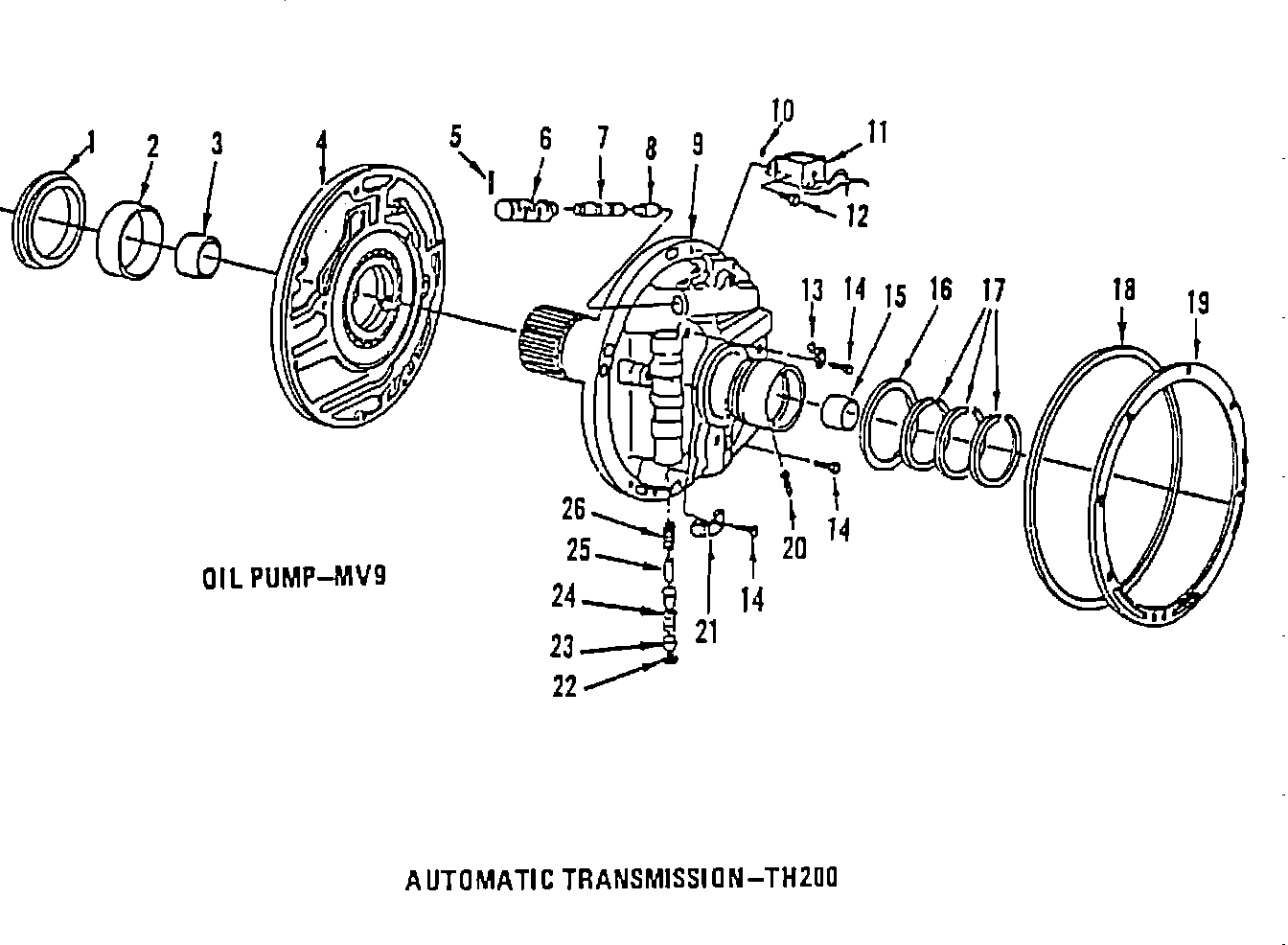

Oil Pump, MV9, THM 200 & 200C - 3 Speed:

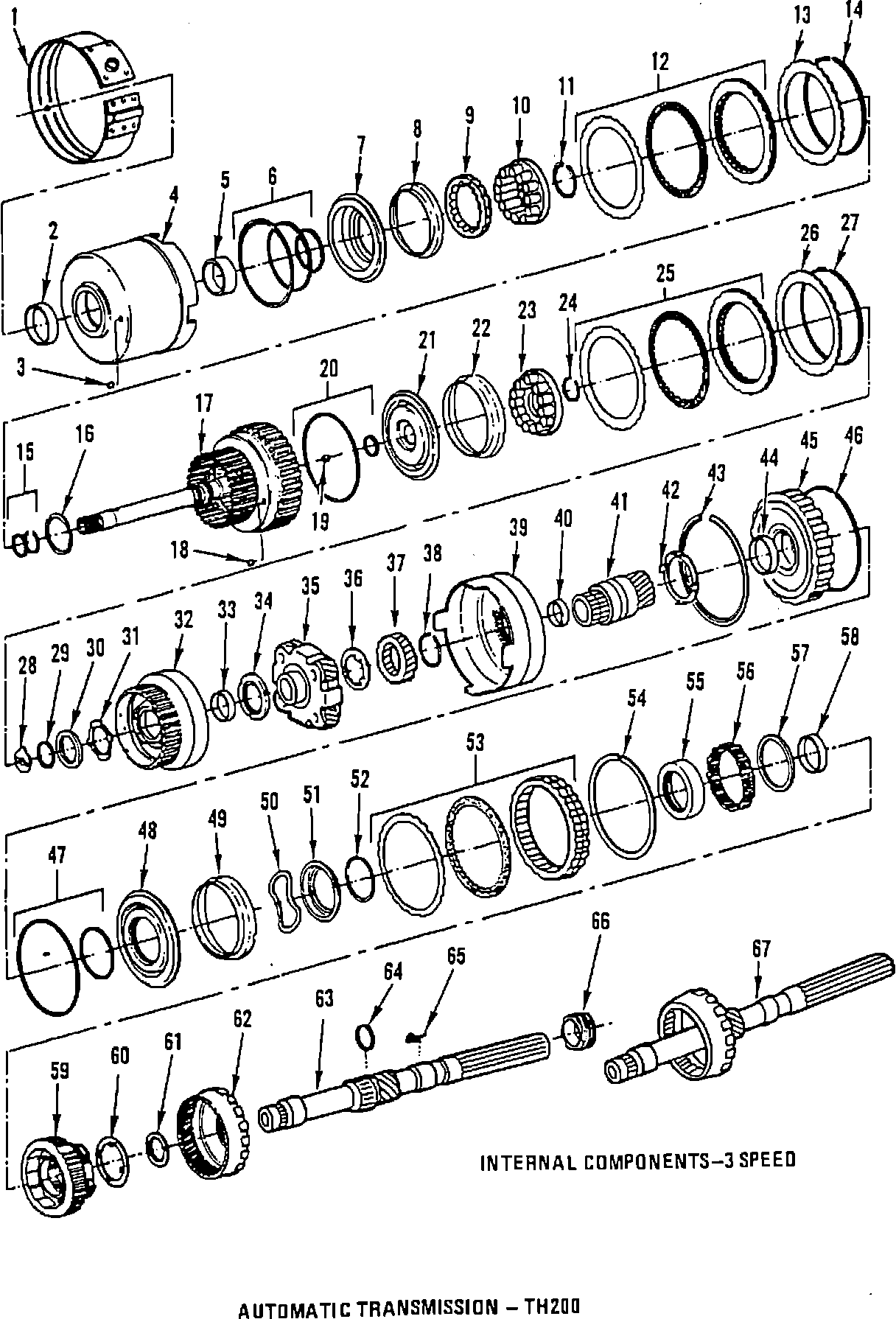

Internal Components, THM 200 & 200C - 3 Speed:

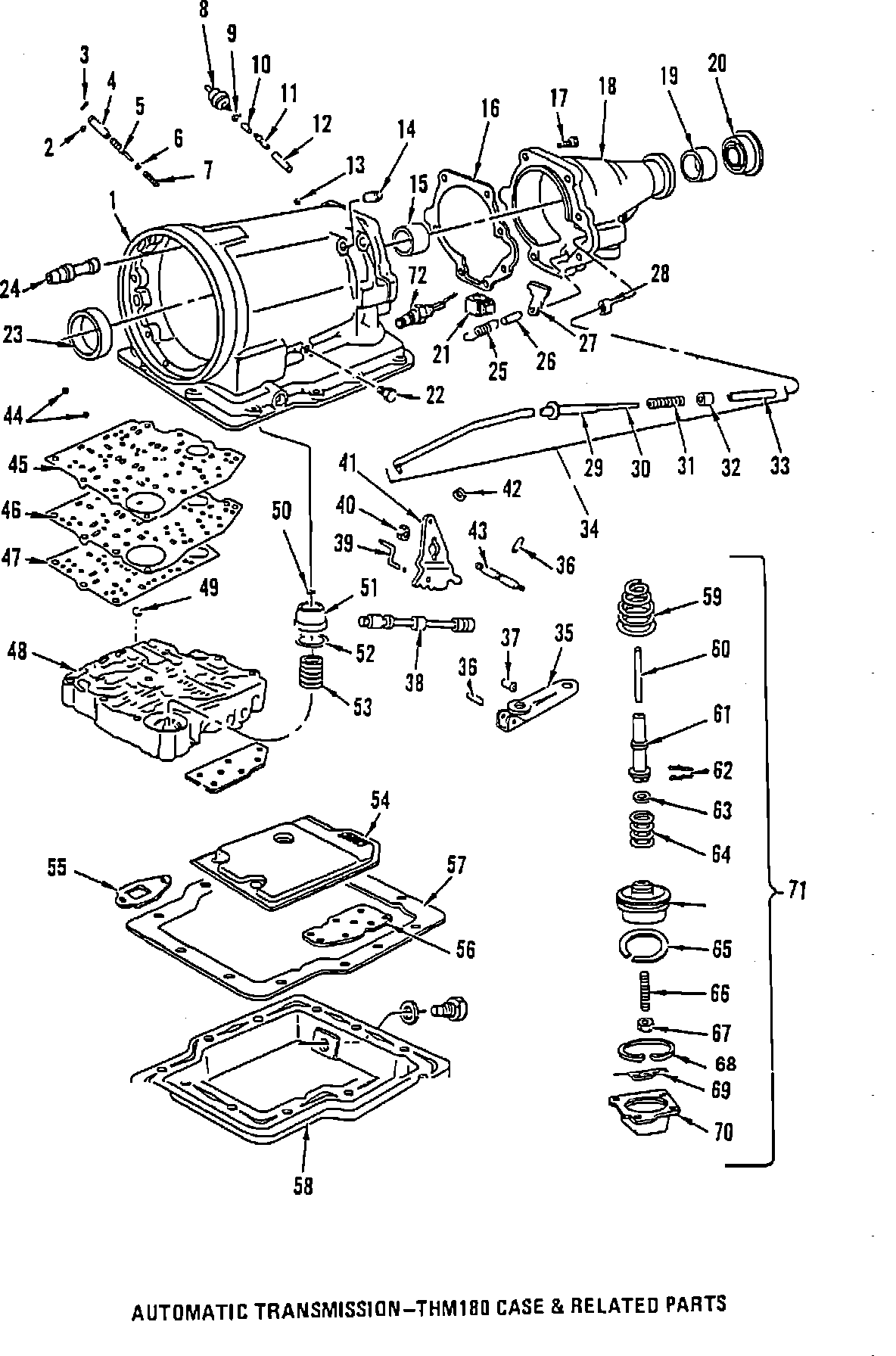

Case & Related Parts, THM 180:

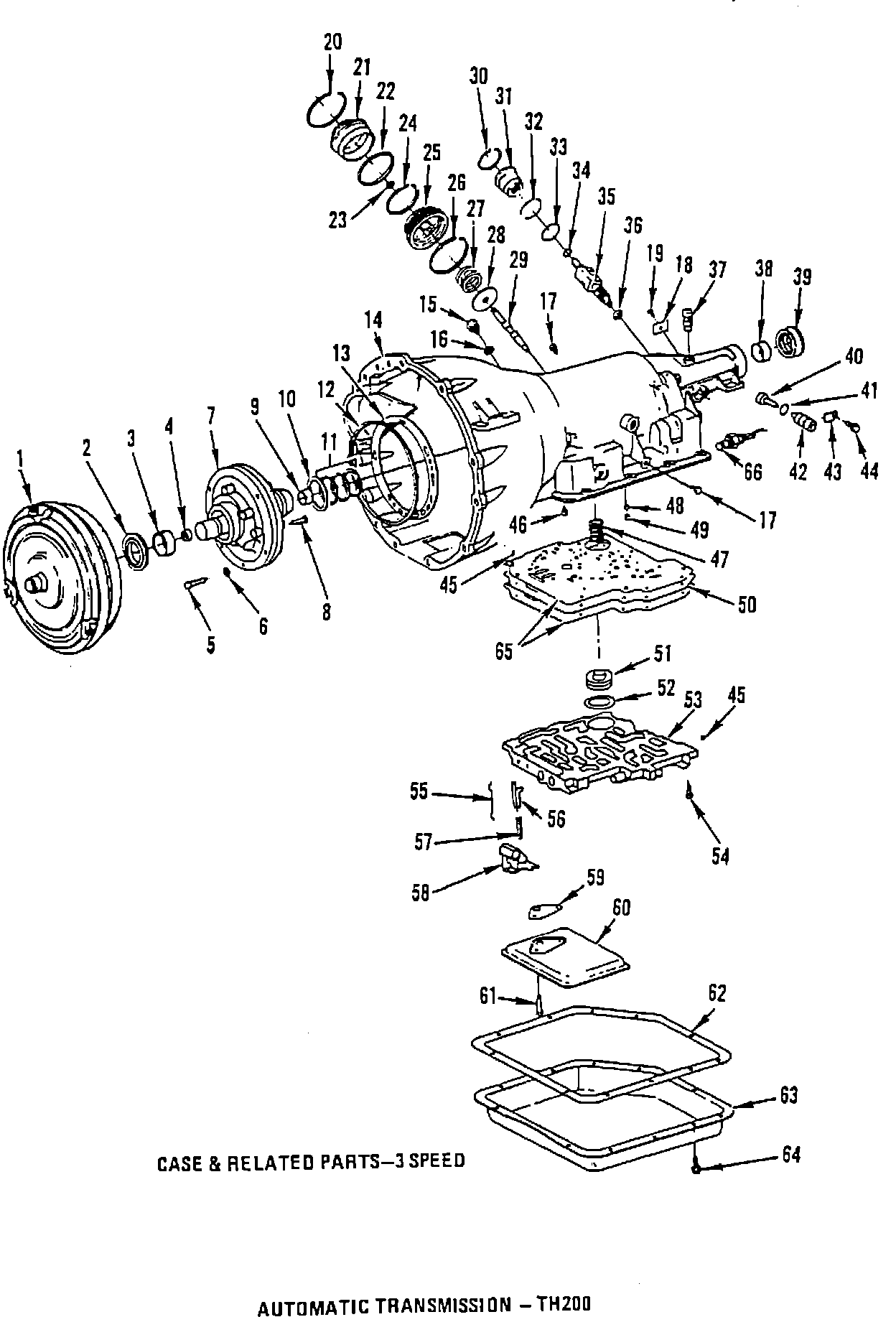

Case & Related Parts, THM 200 & 200C - 3 Speed:
