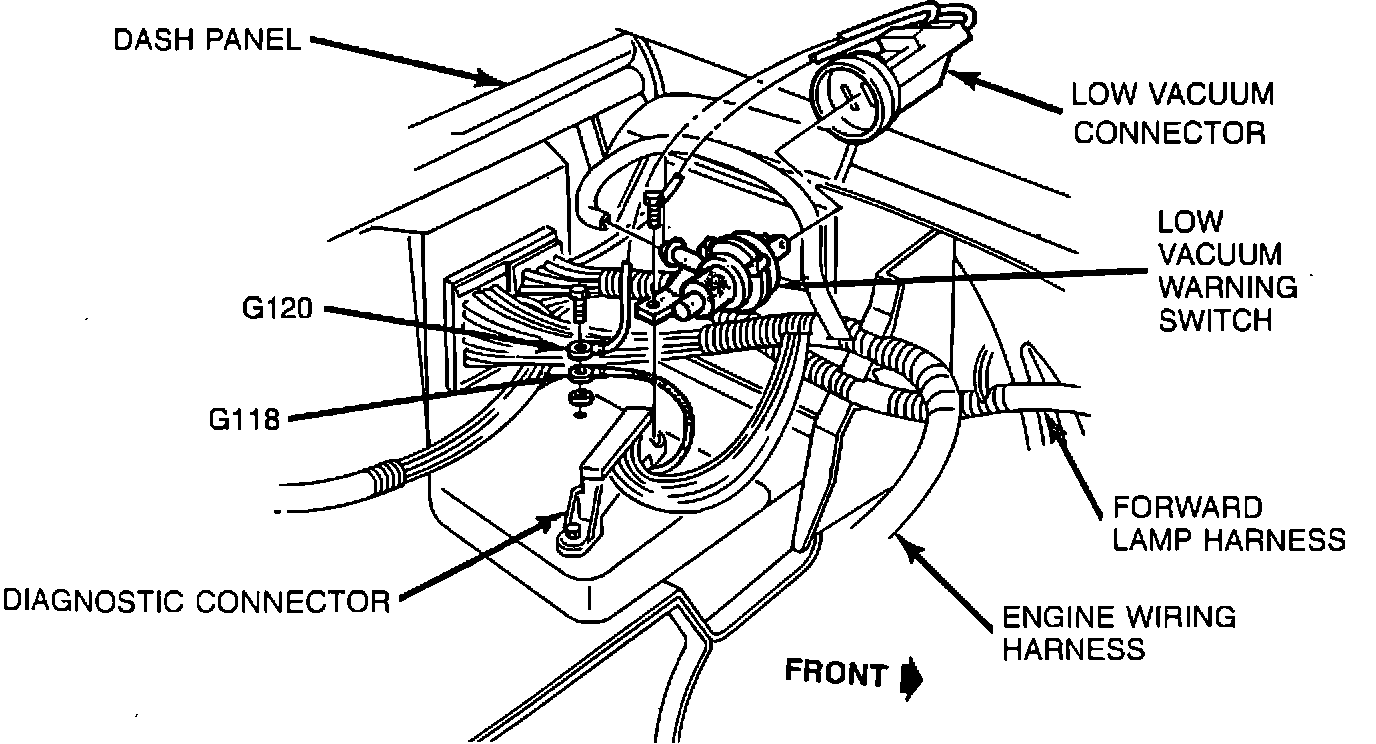

Low Brake Vacuum Switch

Low Vacuum Warning Switch.:

LH Front Of Dash Area

Applicable to: Diesel Engine
