Float Level

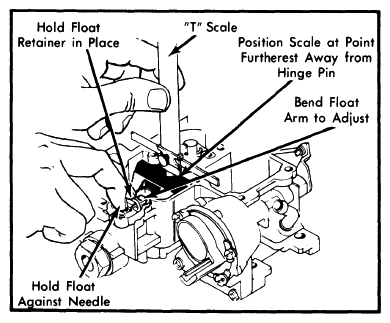

- Remove air horn and gasket from float bowl. Hold float retainer firmly down while pushing float down against needle. See Fig 1.
- Position a "T" scale over toe of float at point furtherest away from float hinge. Measure distance from float bowl casting to float.
- To adjust, remove float and bend float arm. Check to make sure float is correctly aligned after adjustment.
