Drive Motor Power Inverter Module Connector Installation

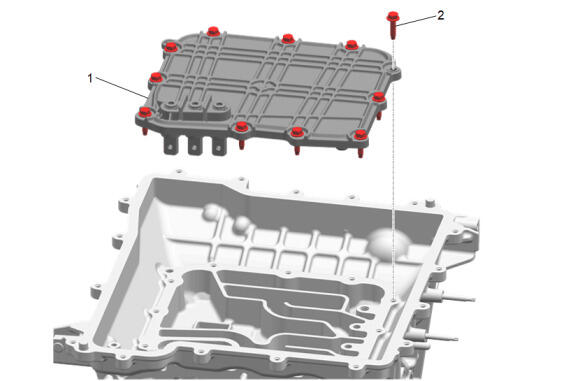

  1. GM6029210Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Inverter Module Connector (1) - Install

  2. Drive Motor Housing Cover Bolt (2) - Install and tighten in sequence [11x] - Fastener Specifications
