Removal Procedure

  1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

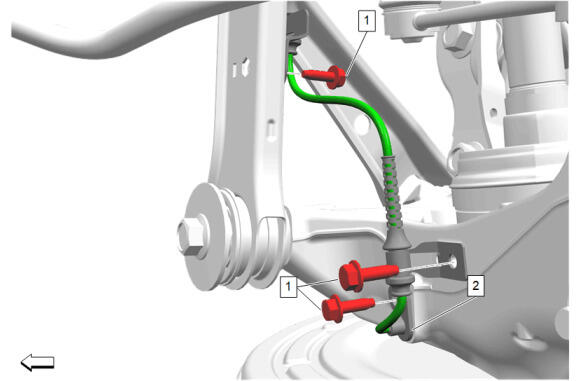

  2. GM5951462Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor Bolt (1) - Remove [3x]

  3. Rear Wheel Speed Sensor (2) @ Rear Suspension Knuckle - Remove

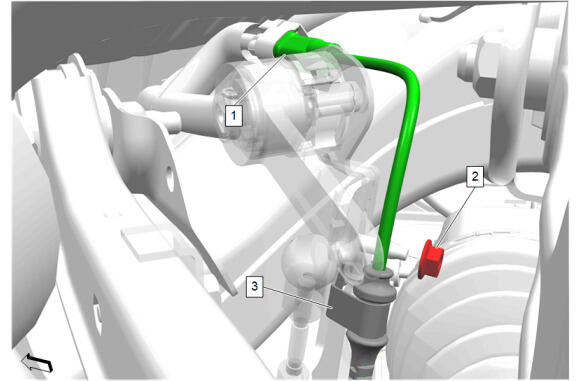

  4. GM5951463Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

  5. Wheel Speed Sensor Bracket Nut (2) - Remove
  6. Rear Wheel Speed Sensor (3) - Remove
