Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

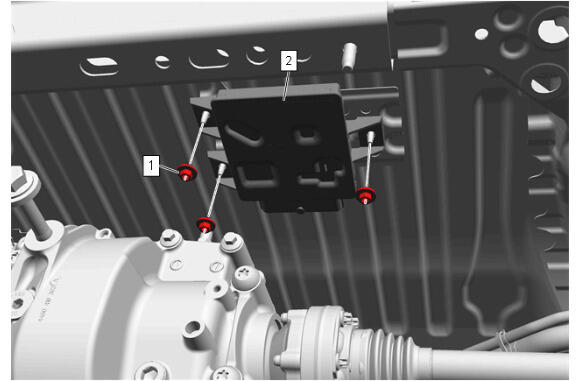

Fuel Pump Power Control Module (2) - Install

CAUTION:

Refer to Fastener Caution .

Fuel Pump Power Control Module Nut (1) - Install and tighten [3x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

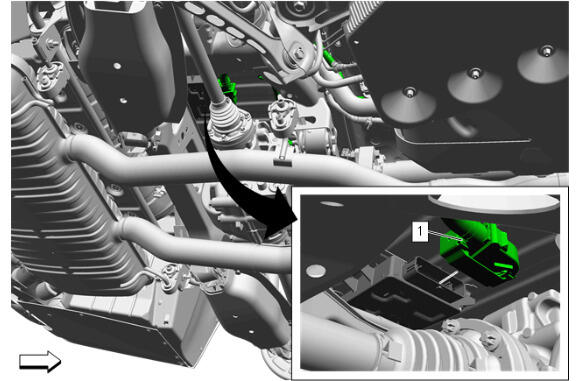

Electrical Connector (1) - Connect
