Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

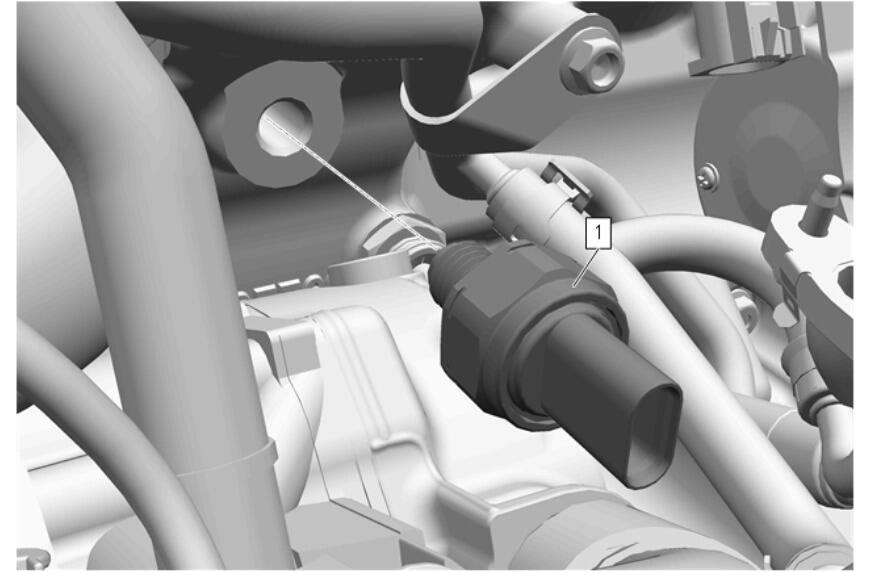

Engine Oil Pressure Sensor (1) - Install and tighten to 35 N.m (26 lb ft)
Courtesy of GENERAL MOTORS COMPANY

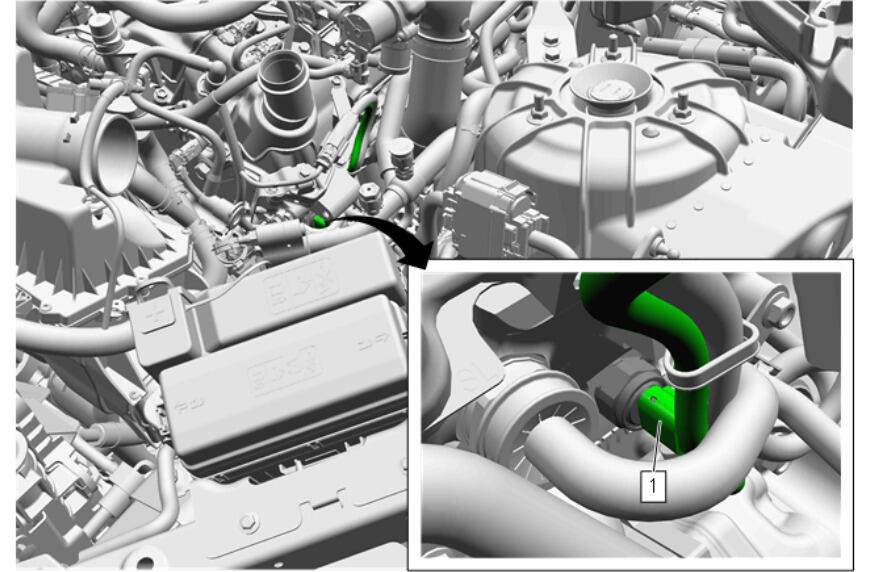

Electrical Connector (1) - Connect
Compressor Air Intake Turbocharger - Install - Compressor Air Intake Turbocharger Replacement - Right Side
