Installation Procedure

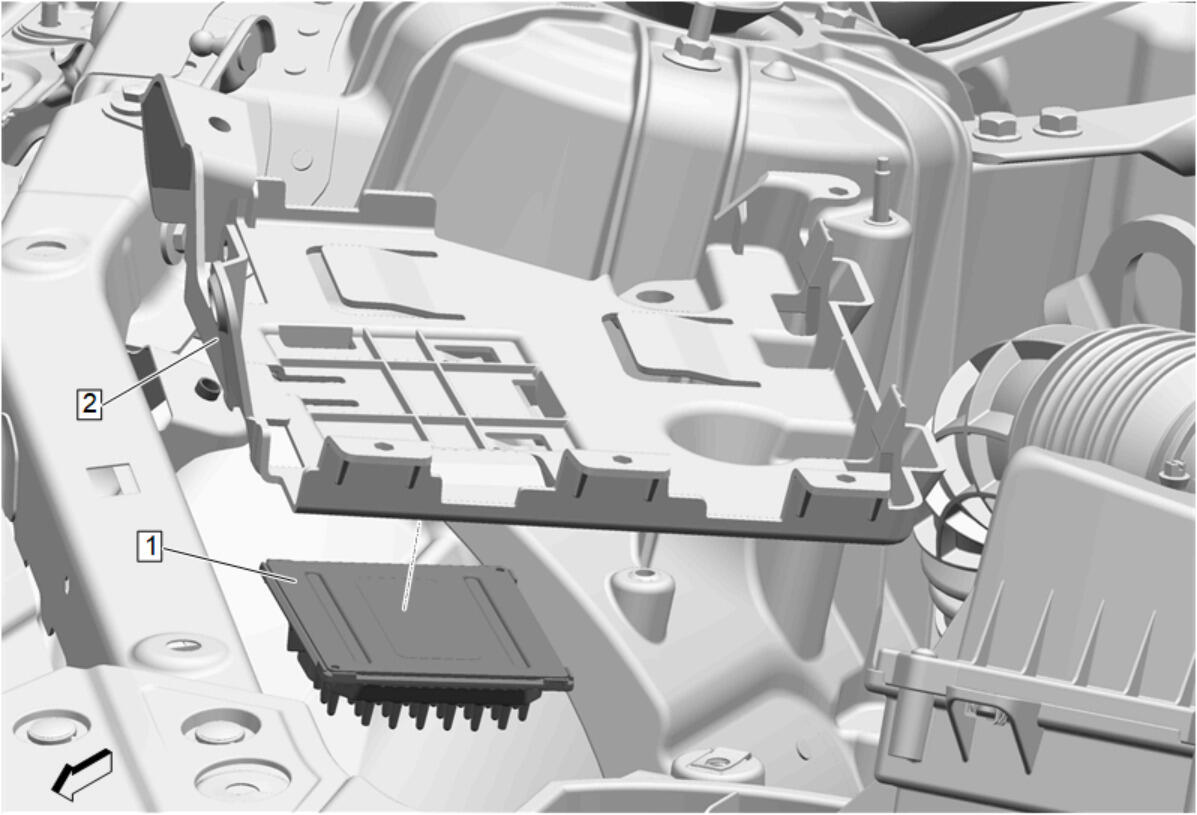

  1. GM5412659Courtesy of GENERAL MOTORS COMPANY

    Install transmission control module (1) to the engine control module bracket (2).

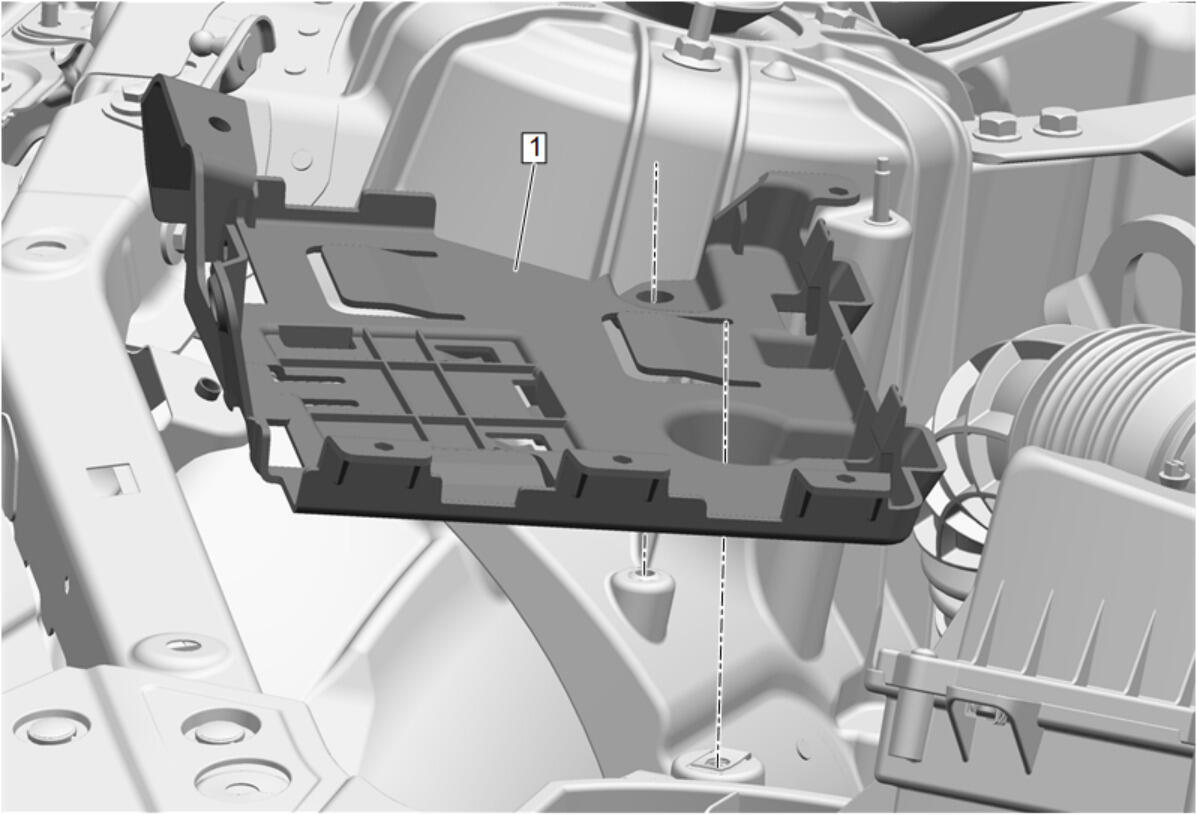

  2. GM5412647Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket (1) - Install

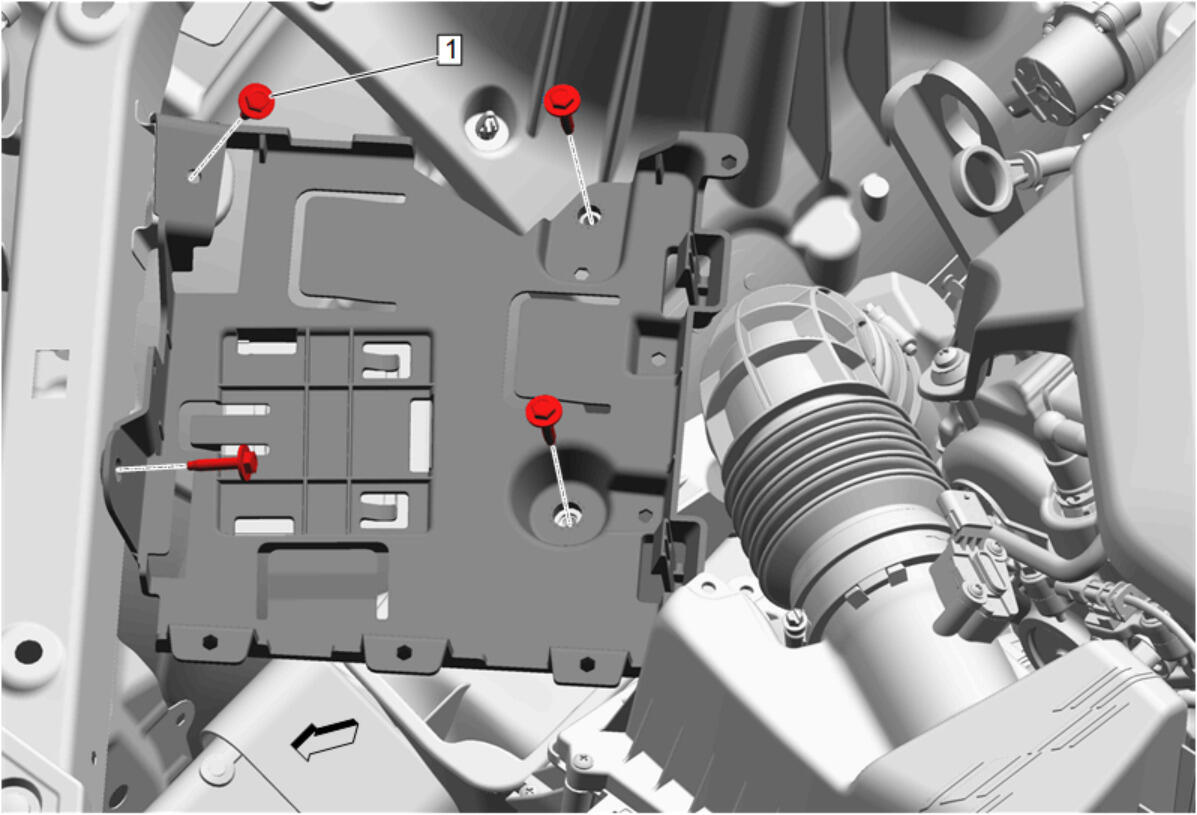

  3. GM5412645Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Engine Control Module Bracket Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)

  4. Install all retainers to the engine control module bracket.

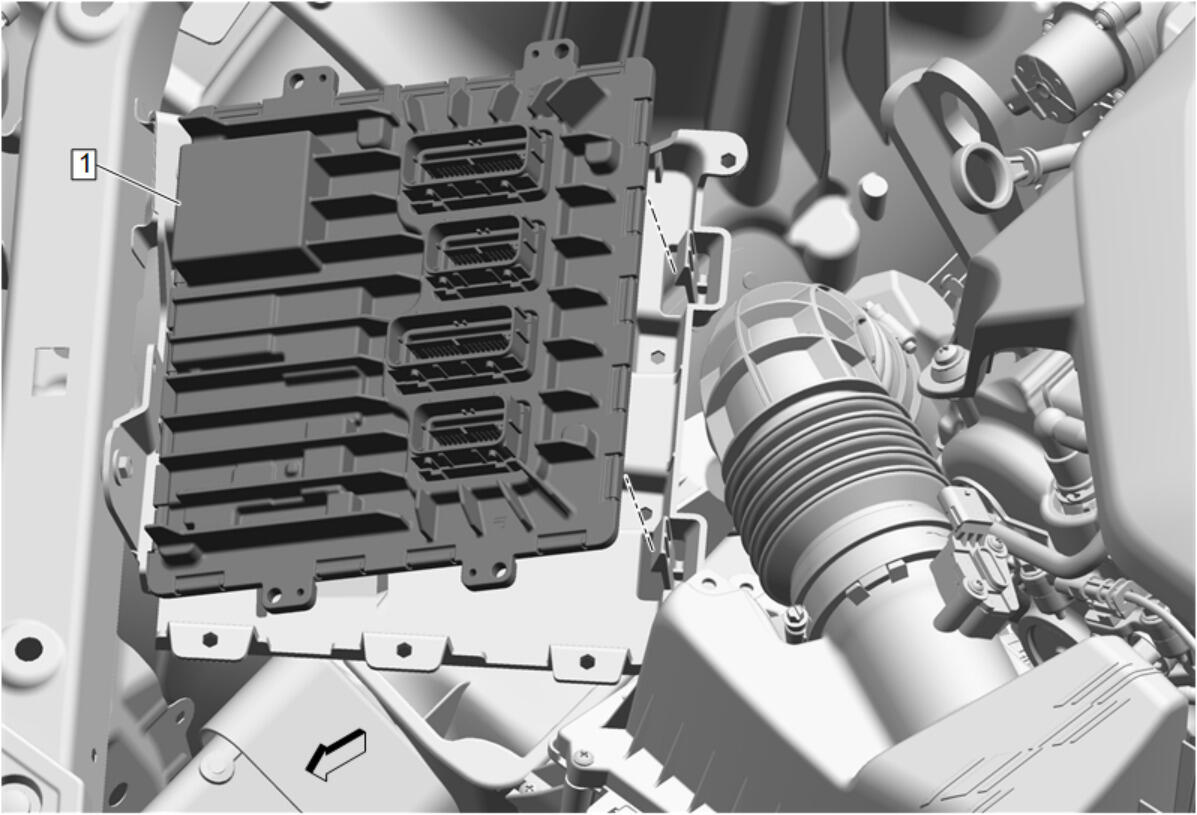

  5. GM5413110Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) - Install - Engine Control Module Replacement
