Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Place vehicle in alignment mode. Alignment Mode Selection
Courtesy of GENERAL MOTORS COMPANY

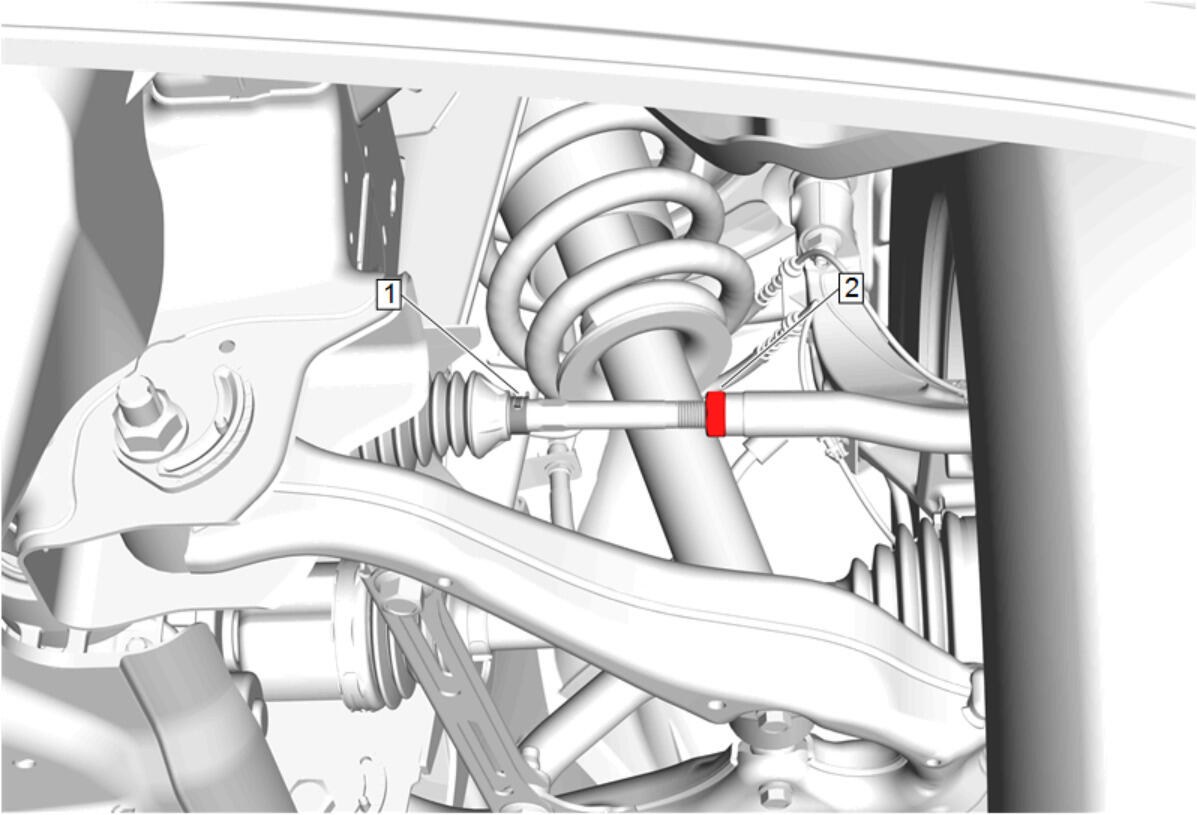

Steering Gear Boot Clamp (1) - Disengage
Steering Linkage Inner Tie Rod Nut (2) - Loosen
Courtesy of GENERAL MOTORS COMPANY

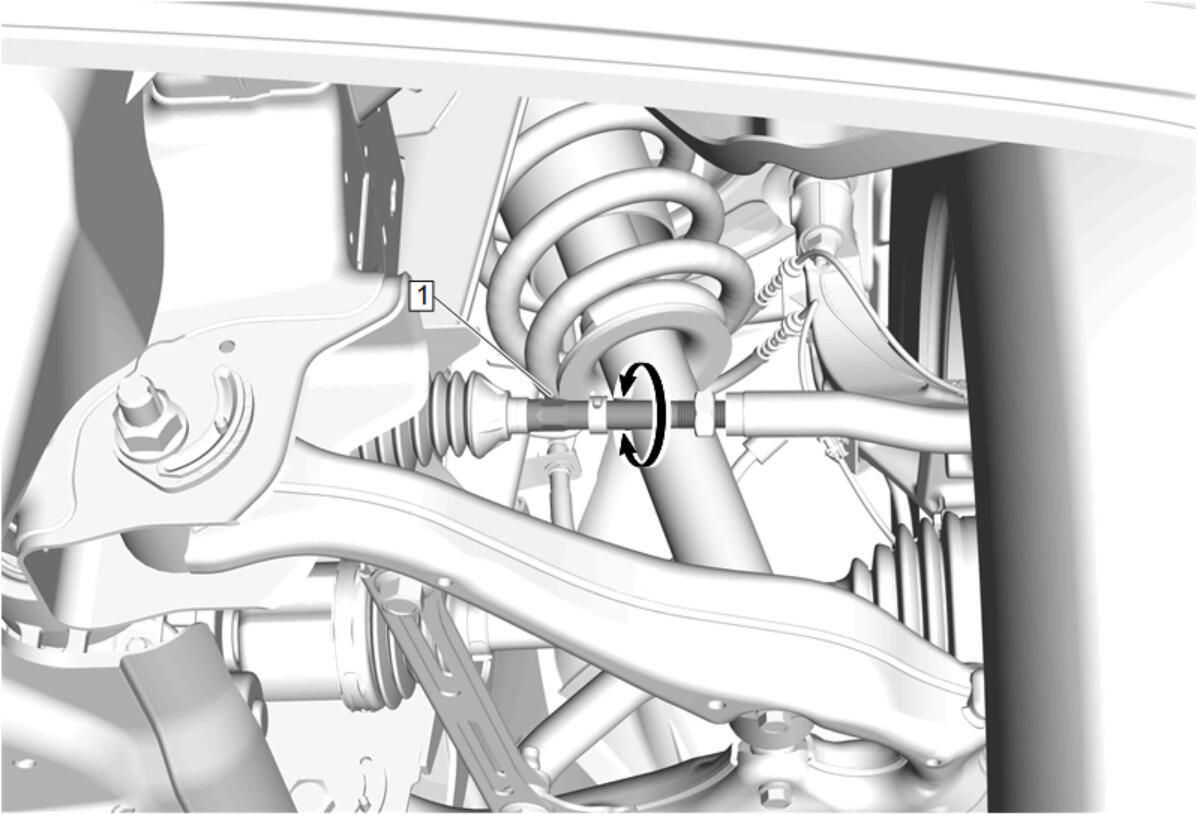

Rotate the inner tie rod (1) as necessary to achieve the required toe specification setting. Wheel Alignment Specifications
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Steering Linkage Inner Tie Rod Nut (2) - Tighten - Fastener Specifications
Steering Gear Boot Clamp (1) - Engage
Check the toe setting after tightening.
Re-adjust the toe setting if necessary.
Center the steering wheel position sensor. Steering Wheel Position Sensor Centering
