Fastener Specifications
NOTE:

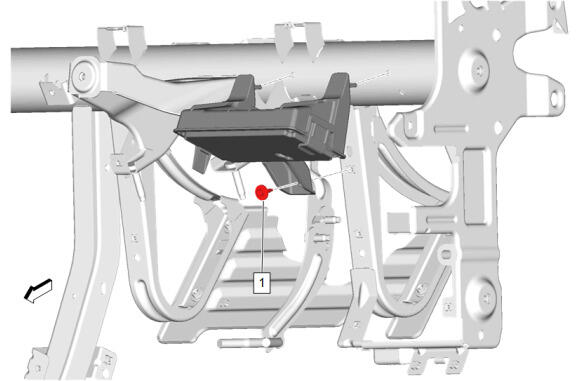

Callouts in the following chart represent components shown in graphic above.
Driver Monitoring System Camera Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Driver Monitoring System Camera Bracket Bolt | - | - | 2.5 N.m (22 lb in) | Instrument Panel Tie Bar Replacement |
