Removal Procedure

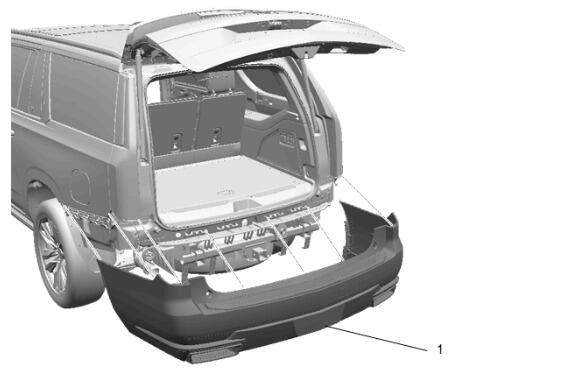

  1. GM5609988Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Remove - Rear Bumper Fascia Removal and Installation

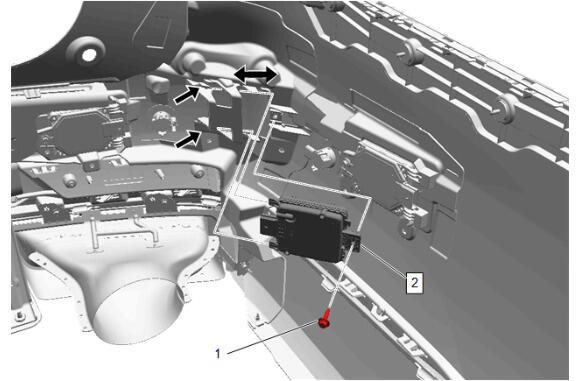

  2. GM5615298Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Side Object Sensing Alert Module Bolt (1) - Remove
  4. Release the tabs on the side object sensing alert module bracket.
  5. Side Object Sensing Alert Module (2) - Remove
