Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

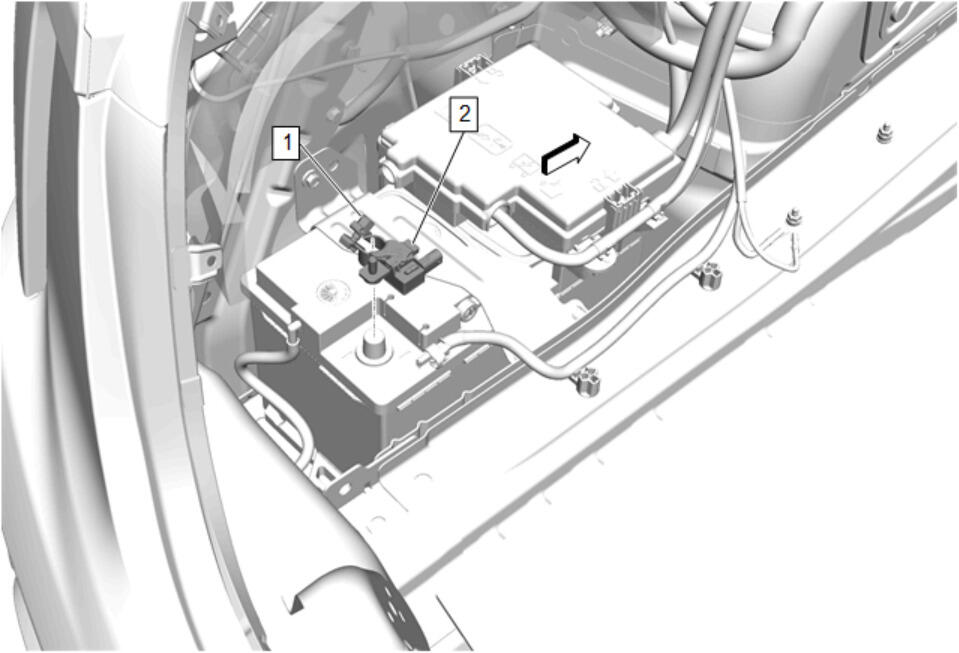

Battery Monitor Module (2) - Install

CAUTION:

Refer to Fastener Caution

Battery Post Negative Cable Clamp Nut (1) - tighten 4.5 N.m (40 lb in)
Courtesy of GENERAL MOTORS COMPANY

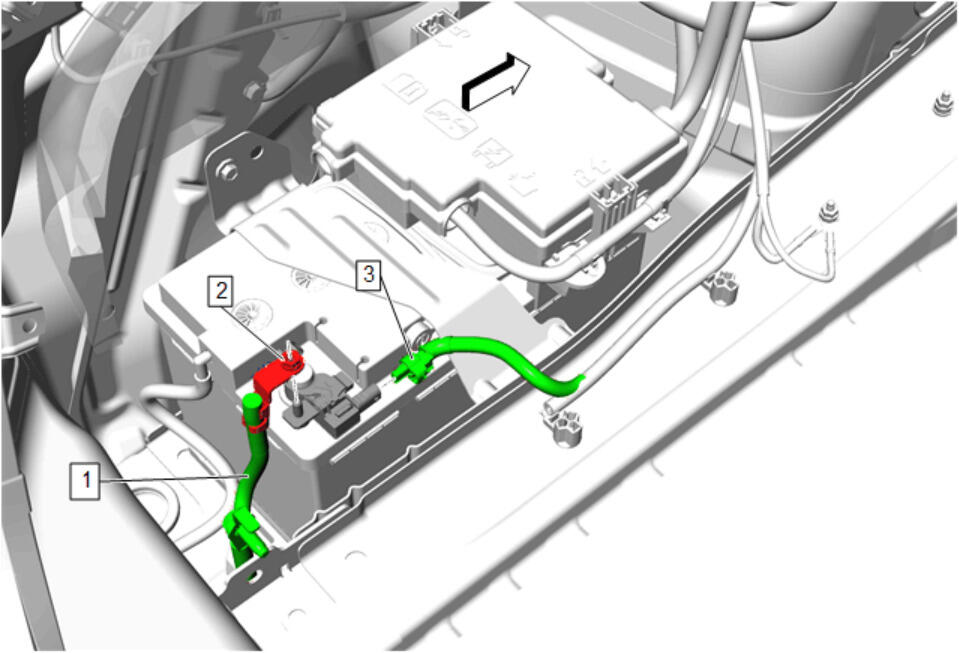

Battery Negative Cable (1) - Install
Battery Negative Cable Nut (2) @Battery Monitor Module - Install and tighten 9 N.m (80 lb in)
Electrical Connector (3) - Connect
Courtesy of GENERAL MOTORS COMPANY

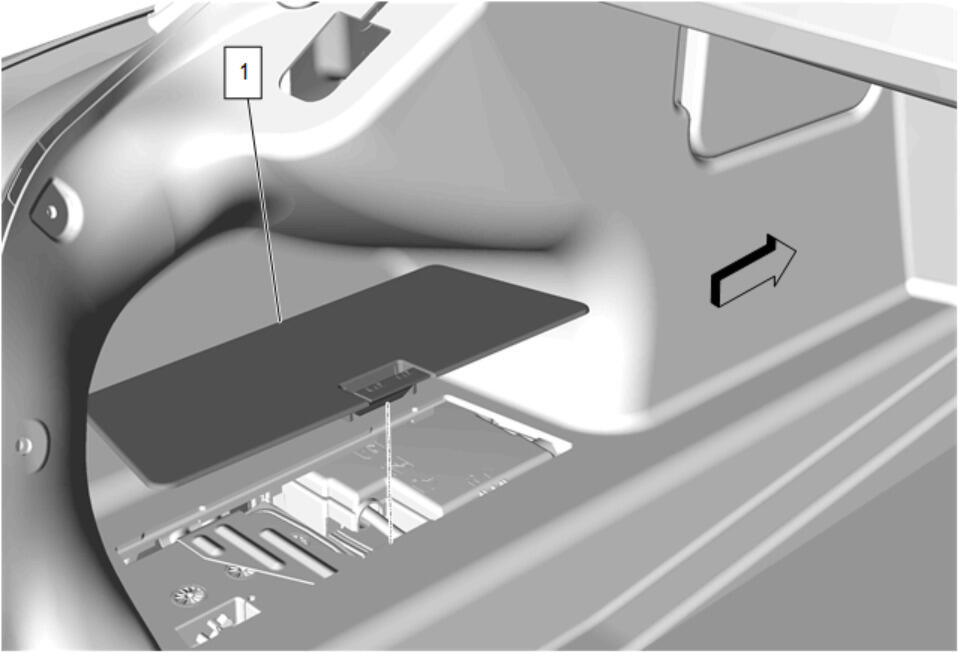

Battery Access Cover (1) - Install
