Communication Interface Module Bracket Replacement

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

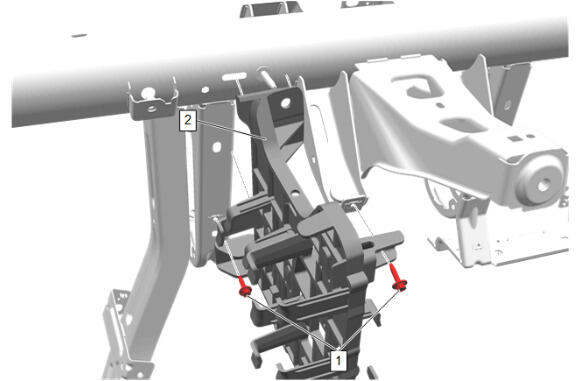

GM5035130Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Floor Front Air Outlet Duct Replacement - Left Side
  2. Instrument Panel Outer Air Outlet Duct Replacement - Left Side
1 Communication Interface Module Bracket Bolt [2x]
tighten
2.5N.m (22 lb in)
2 Communication Interface Module Bracket

Procedure

  1. Disconnect the electrical connectors.
  2. Reposition the wiring harness.
  3. Transfer components as necessary.
