Removal Procedure

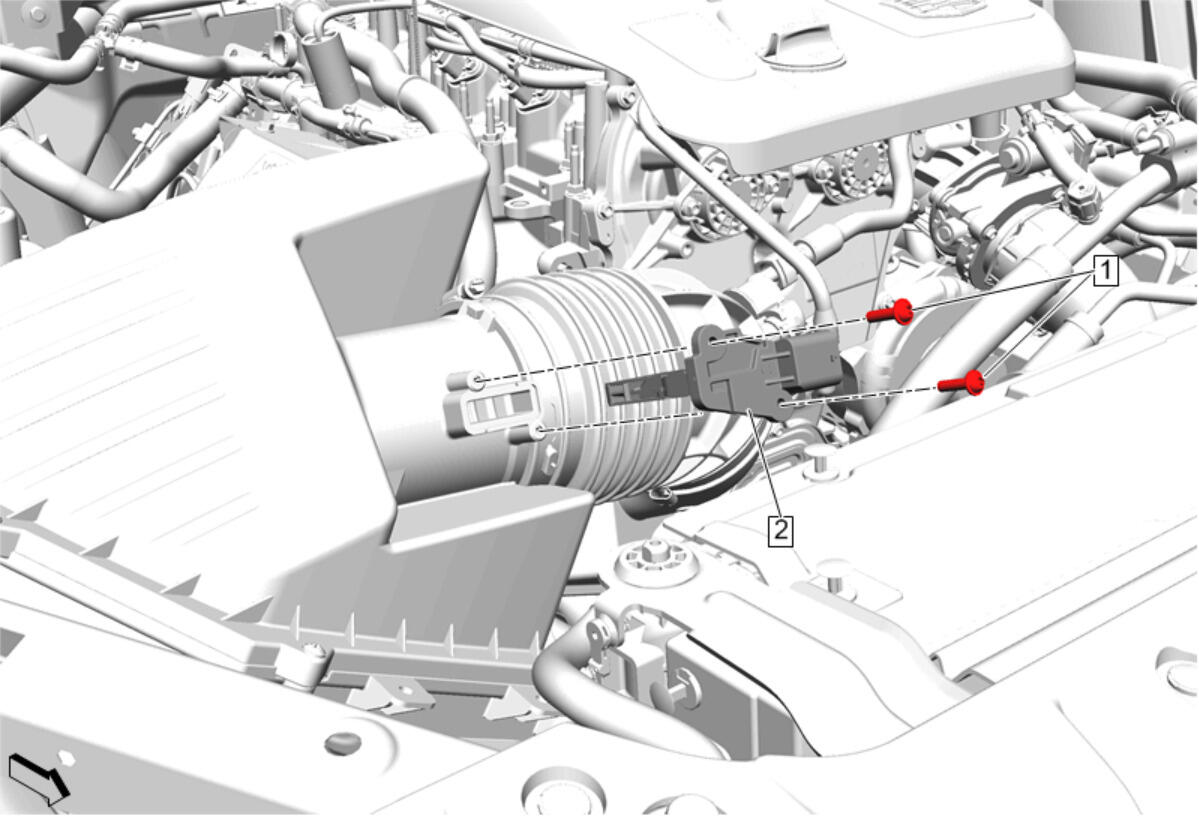

  1. GM5300222Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  2. Mass Airflow Sensor Bolt (1) - Remove [ 2x ]
  3. Mass Airflow Sensor (2) - Remove
