Rear Closure Hands Free Module Replacement

Courtesy of GENERAL MOTORS COMPANY

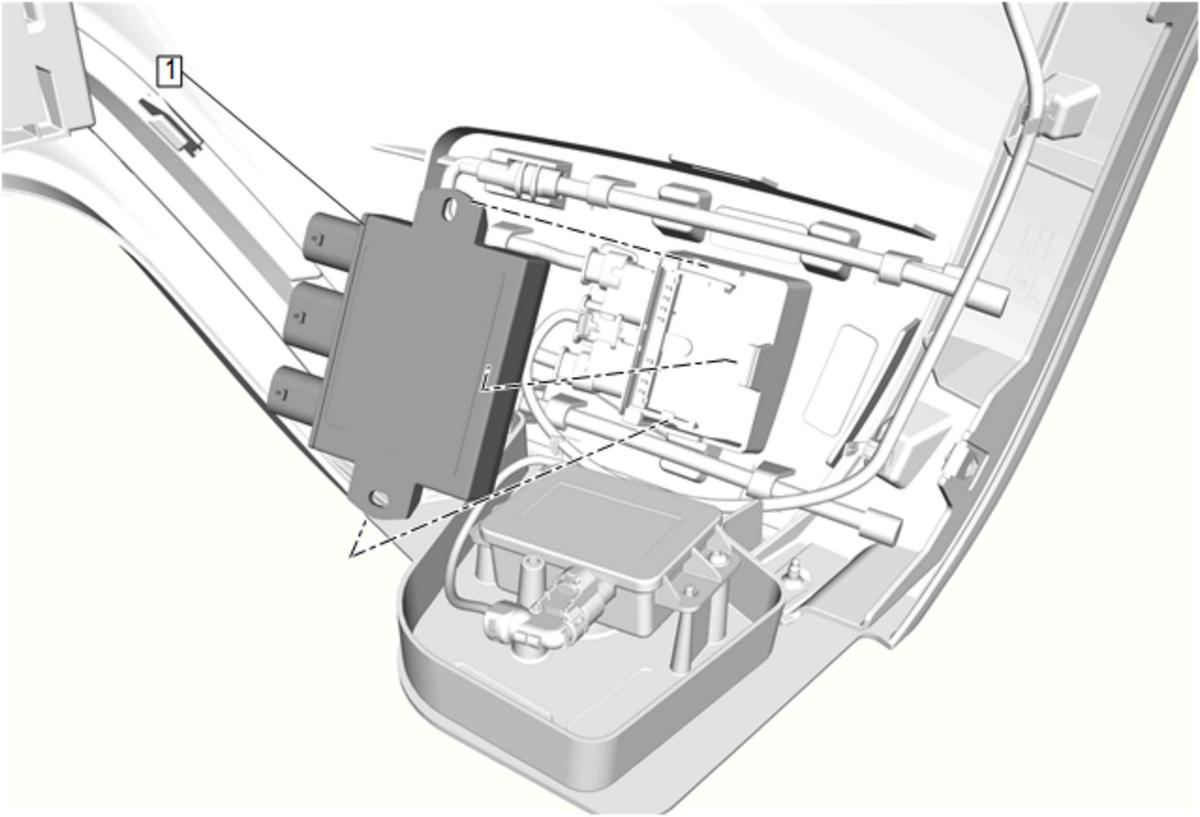

Callout	Component Name
Preliminary Procedure Rear Closure Hands Free Sensor Shield Replacement
1	Rear Closure Hands Free Module Procedure Disconnect all electrical connectors. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Rear Closure Hands Free Sensor Shield Replacement

Rear Closure Hands Free Module

Procedure

Disconnect all electrical connectors.
Release the retaining tabs.
