Remote Function Wiring Schematics
>>
Keyless Entry - Passive, and Keyless Start
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

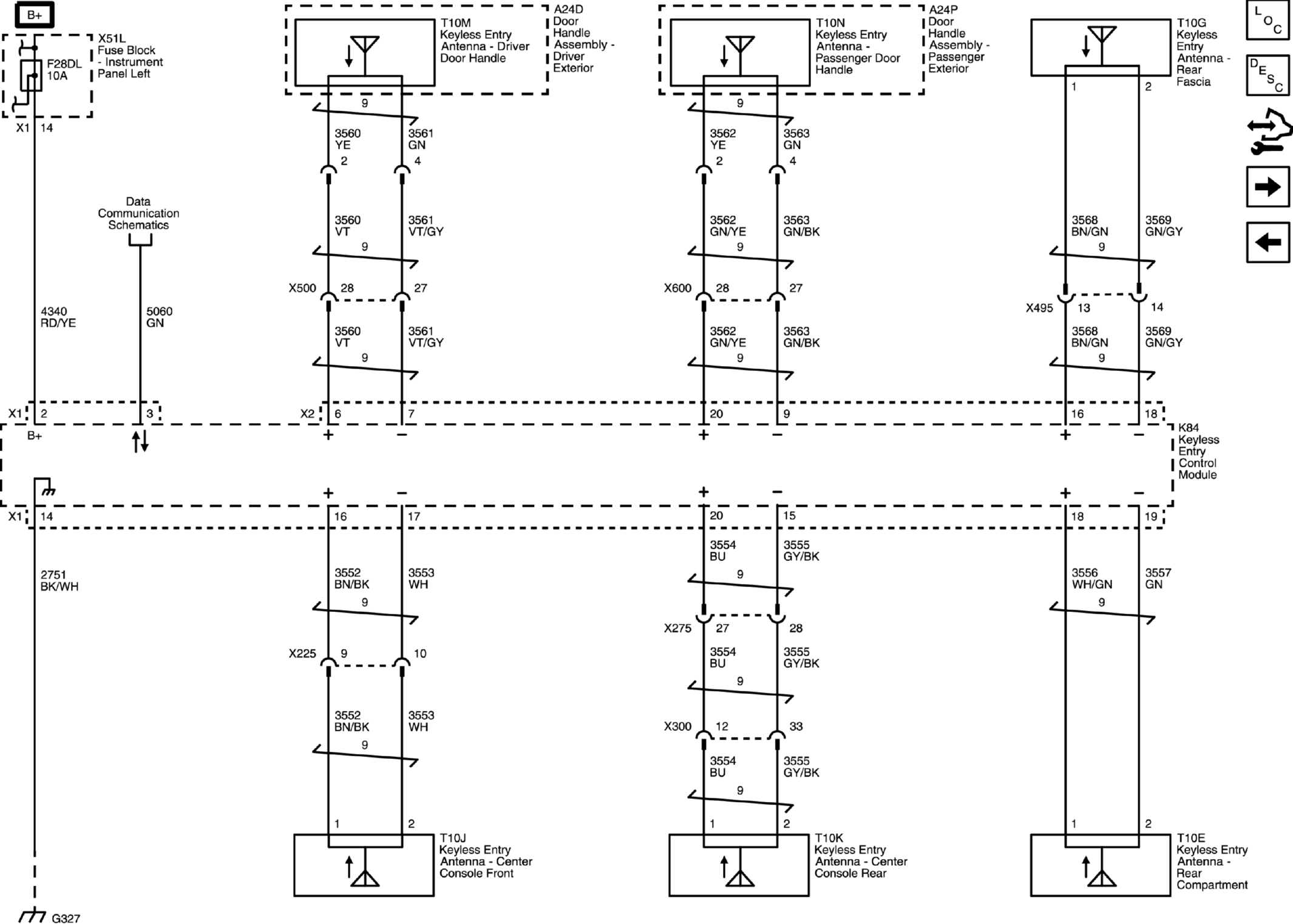

Keyless Entry - Passive, and Keyless Start
Courtesy of GENERAL MOTORS COMPANY
