Chassis Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

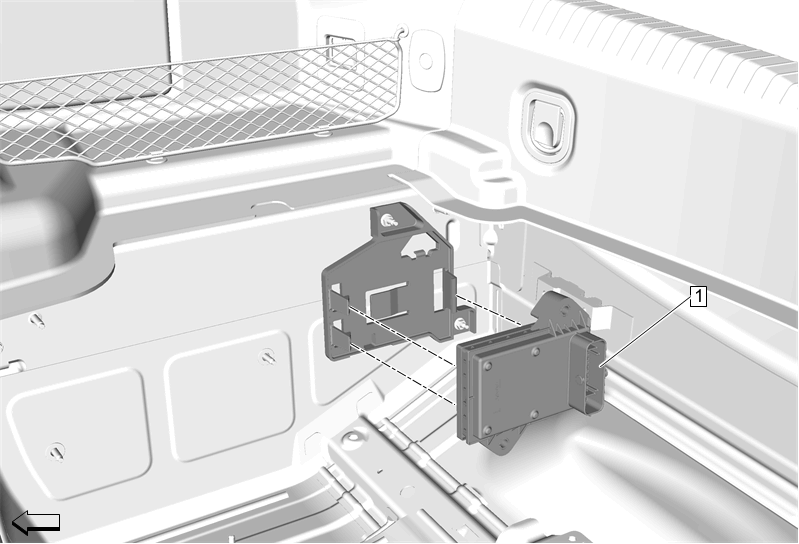

Callout	Component Name
Preliminary Procedure Rear Compartment Floor Stowage Compartment Cover Replacement
1	Chassis Control Module Procedure Disconnect the electrical connector. Release retaining tabs to remove module from bracket. If replacing, reprogram the module. Control Module References

Callout

Component Name

Preliminary Procedure
Rear Compartment Floor Stowage Compartment Cover Replacement

Chassis Control Module

Procedure

Disconnect the electrical connector.
Release retaining tabs to remove module from bracket.
If replacing, reprogram the module. Control Module References
