Schematic Engine Exhaust Flow Control (LTA)
>>
Exhaust System Schematics
>>
Engine Exhaust Flow Control (LTA)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

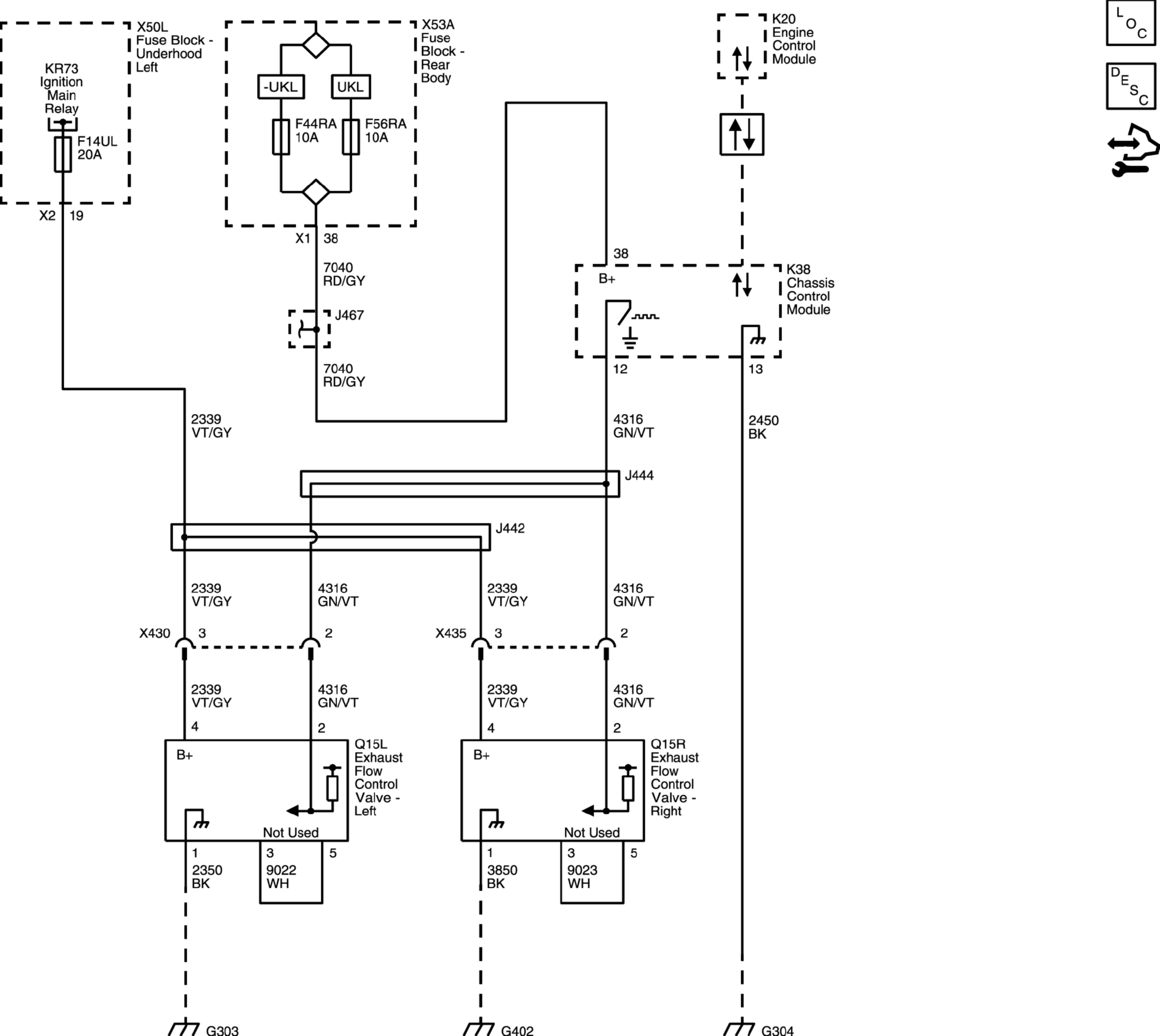

Engine Exhaust Flow Control (LTA)
Courtesy of GENERAL MOTORS COMPANY
