Audio/Video Interface Module Replacement

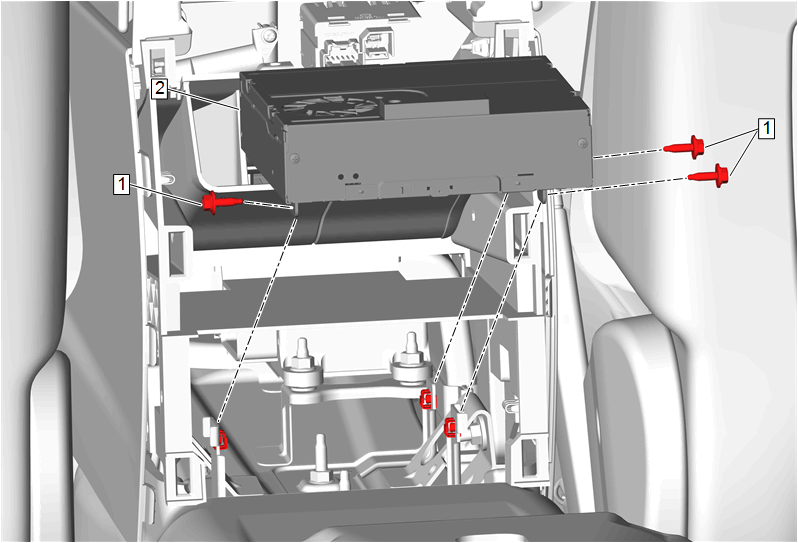

GM5119218
Callout Component Name
Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement
1 Video Player Bolt [3x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Audio/Video Interface Module
Procedure
Disconnect the electrical connectors.
