Radio Rear Speaker Replacement
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

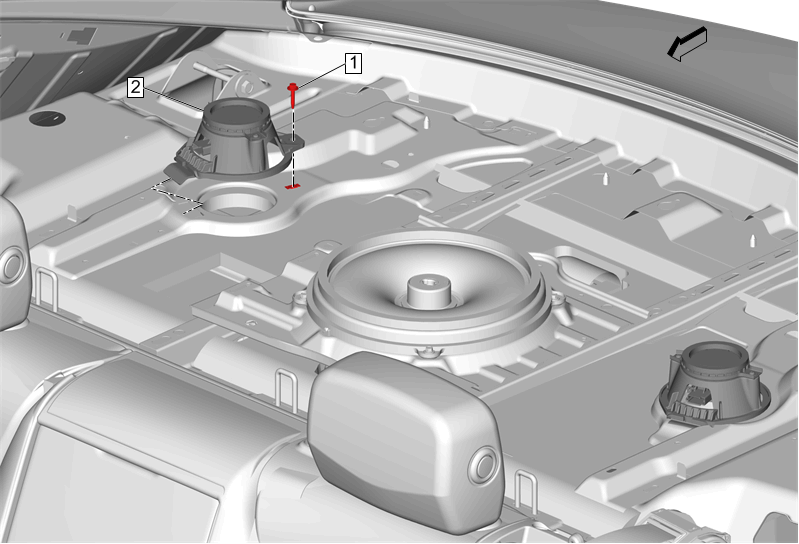

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Window Panel Trim Replacement (Without DB3)Rear Window Panel Trim Replacement (With DB3) |
|
| 1 | Radio Rear Speaker Fastener
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Rear Speaker Procedure Disconnect the electrical connector. |
