Steering Wheel Replacement

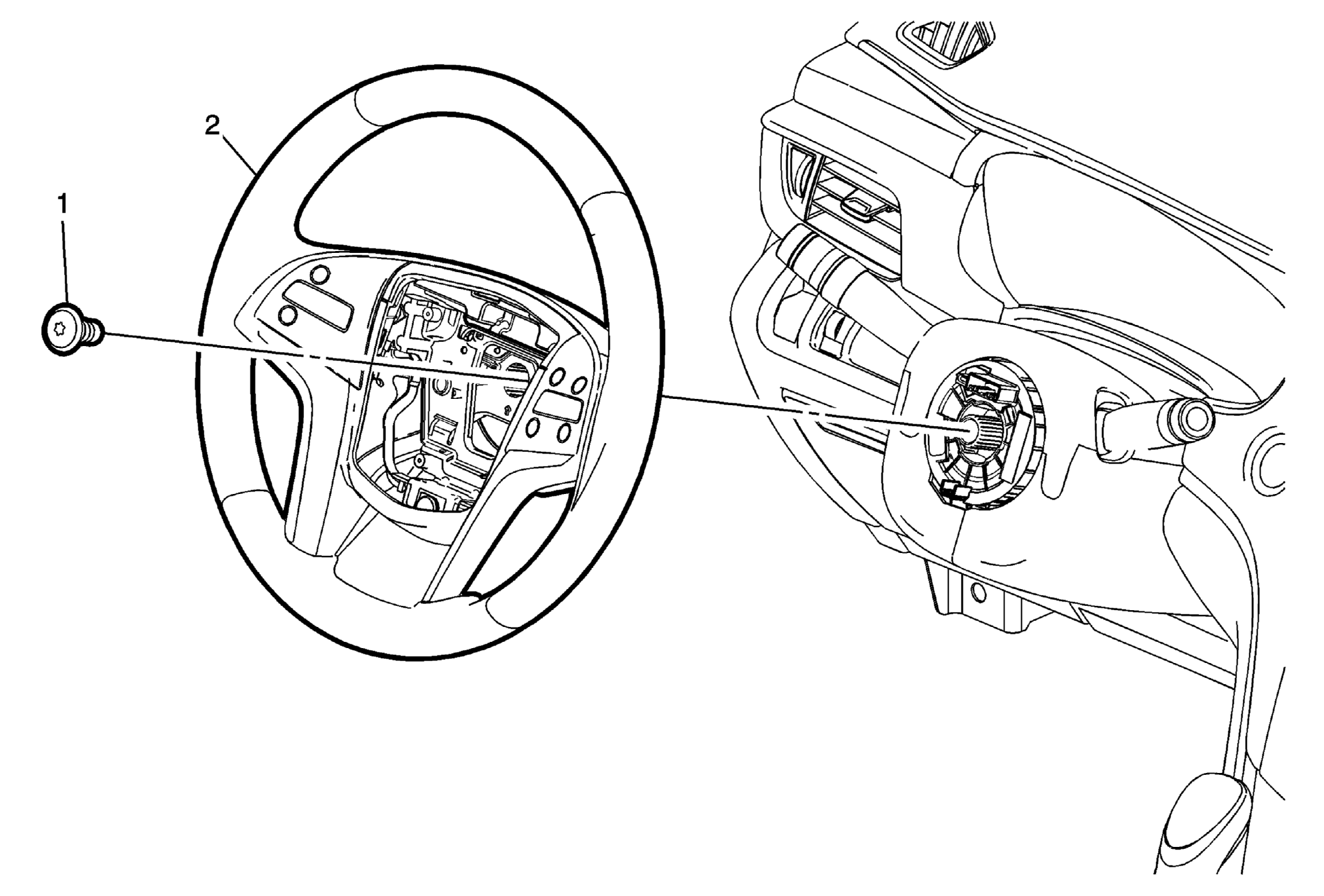

GM2768330

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Steering Wheel Airbag Replacement

1

Steering Wheel Bolt

CAUTION:

Refer to Fastener Caution .

Procedure

Clean the threads of the bolt and mating threads with denatured alcohol or equivalent and allow to dry.
Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers

Tighten
45 N.m (33 lb ft)

2

Steering Wheel

Procedure

Disconnect the electrical connectors.
Install the steering wheel bolt until 2 to 3 threads are engaged.
Wiggle the steering wheel until the wheel disengages completely.
Steering Wheel Bolt - Remove
Steering Wheel - Remove
Transfer components as necessary.
