Steering Column Lower Trim Cover Replacement

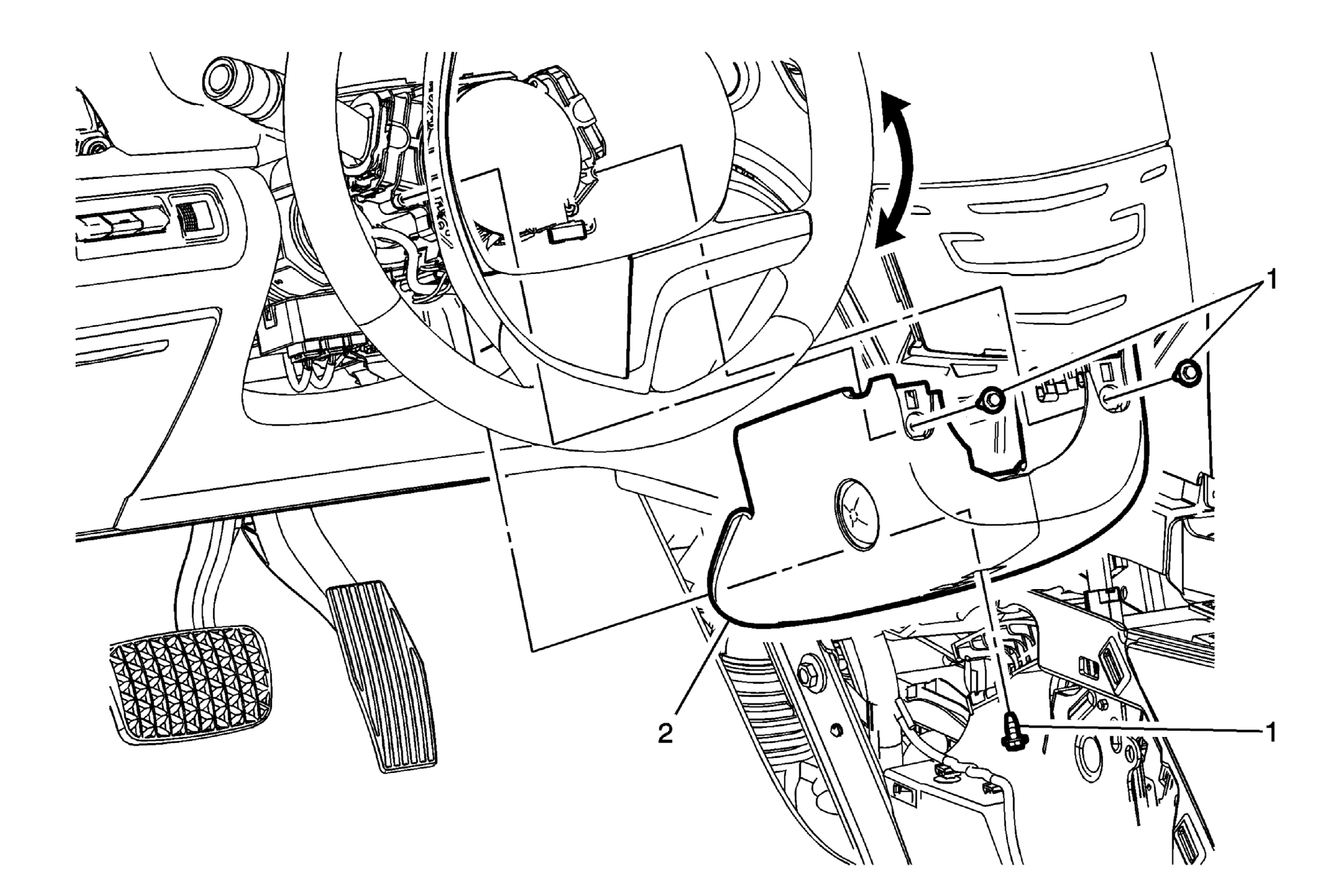

GM2756300Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1 Steering Column Lower Trim Cover Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Steering Column Lower Trim Cover

Procedure

  1. Rotate the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket.
  2. Disconnect the electrical connector.
