Front Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Removal and Installation .

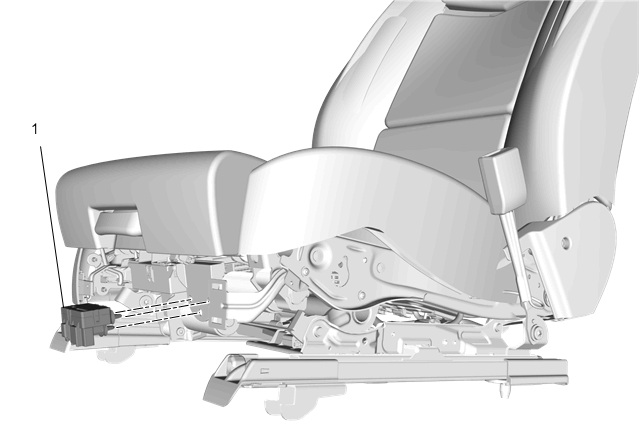

1	Front Seat Heater Control Module Procedure Disconnect the electrical connectors. Remove the module from the heater control module bracket. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Remove the front seat. Refer to Front Seat Removal and Installation .

Front Seat Heater Control Module

Procedure

Disconnect the electrical connectors.
Remove the module from the heater control module bracket.
Refer to Control Module References for programing and setup information.
