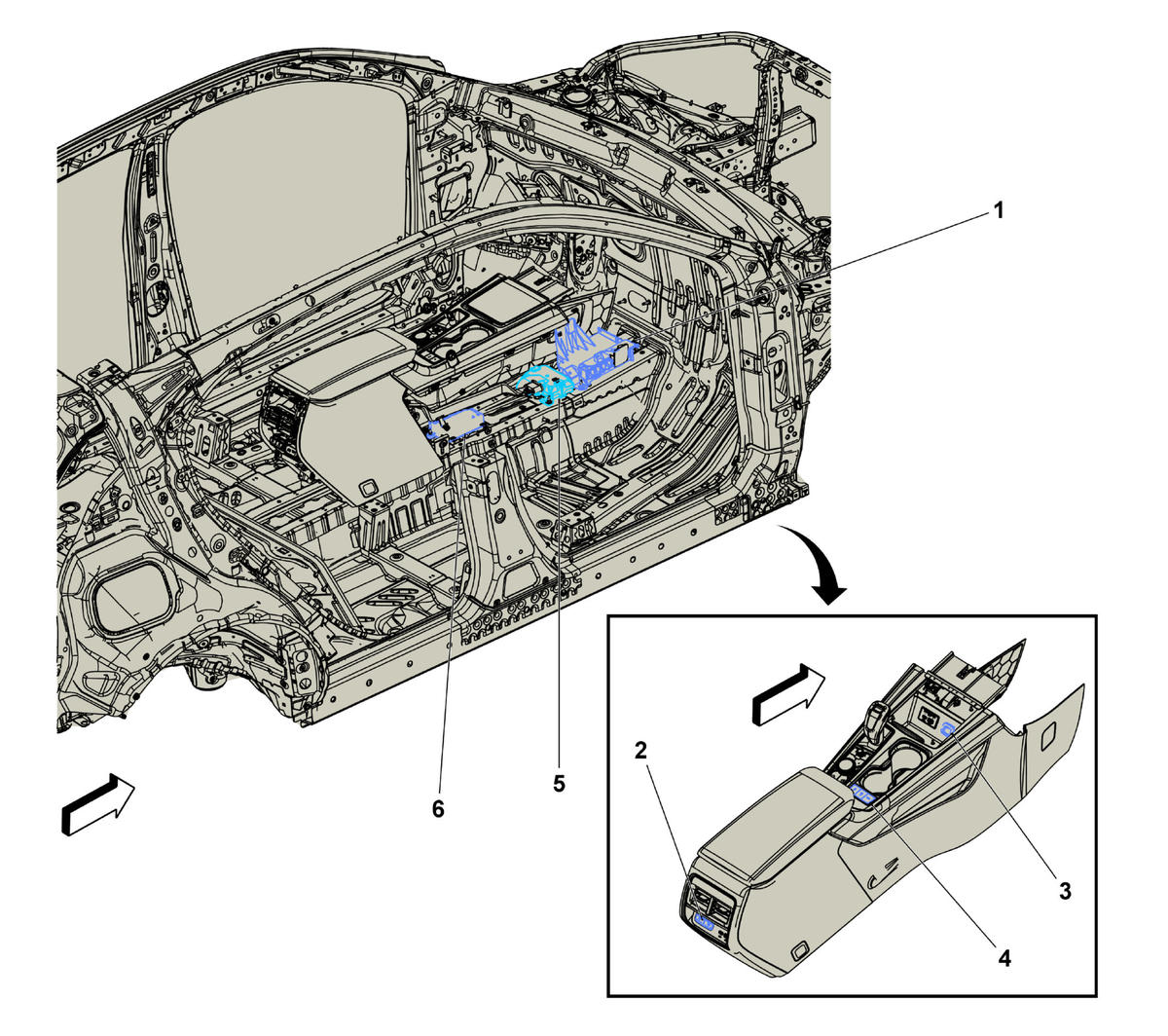

Right Side of the Center Console
| Items |
|---|
| 1. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 |
| 2. S32 Seat Heating Switch (KA6) S32 Seat Heating Switch |
| 3. E32 Cigarette Lighter Receptacle (DT4) E32 Cigarette Lighter Receptacle (DT4) |
| 4. S126 Drive Mode Select Switch S126 Drive Mode Select Switch |
| 5. T19 Power Supply Transformer T19 Power Supply Transformer |
| 6. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 |
