Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection

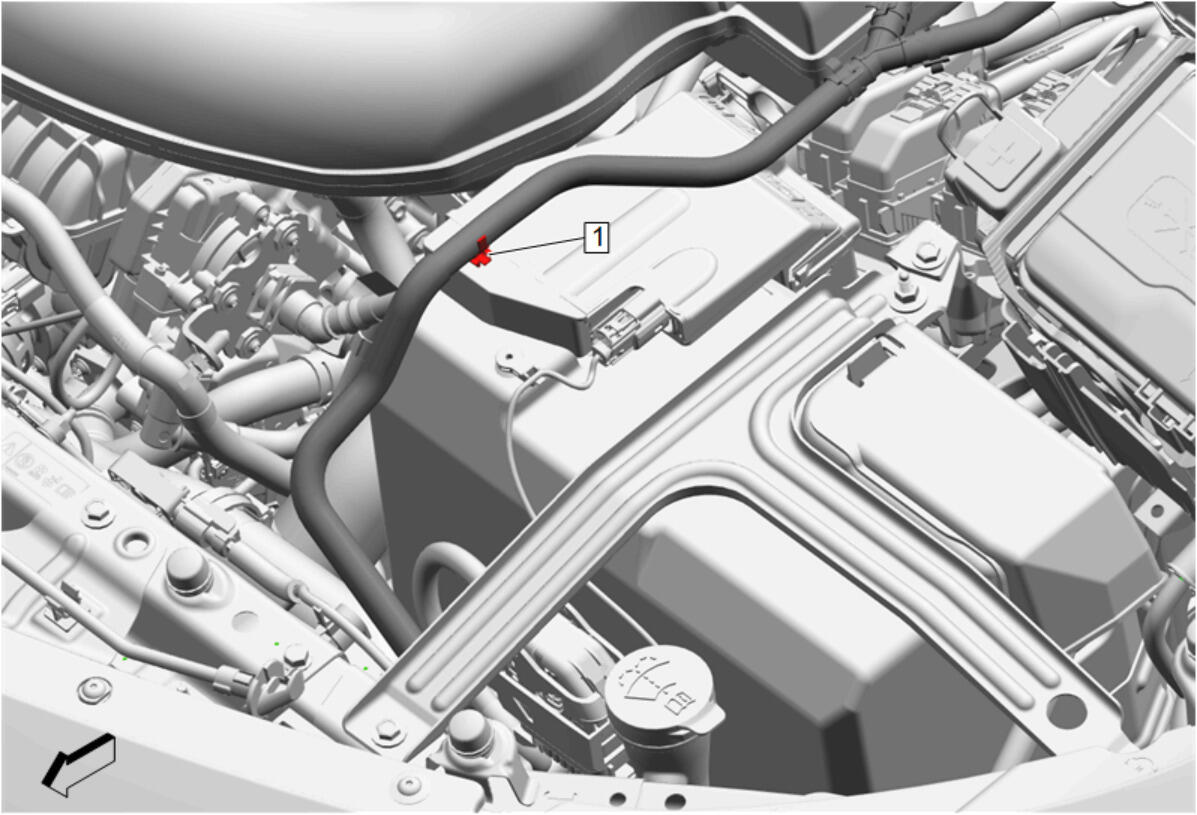

  2. Engine Coolant Air Bleed Hose Clip (1) - Remove
    GM5141622Courtesy of GENERAL MOTORS COMPANY
  3. Battery Upper Cover (1) - Remove - Battery Upper Cover Replacement
    GM5053769Courtesy of GENERAL MOTORS COMPANY
  4. Battery Hold Down Retainer Bolt (1) - Remove
    GM5053823Courtesy of GENERAL MOTORS COMPANY
  5. Battery Hold Down Retainer (2) - Remove
  6. Battery (1) - Remove
    GM5053824Courtesy of GENERAL MOTORS COMPANY
