Installation Procedure

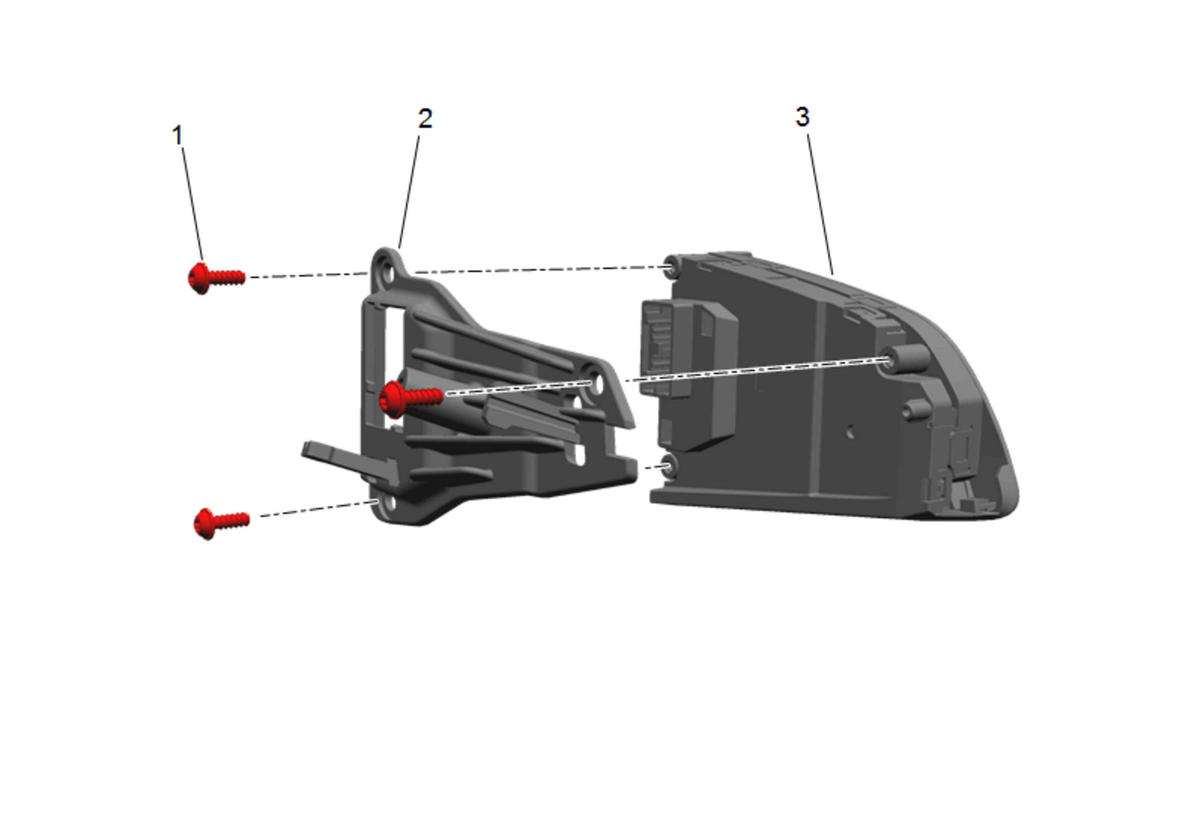

  1. Install the cruise control switch (3) to the cruise control switch bracket (2).
    GM5038989Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Fastener Caution .

  2. Install the 3 cruise control switch screws (1) and tighten to 1.1 N.m (10 lb in).

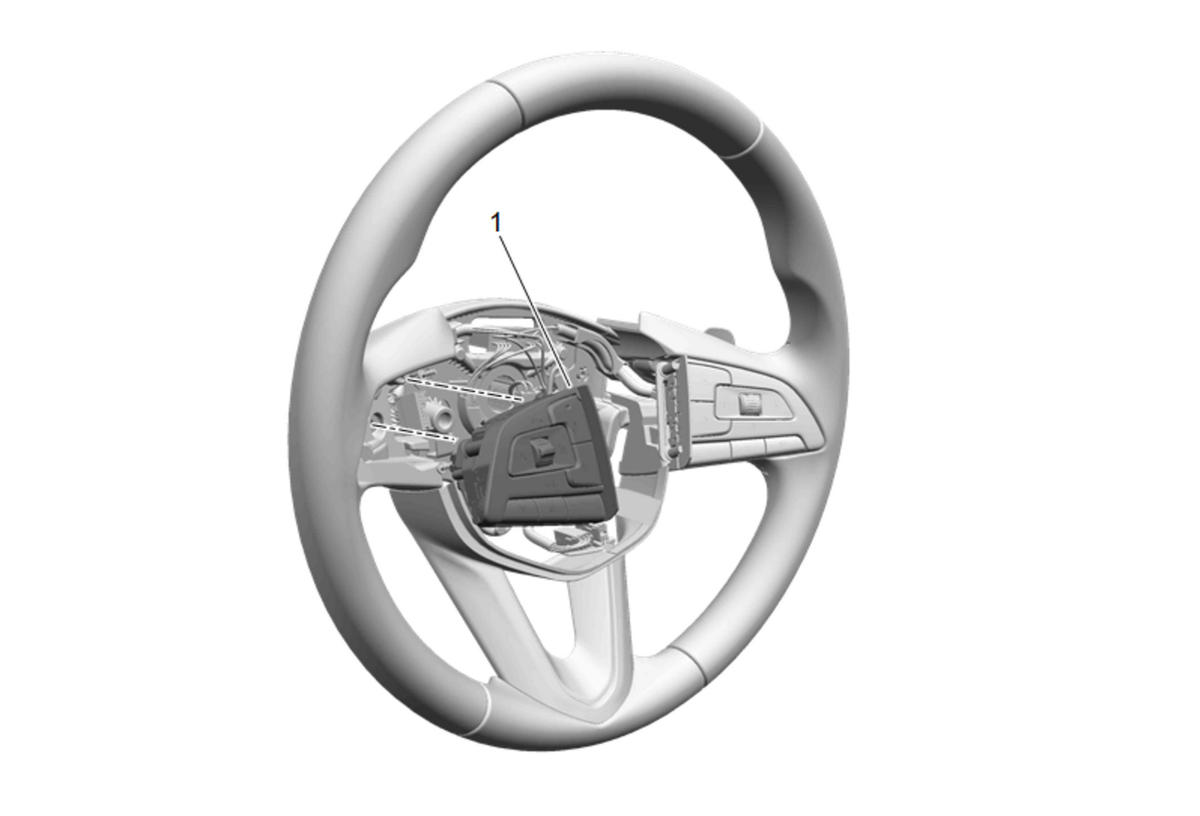

  3. Cruise Control Switch (1) - Install
    GM5038910Courtesy of GENERAL MOTORS COMPANY
  4. Connect the electrical connector.

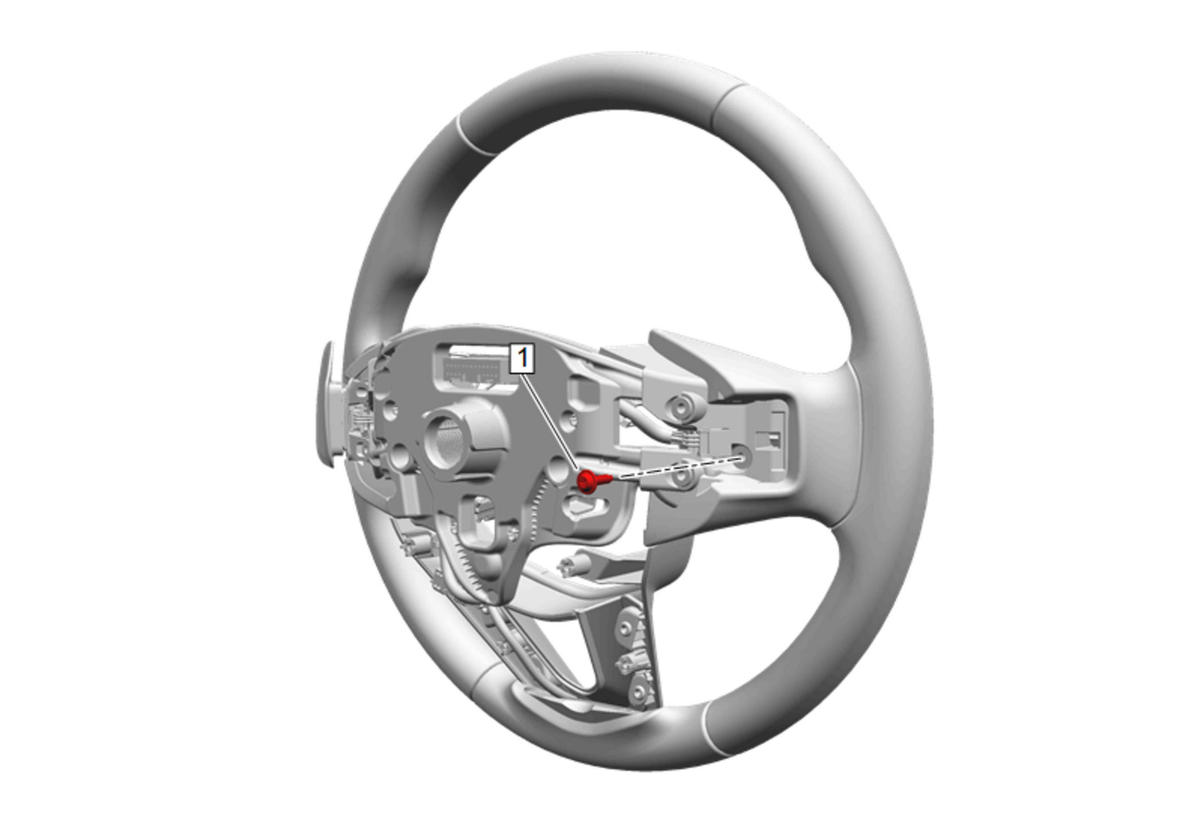

  5. Install the cruise control switch bracket screw (1) and tighten to 1.1 N.m (10 lb in).
    GM5038895Courtesy of GENERAL MOTORS COMPANY

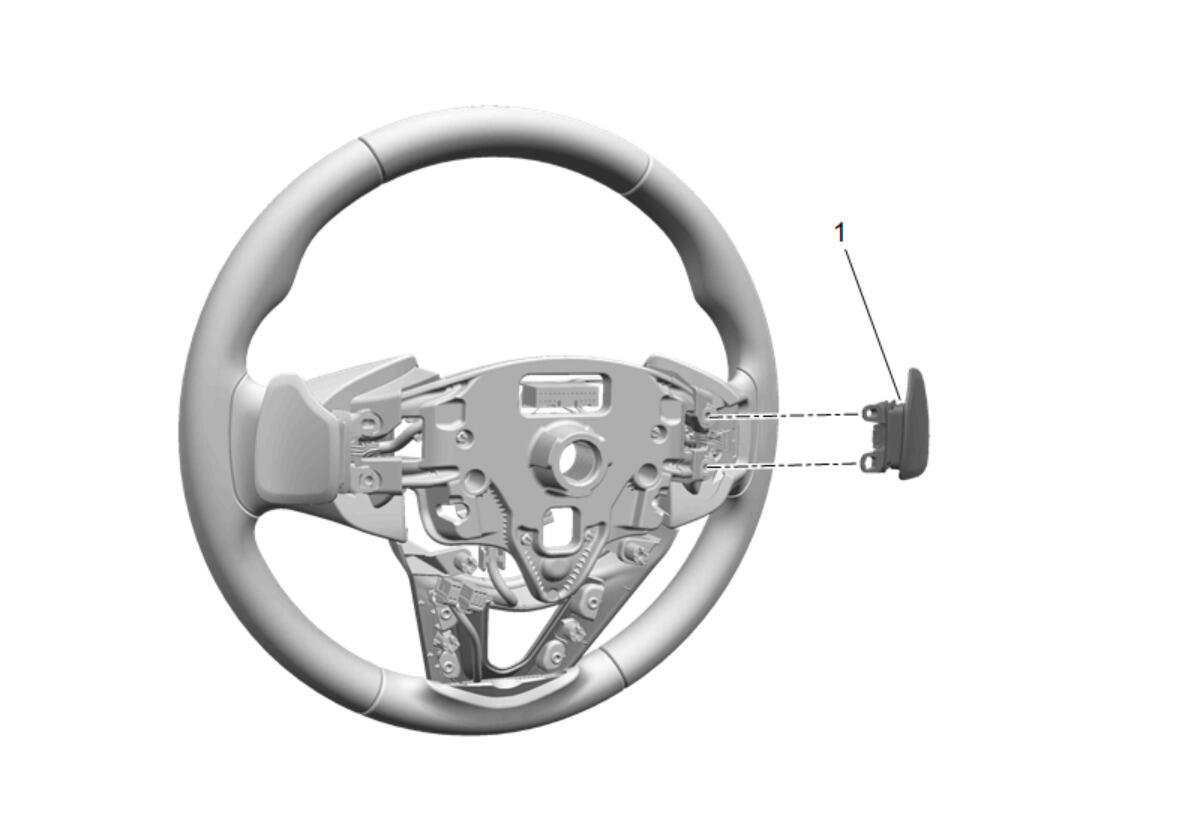

  6. Install the manual shift auxiliary position switch - steering wheel (1). Automatic Transmission Manual Shift Auxiliary Position Switch Replacement (Tap up) , or Automatic Transmission Manual Shift Auxiliary Position Switch Replacement (Tap down)
    GM5035275Courtesy of GENERAL MOTORS COMPANY
  7. Steering Wheel Shroud (1) - Install - Steering Wheel Shroud Replacement
    GM5035042Courtesy of GENERAL MOTORS COMPANY
  8. Install the steering wheel. (1) Steering Wheel Replacement
    GM5034996Courtesy of GENERAL MOTORS COMPANY
  9. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
  10. Install the steering wheel airbag access hole cover (1). Steering Wheel Airbag Access Hole Cover Replacement
    GM5034932Courtesy of GENERAL MOTORS COMPANY
