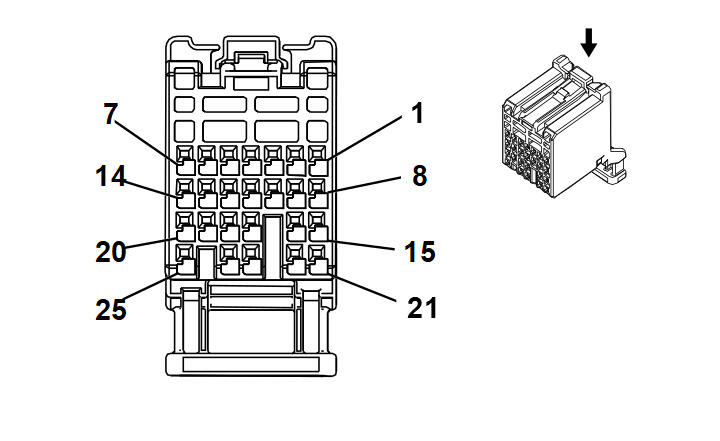

K9 Body Control Module X3
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Steering Column
- OEM Connector: HATTPB-25-3C-LM
- Service Connector: Service by Harness - See Part Catalog
- Description: 25-Way F 0.64 Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/GY |
3277 |
Vehicle Anti-Theft System Immobilizer Low Reference |
I |
- |
| 2 |
0.5 |
GN/VT |
7533 |
Local Interconnect Network Serial Data Bus 11 |
I |
- |
| 3 |
0.5 |
GY/BK |
3276 |
Vehicle Anti-Theft System Immobilizer Control |
I |
- |
| 4 |
0.5 |
WH/RD |
1444 |
12V Reference |
I |
- |
| 5 |
0.5 |
VT/YE |
4 |
Accessory Ignition Voltage |
I |
- |
| 6 |
0.5 |
VT/BK |
3 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 7 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
BN/GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 10 |
0.5 |
BK/GY |
6009 |
Windshield Wiper Switch Low Reference |
I |
- |
| 11 |
0.5 |
WH |
524 |
Headlamp Dimmer Switch High Beam Signal |
I |
- |
| 12 |
0.5 |
WH/GN |
663 |
Hazard Switch Left Turn Signal |
I |
- |
| 13 |
0.5 |
YE/BU |
1714 |
Windshield Wiper Switch Low Signal |
I |
- |
| 14 |
0.5 |
BU/GY |
553 |
Shift Select Switch Performance Signal |
I |
- |
| 15 |
0.5 |
WH/VT |
1020 |
Off/Run/Crank Ignition Voltage |
I |
-BTM |
| 16 |
0.5 |
GY/GN |
5737 |
Adaptive Cruise Control Gap Up/Down Switch Signal |
I |
- |
| 17 |
0.5 |
YE/BN |
307 |
Headlamp Switch Flash To Pass Signal |
I |
- |
| 18 |
0.5 |
GN/WH |
3287 |
Horn Switch Signal |
I |
- |
| 19 |
0.5 |
OG |
7527 |
Local Interconnect Network Serial Data Bus 5 |
I |
- |
| 20 |
0.5 |
GY |
1715 |
Windshield Wiper Switch High Signal |
I |
- |
| 21 |
0.5 |
VT/YE |
5526 |
Tap Up/Tap Down Switch Signal |
I |
- |
| 22 |
0.5 |
WH/BK |
1073 |
Ignition Key Resistor Signal |
I |
-BTM |
| 23 |
0.5 |
GY/YE |
7595 |
Auto Wiper On Signal |
I |
- |
| 24 |
0.5 |
VT/BU |
664 |
Hazard Switch Right Turn Signal |
I |
- |
| 25 |
0.5 |
WH/BK |
94 |
Windshield Washer Switch Signal |
I |
- |
