Vehicle Stability Control System Switch Replacement (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Plate Applique Replacement (Cadillac) .

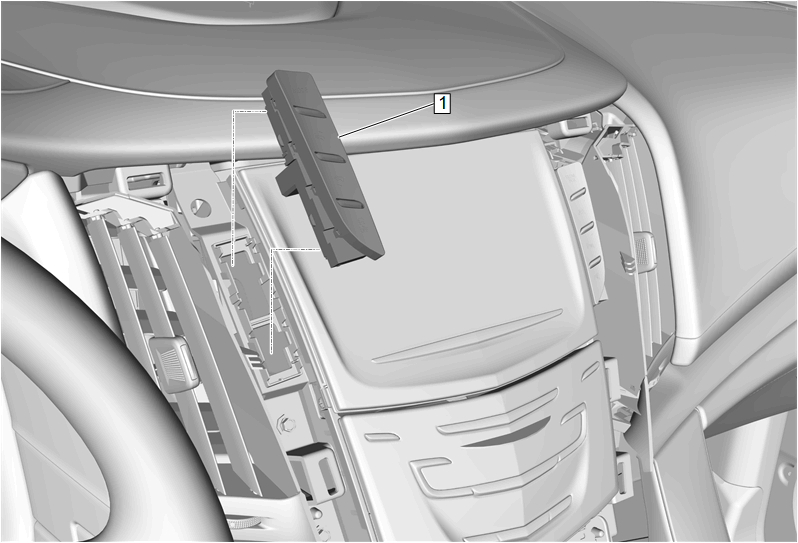

1	Vehicle Stability Control System Switch Procedure Using a flat bladed tool, release the two locking tabs on both sides of the switch. Lift the switch from the instrument panel. Disconnect the electrical connector.

Callout

Component Name

Vehicle Stability Control System Switch

Procedure

Using a flat bladed tool, release the two locking tabs on both sides of the switch.
Lift the switch from the instrument panel.
Disconnect the electrical connector.
