Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel (Cadillac)

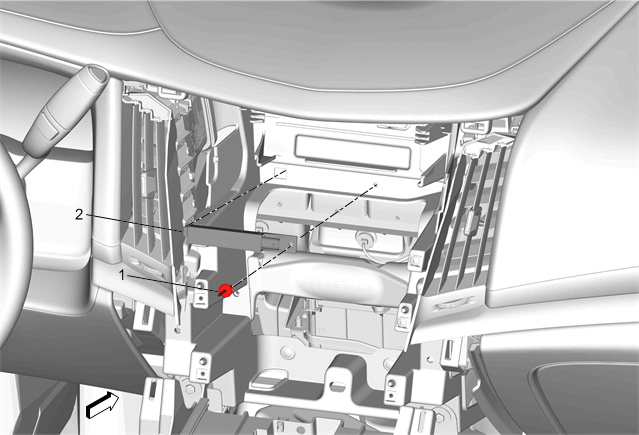

GM3802784Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Eye Protection Warning .

Preliminary Procedure Remove the radio. Refer to Radio Replacement (Cadillac with NGI)Radio Replacement (Cadillac with IOB) .
1 Ignition Lock Key Transmitter Antenna Rivet
2 Ignition Lock Key Transmitter Antenna
Procedure
Disconnect the electrical connector.
