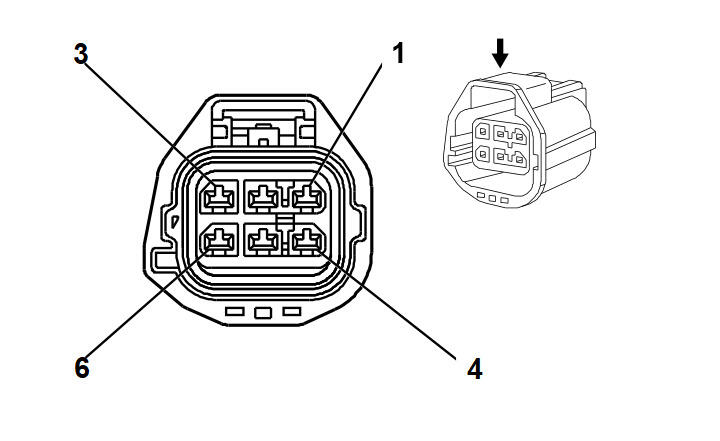

K4 Assist Step Control Module X1
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 GMC Yukon XL, 2018 GMC Yukon, 2018 Chevrolet Tahoe, 2018 Chevrolet Suburban 3500 HD, and 2018 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 13573348
- Service Connector: 19354363
- Description: 6-Way F 2.8 Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2 |
GN |
7469 |
Articulating Running Boards Motor Right Control Retract |
I |
- |
| 2 |
2.5 |
BK |
2150 |
Ground |
II |
- |
| 3 |
2 |
WH/BN |
7471 |
Articulating Running Boards Motor Left Control Extend |
I |
- |
| 4 |
2 |
BU |
7470 |
Articulating Running Boards Motor Right Control Extend |
I |
- |
| 5 |
2.5 |
RD/YE |
1142 |
Battery Positive Voltage |
II |
- |
| 6 |
2 |
GY |
7472 |
Articulating Running Boards Motor Left Control Retract |
I |
- |
