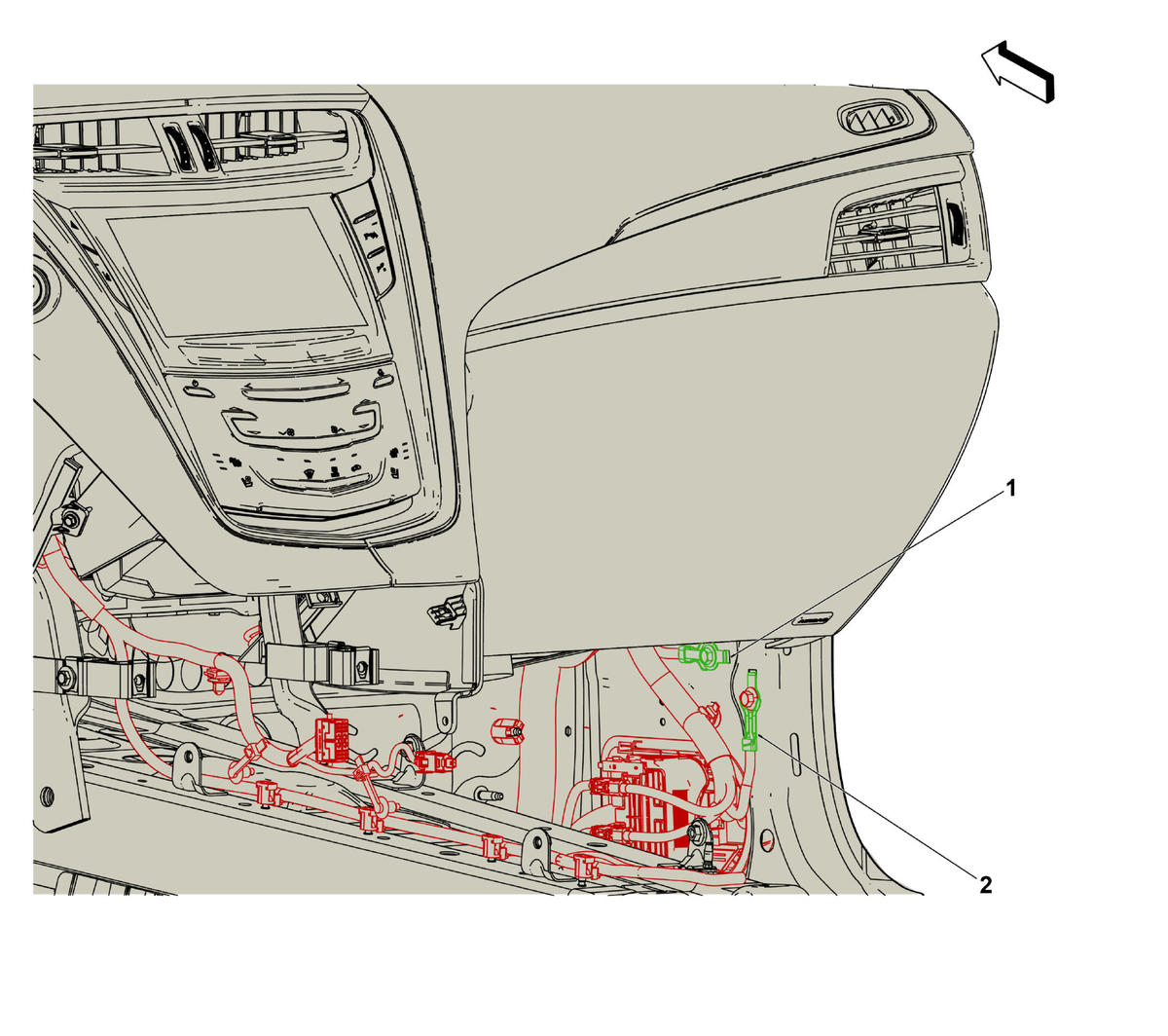

G202 and G302
Courtesy of GENERAL MOTORS COMPANY
Items
1. G302 Body Harness
2. G202 Instrument Panel Harness
Courtesy of GENERAL MOTORS COMPANY
