Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

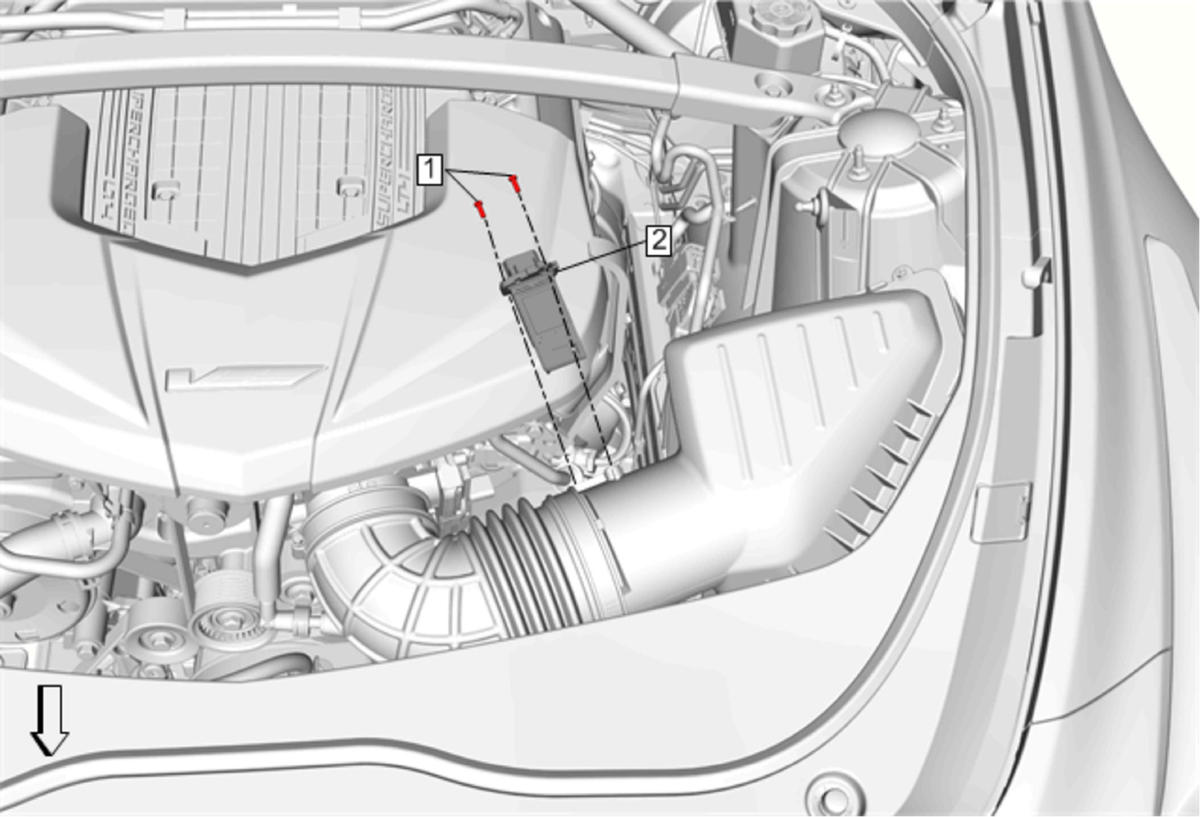

GM4072169Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mass Airflow Sensor Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
