Exhaust Control Valve Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

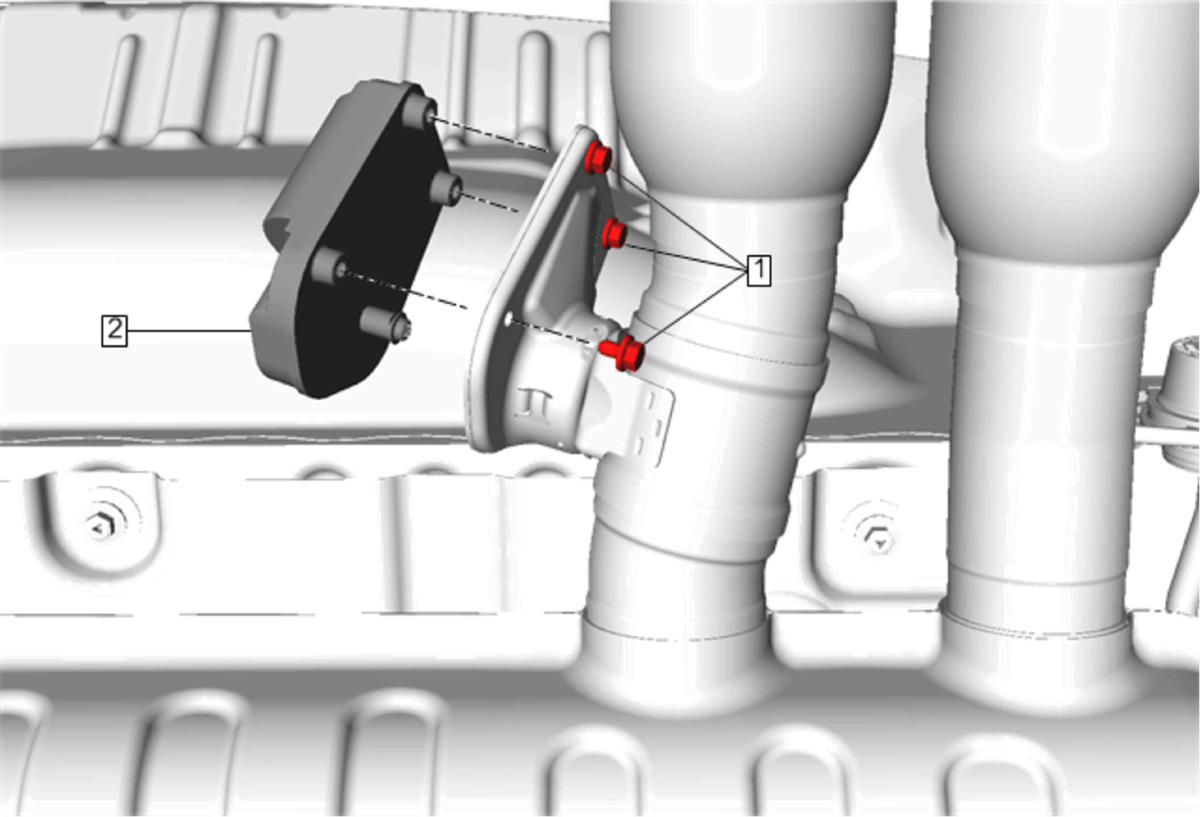

Callout	Component Name
Preliminary Procedure Lifting and Jacking the Vehicle (ATS) , or Lifting and Jacking the Vehicle (ATS-V)
1	Exhaust Control Valve Actuator Fastener [3X] CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Exhaust Control Valve Actuator Procedure Disconnect the electrical connector. Perform the exhaust flow control valve actuator re-learn procedure. Exhaust Flow Control Valve Learn

Callout

Component Name

Exhaust Control Valve Actuator Fastener [3X]

CAUTION:

Tighten
6 N.m (53 lb in)

Exhaust Control Valve Actuator

Procedure

Disconnect the electrical connector.
Perform the exhaust flow control valve actuator re-learn procedure. Exhaust Flow Control Valve Learn
