Front Seat Back Lumbar Bladder Replacement

Courtesy of GENERAL MOTORS COMPANY

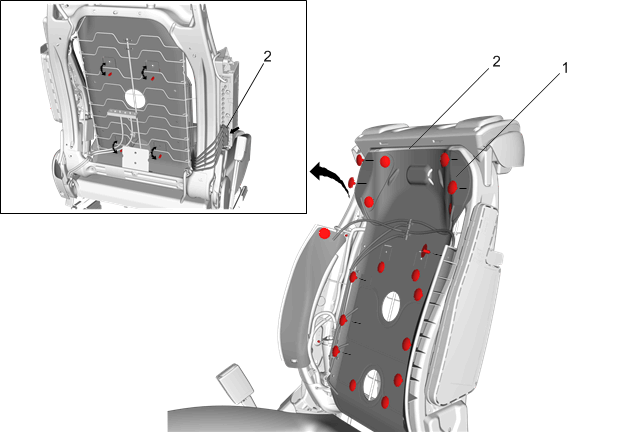

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the front seat back massage bladder. Refer to Front Seat Back Massage Bladder Replacement (AQJ) .
1	Front Seat Back Lumbar Bladder Retainers (Qty: 12) NOTE: Not all of the retainers on the Lumbar Bladder need to be removed some only hold the bladder to the felt. These will stay attached.
2	Front Seat Back Lumbar Bladder Procedure Disconnect the air supply hose assembly from the seat bolster memory module. Release the 4 tabs that fold over to attach the bladder assembly to the support wire.

Callout

Component Name

WARNING:

Preliminary Procedures

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the front seat back massage bladder. Refer to Front Seat Back Massage Bladder Replacement (AQJ) .

Front Seat Back Lumbar Bladder Retainers (Qty: 12)

NOTE:

Not all of the retainers on the Lumbar Bladder need to be removed some only hold the bladder to the felt. These will stay attached.

Front Seat Back Lumbar Bladder

Procedure

Disconnect the air supply hose assembly from the seat bolster memory module.
Release the 4 tabs that fold over to attach the bladder assembly to the support wire.
