Low Frequency Rear Compartment Antenna Replacement

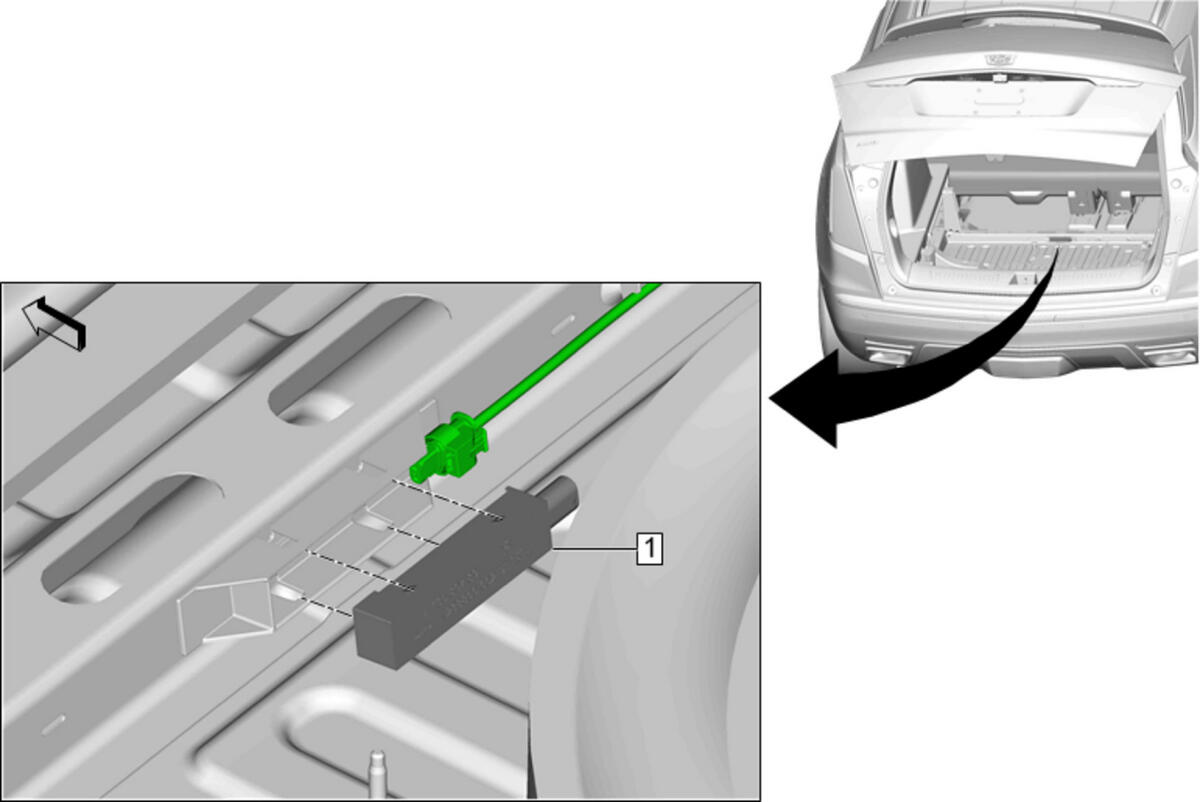

GM4291891Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Floor Stowage Compartment Divider Replacement (Without KTI)Rear Compartment Floor Stowage Compartment Divider Replacement (With KTI)
1 Low Frequency Rear Compartment Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
