Radio Antenna Amplifier Replacement

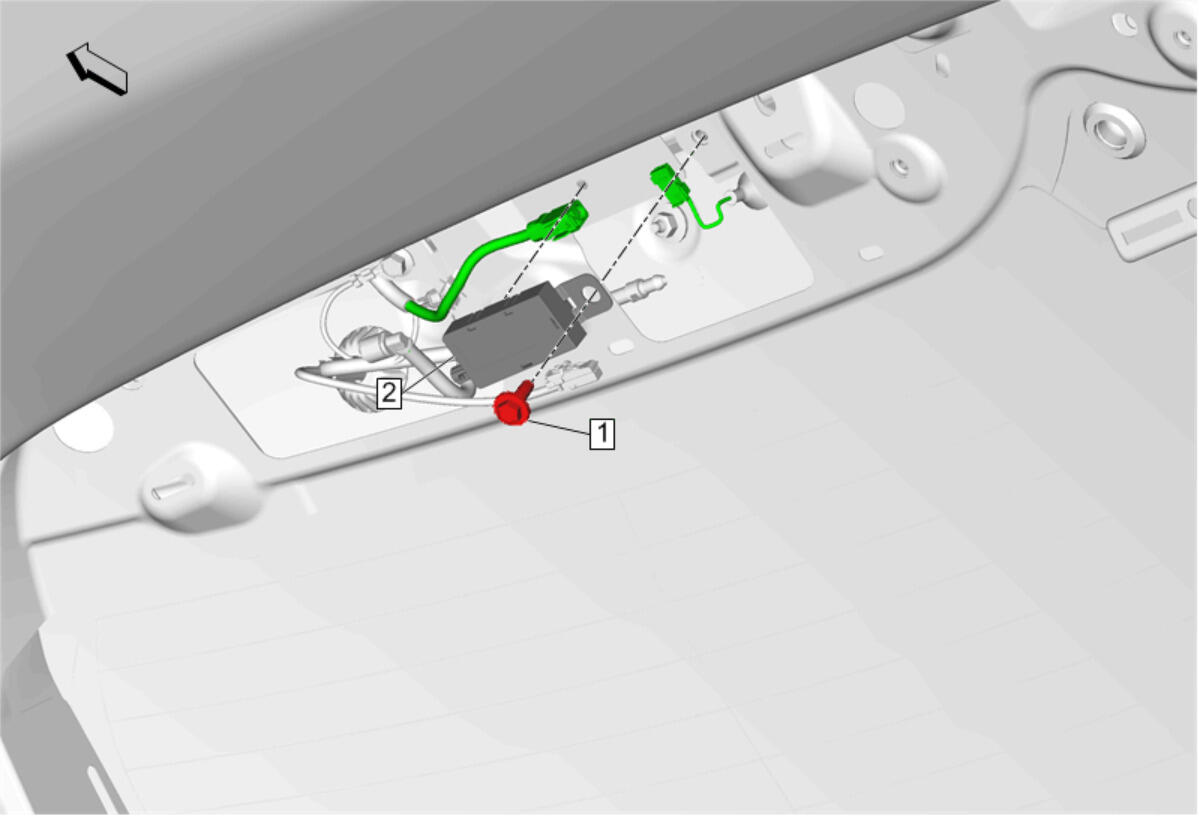

GM4286864Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Liftgate Upper Trim Finish Panel Replacement
1 Radio Antenna Module Bolt
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
2 Radio Antenna Amplifier
Procedure
Disconnect the electrical connectors.
